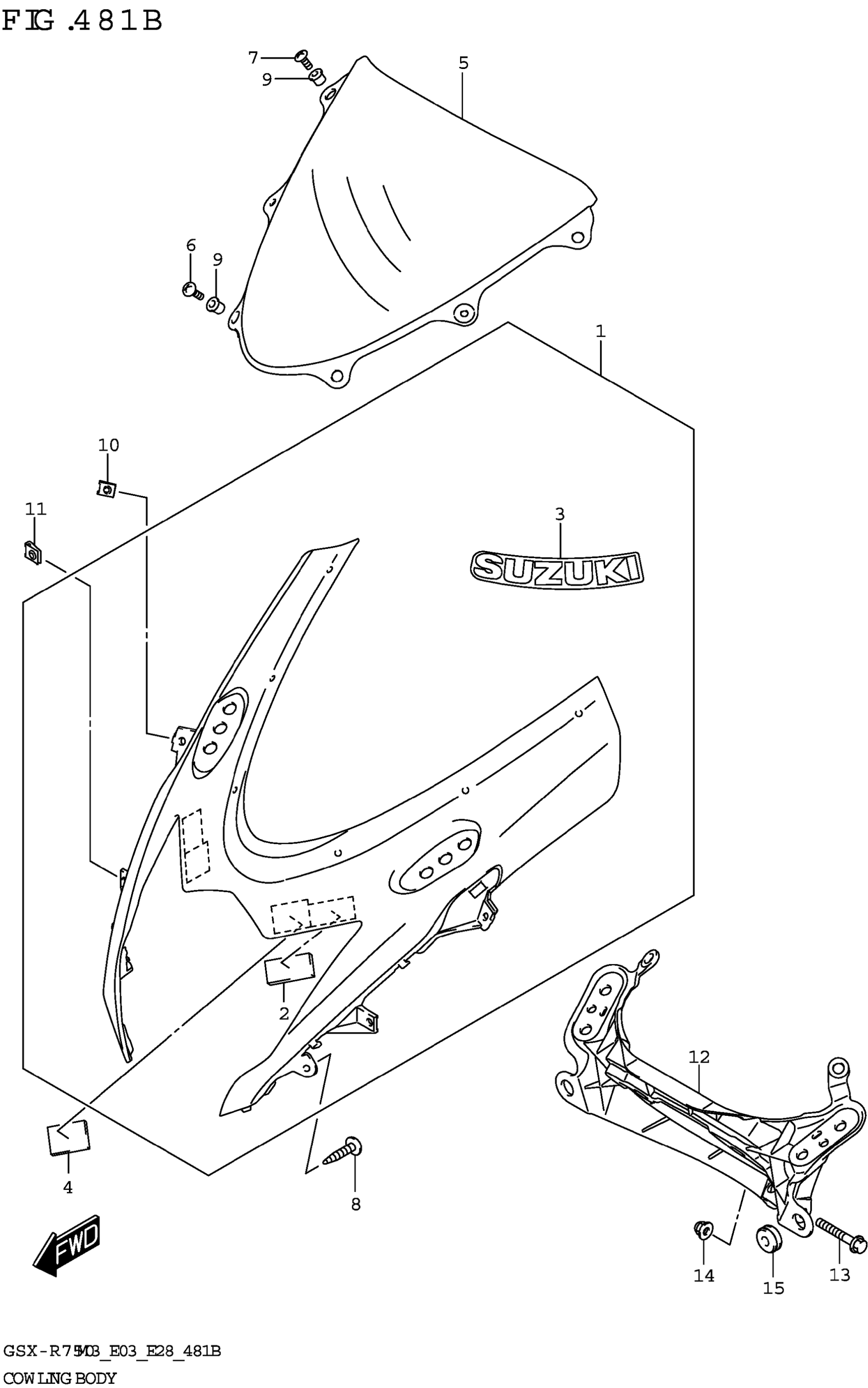

Suzuki GSX-R750M3 (2023) COWLING BODY (GSX-R750Z) Diagram

#

Description
Price

1

COWLING,BODY (BLACK)

94410-14J12-44X

$196.62

2

.CUSHION,BODY COWL (20X40X7)

92146-14J00

$4.88

3

.EMBLEM,"SUZUKI" (WHITE)

68641-19F01-YWW

$9.99

4

FASTENER (25X33X2.6)

44572-02F01

$11.07

5

WINDSCREEN

94611-14J00

$107.99

6

SCREW (5X18)

09125-05133

$2.19

7

SCREW (5X15)

09125-05134

$2.22

8

SCREW

03541-0516A

$1.49

9

NUT (M5)

09159-05019

$7.14

10

NUT (M5)

09148-05052

$3.37

11

NUT (M5)

09148-05047

$2.11

12

BRACE,COWLING

94511-14J00

$278.88

13

BOLT (8X45)

09103-08207

$2.51

14

NUT

08313-2008A

$2.50

15

CUSHION (8.5X23X9.5)

09320-08518

$2.60
