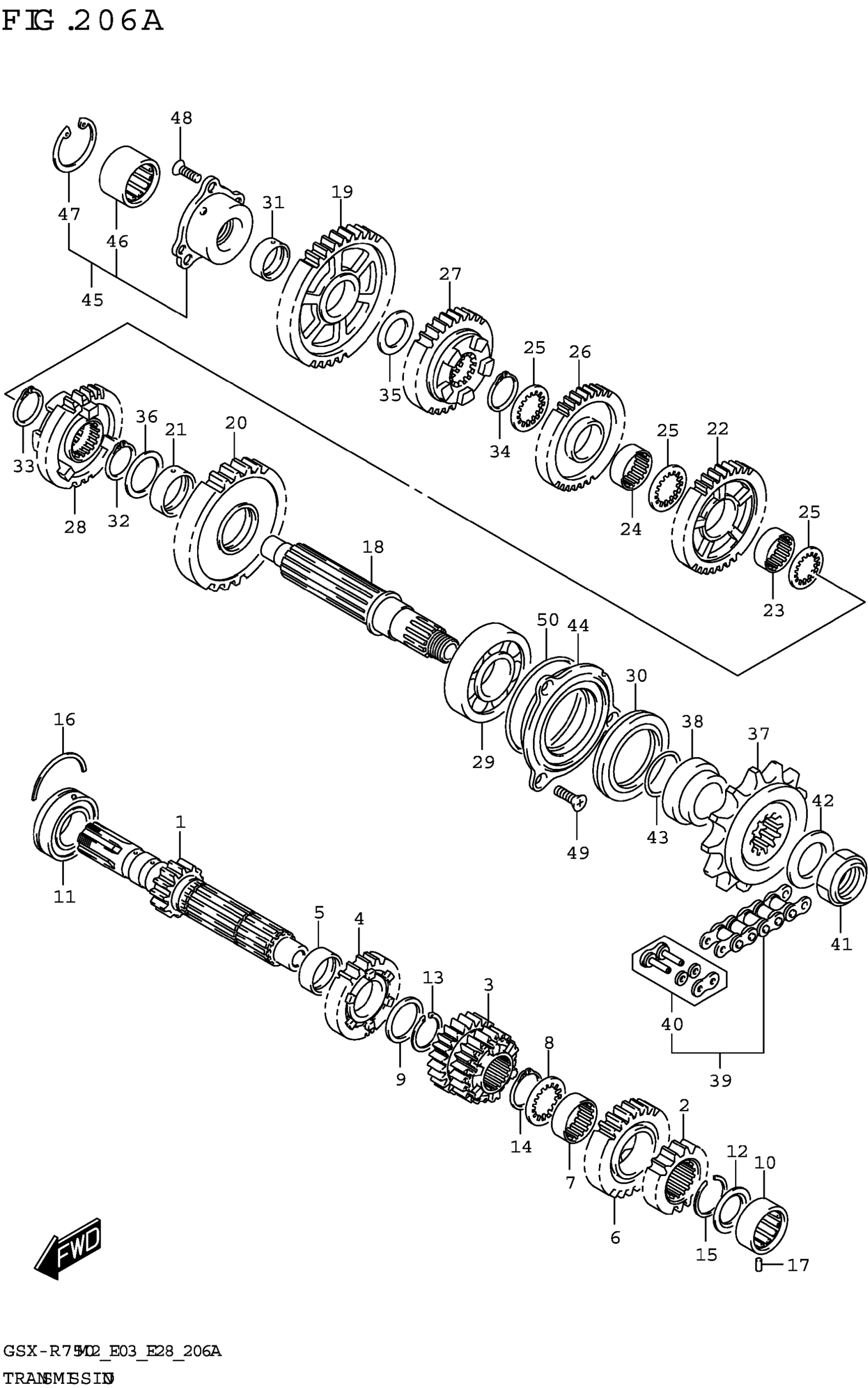

Suzuki GSX-R750M2 (2022) TRANSMISSION Diagram

#

Description
Price

1

SHAFT,CNTR (NT:14)

24120-15J00

$330.40

2

GEAR,2ND DRIVE (NT:19)

24221-35F00

$117.48

3

GEAR,3RD & 4TH DRIVE (NT:21/2 | )

24231-01H00

$179.96

4

GEAR,5TH DRIVE (NT:23)

24251-01H00

$168.55

5

BUSH,5TH DRIVE GEAR

24252-35F00

$24.72

6

GEAR,6TH DRIVEN (NT:24)

24261-01H01

$168.55

7

BUSH,6TH DRIVE GEAR

24262-35F10

$28.70

8

WASHER,LOCK (27X36X1)

09167-27001

$3.63

9

WASHER (27X36X1.0)

09160-27008

$3.68

10

BEARING (20X34X13.5)

09263-20087

$42.65

11

BEARING (25X62X17)

09262-25150

$82.62

12

SEAL,OIL (20X31.2X2.7)

09285-20006

$6.51

13

CIRCLIP

09380-27006

$2.73

14

CIRCLIP

09380-27006

$2.73

15

CIRCLIP

09380-27004

$3.70

16

C-RING

09390-62012

$7.31

17

PIN (6X10)

09261-06003

$1.49

18

SHAFT,DRIVE

24131-14J10

$206.20

19

GEAR,1ST DRIVEN (NT:39)

24311-35F20

$160.78

20

GEAR,2ND DRIVEN (NT:39)

24321-35F11

$135.95

21

BUSH,2ND DRIVEN GEAR

24322-35F00

$20.63

22

GEAR,3RD DRIVEN (NT:36)

24331-40F30

$167.85

23

BUSH,3RD DRIVEN GEAR

24332-46H00

$38.95

24

BUSH,3RD DRIVEN GEAR

24332-46H00

$38.95

25

WASHER,3RD & 4TH DRIVEN

24333-02F00

$4.99

26

GEAR,4TH DRIVEN (NT:36)

24341-40F20

$175.18

27

GEAR,5TH DRIVEN (NT:31)

24351-01H20

$171.00

28

GEAR,6TH DRIVEN (NT:29)

24361-01H00

$175.18

29

BEARING (28X68X18)

09262-28045

$104.23

30

SEAL,OIL (42X62X7)

09283-42018

$36.39

31

BUSH (22X26X9)

09300-22008

$14.82

32

CIRCLIP

09380-27006

$2.73

33

CIRCLIP

09380-27006

$2.73

34

CIRCLIP

09380-27006

$2.73

35

SHIM (22X34X1)

09181-22223

$3.12

36

WASHER (27X36X1.0)

09160-27008

$3.68

37

SPROCKET,ENGINE

27510-20A22

$78.92

38

SPACER,ENGINE SPROCKET

27531-14J00

$41.45

39

CHAIN,DRIVE (RK GB525ROZ5Y) | Y)

27600-33E40-116

$278.70

40

.JOINT SET,DRIVE CHAIN

27620-33E40

$21.10

41

NUT

09159-20004

$15.67

42

WASHER (25X41X3)

09160-25009

$5.36

43

O-RING (D:2.4,ID:23.7)

09280-24010

$5.64

44

RETAINER,DRIVE SHAFT BEARING,

24751-14J00

$119.18

45

HOUSING,DRIVE SHAFT SET

24771-01810

$166.88

46

BEARING (20X34X17.5)

09263-20069

$52.12

47

CIRCLIP

08331-41349

$2.73

48

SCREW (6X20)

09139-06159

$4.10

49

SCREW (6X20)

09139-06159

$4.10

50

O-RING (D:1.8,ID:67.5)

09280-68010

$14.18
