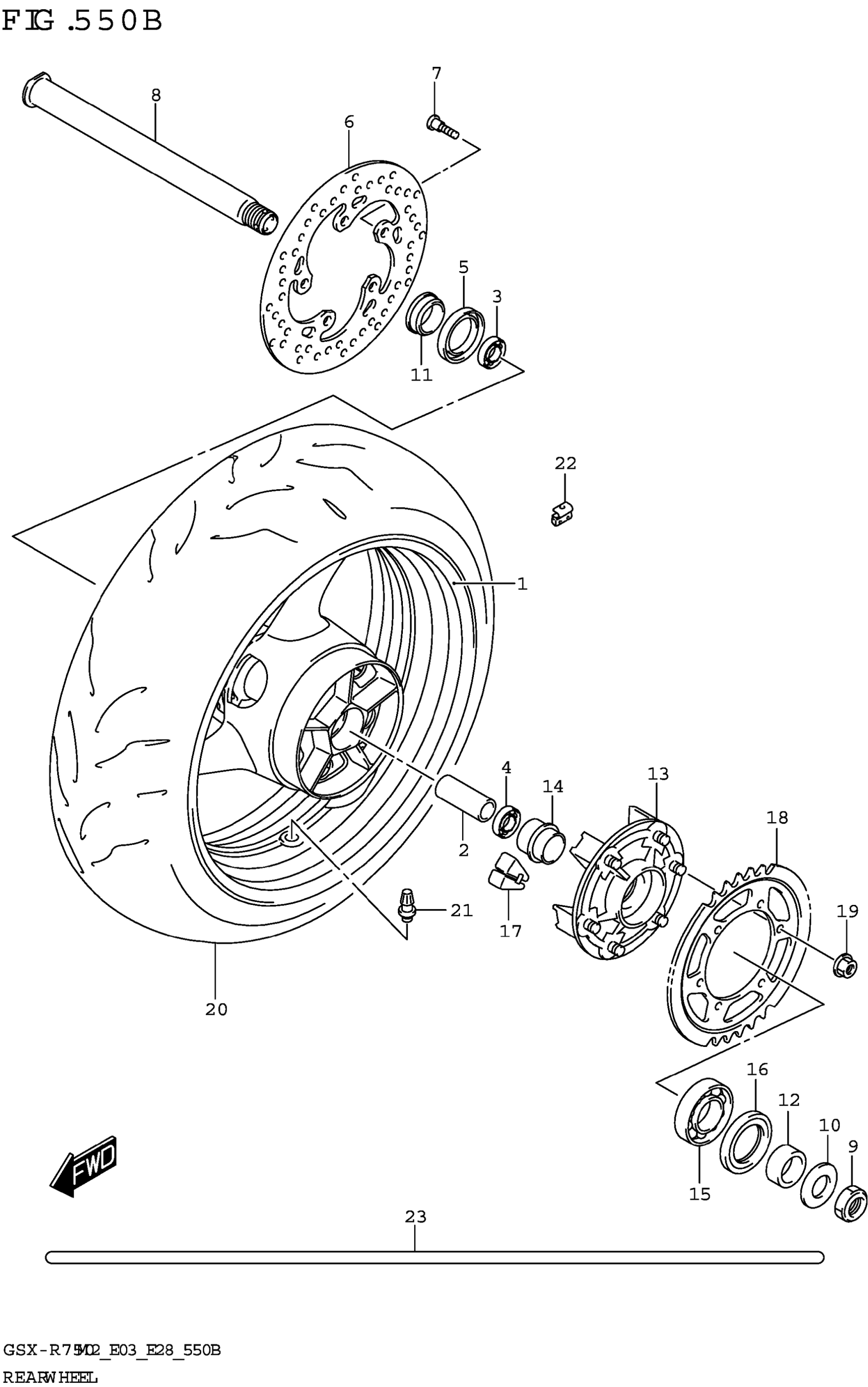

Suzuki GSX-R750M2 (2022) REAR WHEEL (GSX-R750:(E03,E28,E33)) Diagram

#

Description
Price

1

WHEEL,REAR (17M/CXMT5.50,BLAC | )

64111-14J00-019

$1,306.10

2

SPACER,RR WHEEL BEARING

64731-14J00

$40.10

3

BEARING

08123-6205B

$25.93

4

BEARING

08123-6005B

$23.53

5

.SEAL,OIL (32X52X7)

09285-32004

$7.98

6

DISC,RR BRAKE

69211-18G00

$319.08

7

BOLT (8X21)

09106-08160

$3.57

8

AXLE,RR

64711-14J00

$97.50

9

NUT

64721-13K00

$12.61

10

WASHER (22X35X2)

09160-22081

$3.04

11

SPACER,FR AXLE,R

54751-41G10

$19.66

12

SPACER,RR AXLE,L

64751-44G00

$35.17

13

DRUM,RR SPROCKET

64610-47H00

$313.78

14

RETAINER,RR SPROCKET DRUM

64733-44G00

$29.15

15

BEARING (32X65X17)

09262-32024

$39.40

16

SEAL,OIL (39X65X7)

09285-39001

$10.62

17

ABSORBER,RR HUB SHOCK

64651-47H10

$25.52

18

SPROCKET,RR (45T-525)

64511-15J00

$144.77

19

NUT

08319-3110A

$2.73

20

TIRE,REAR (180/55ZR17M/C, 73W

65110-15J00

$725.63

21

VALVE ASSY,WHEEL RIM (TR412)

43130-24A00

$8.85

22-1

BALANCER,WHEEL (10G)

55411-22H00

$8.60

22-2

BALANCER,WHEEL (20G)

55412-22H00

$10.07

22-3

BALANCER,WHEEL (30G)

55413-22H00

$11.47

23-1

TAPE,WHEEL (ORANGE,BLACK)

68251-14J10-B86

$47.73

23-2

TAPE,WHEEL (YELLOW/BLACK)

68251-14J10-GY8

$45.55
