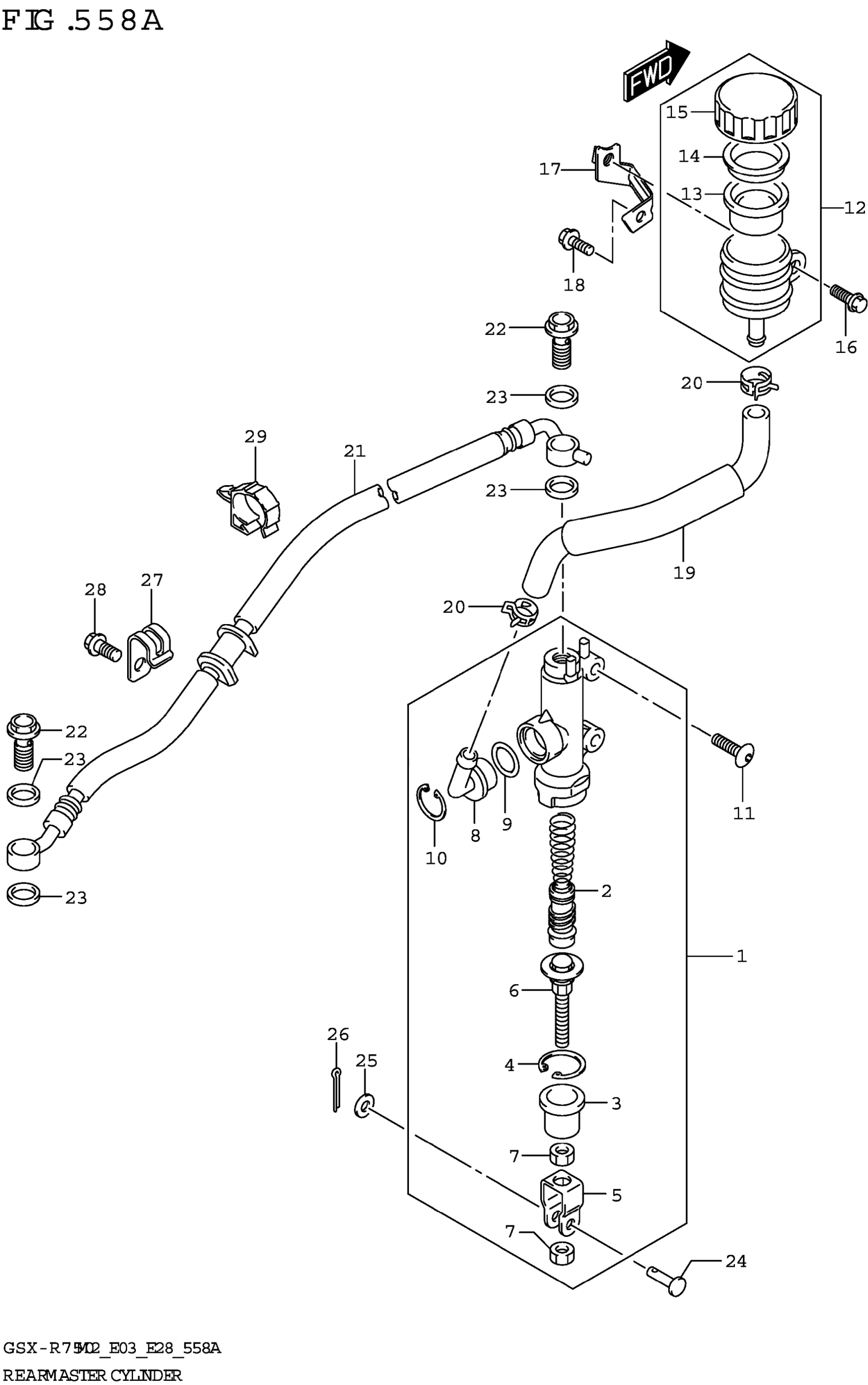

Suzuki GSX-R750M2 (2022) REAR MASTER CYLINDER Diagram

#

Description
Price

1

CYLINDER ASSY,REAR MASTER

69600-47H31

$222.47

2

.PISTON/CUP SET

69600-34810

$56.48

3

.BOOT

69691-04A00

$5.17

4

.CIRCLIP

69665-47H00

$5.02

5

.YOKE

69692-47H00

$11.87

6

.ROD,PUSH

69670-17K00

$17.32

7

.NUT

69693-47H00

$2.48

8

.CONNECTOR

69672-00B20

$7.01

9

.O-RING

69686-34200

$2.93

10

.CIRCLIP

69674-00B20

$3.97

11

SCREW (6X20)

09139-06125

$2.93

12

TANK ASSY,RR RESERVOIR

69740-47H00

$80.02

13

.DIAPHRAGM

69667-00B20

$15.68

14

.PLATE

69668-00B20

$7.67

15

.CAP

69669-47H00

$8.60

16

BOLT

01547-0616A

$2.03

17

BRACKET,RR RESERVOIR TANK

69750-14J00

$11.78

18

BOLT

01547-0612A

$2.03

19

HOSE,RR RESERVOIR TANK

69730-14J00

$30.22

20

CLIP (ID:12)

09401-12404

$2.34

21

HOSE

69480-14J01

$89.07

22

UNION (10X1.25X22)

09360-10062

$6.43

23

WASHER (10X15X1.5)

09161-10009

$1.84

24

PIN (6X18.2)

09200-06068

$4.11

25

WASHER

08322-0106A

$1.84

26

PIN

04111-2015A

$1.49

27

CLAMP,RR BRAKE HOSE

69268-21H00

$7.73

28

BOLT

01547-0612A

$2.03

29

CLAMP

09403-17306

$2.62
