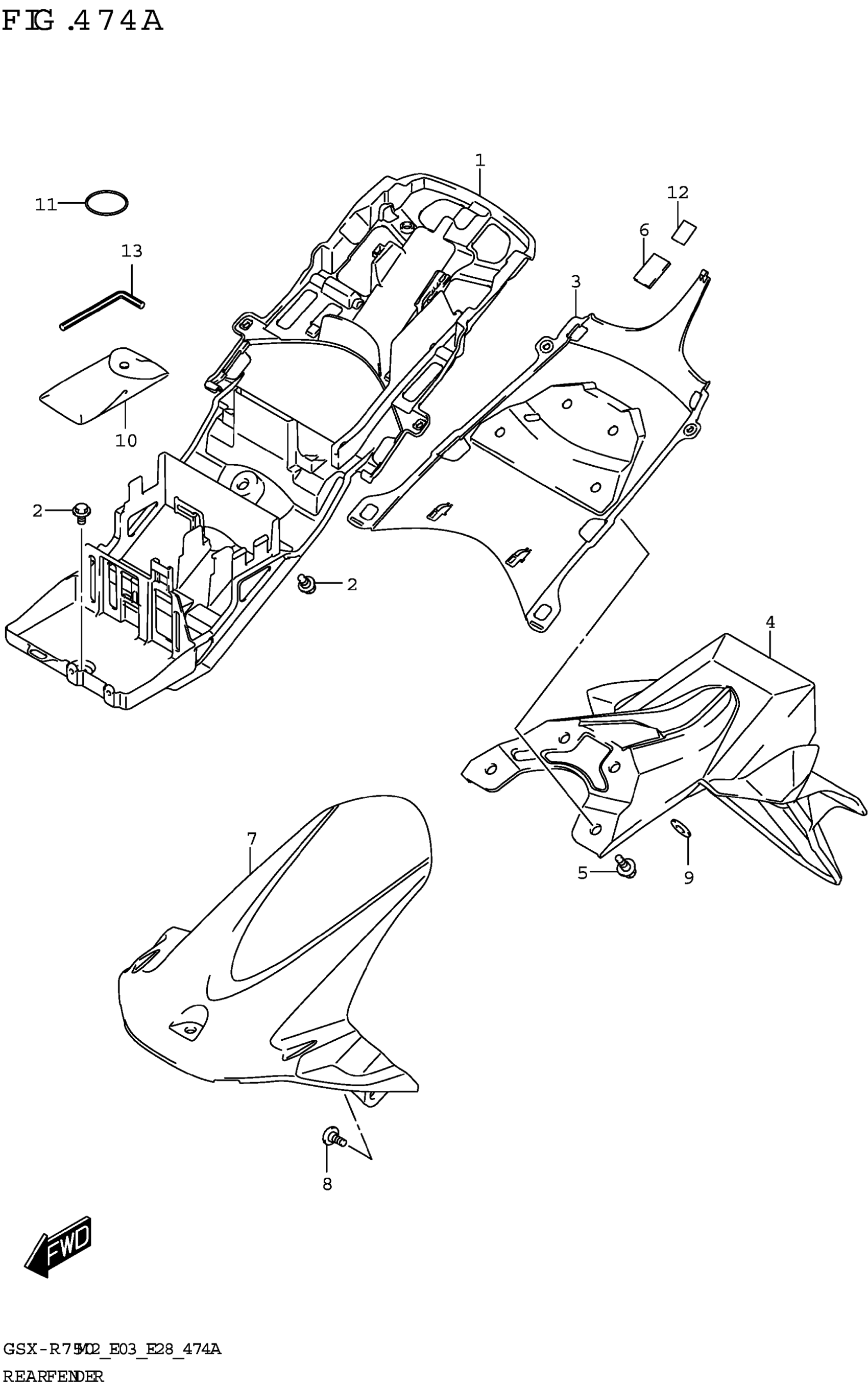

Suzuki GSX-R750M2 (2022) REAR FENDER Diagram

#

Description
Price

1

FENDER,RR FR

63111-14J00

$136.15

2

BOLT (6X12)

09111-06107

$2.60

3

COVER,RR FENDER FR This part replaces 63112-14J01.

63112-14J10

$40.70

4

FENDER,RR RR

63113-14J01

$113.78

5

BOLT (6X17.8)

09111-06072

$2.03

6

CUSHION (20X30X2)

44556-33H00

$7.66

7

FENDER,RR LWR

63114-14J01

$54.18

8

SCREW (6X16)

09139-06158

$4.90

9

WASHER (6.5X20X1.2)

09160-06077

$1.91

10

TOOL ASSY

09800-21100

$40.80

11

O-RING (D:3.5,ID:56.5)

09280-57003

Unavailable

12

FASTENER,COWLING (20X15X0.8)

44572-37H00

$9.83

13

SPANNER,HEXAGON (5)

09816-00059

$8.45
