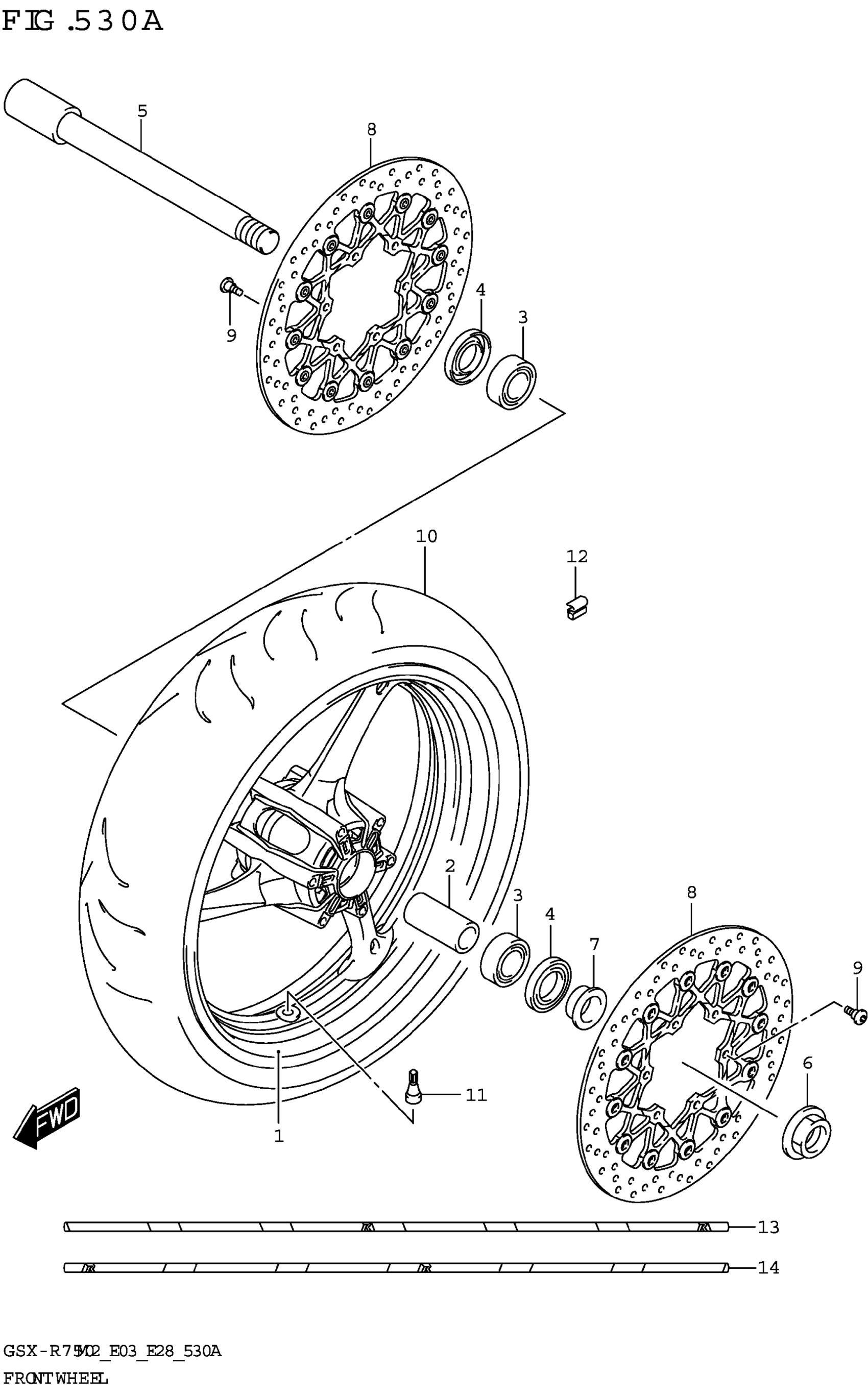

Suzuki GSX-R750M2 (2022) FRONT WHEEL (GSX-R750Z:(E03,E28,E33)) Diagram

WHEEL,FRONT (17M/CXMT3.50,BLA

54111-14J00-019

$978.60

SPACER,FR HUB BEARING

54731-14J00

$21.58

BEARING

09262-22049

$43.81

SEAL,OIL

09283-28028

$9.13

AXLE,FR

54711-14J00

$143.18

NUT,RR SHOCK ABS BRACKET

62994-47H00

$42.02

SPACER,FR AXLE,L

54751-14J00

$18.33

DISC,FR BRAKE

59210-37H01

$477.18

BOLT (6X21)

09106-06124

$3.42

TIRE,FRONT (120/70ZR17M/C, 58 | )

55110-15J00

$509.50

VALVE ASSY,WHEEL RIM (TR412)

43130-24A00

$8.85

BALANCER,WHEEL (10G)

55411-22H00

$8.60

BALANCER,WHEEL (20G)

55412-22H00

$10.07

BALANCER,WHEEL (30G)

55413-22H00

$11.47

TAPE,WHEEL,R (YELLOW,BLACK)

68251-17K20-G7Z

$66.38

TAPE,WHEEL,L (YELLOW,BLACK)

68252-17K20-G7Z

$66.38
