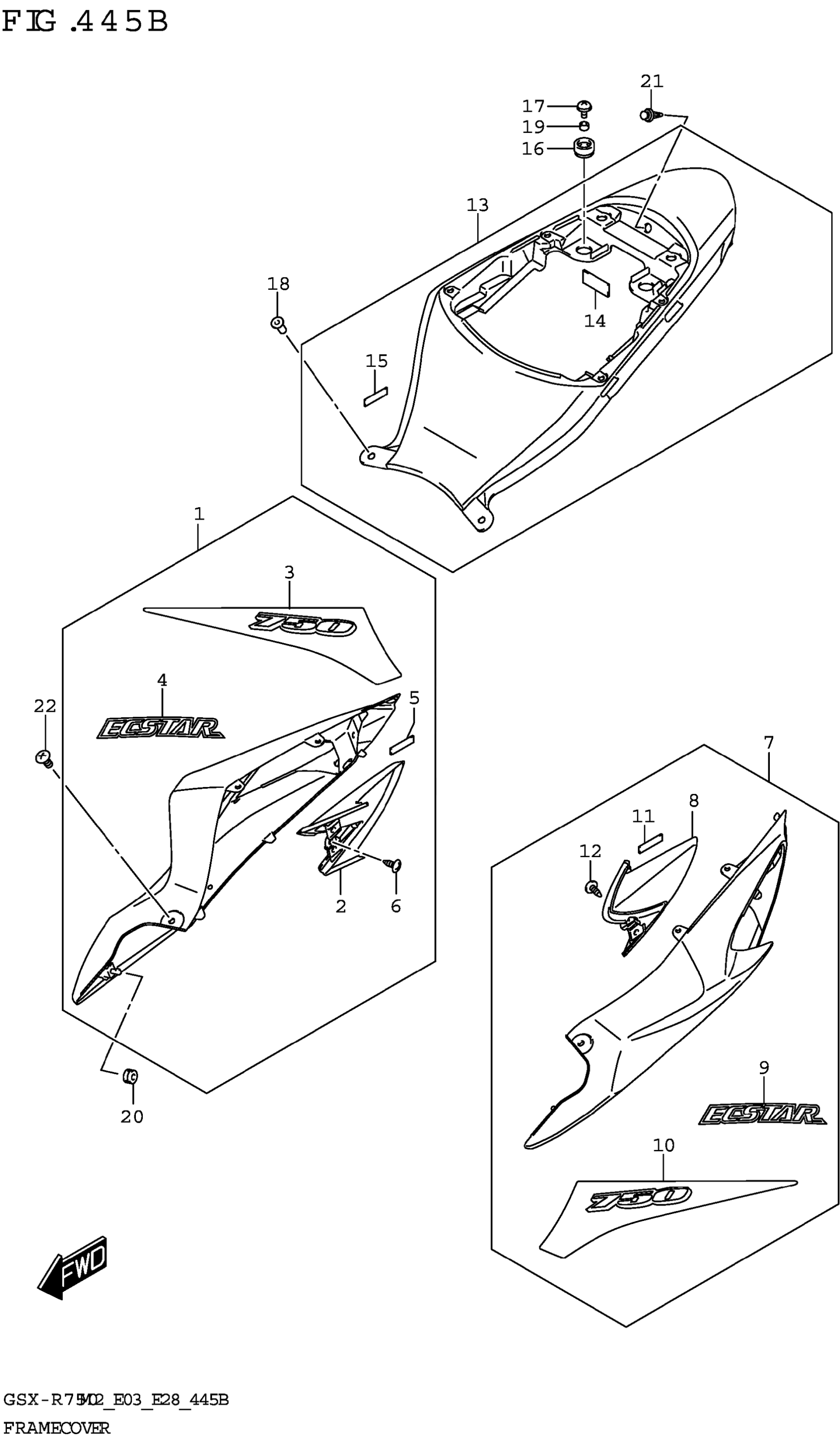

Suzuki GSX-R750M2 (2022) FRAME COVER (GSX-R750Z) Diagram

#

Description
Price

1

COVER ASSY,FRAME,R (SILVER)

47100-15J60-YMD

$111.52

2

COVER,FRAME RR,R

47611-14J00

$18.97

3

.TAPE,FRAME COVER,R (ORANGE,S | LVER,BLACK,BLUE)

68135-15J40-BW8

$20.32

4

.EMBLEM,FRAME COVER,R (BLUE,W | ITE,SILVER)

68131-14J10-B54

$11.77

5

TAPE (6X25X0.13)

94443-06G00

$3.25

6

SCREW

03541-0512A

$1.49

7

COVER ASSY,FRAME,L (SILVER)

47200-15J60-YMD

$111.52

8

COVER,FRAME RR,L

47621-14J00

$19.07

9

.EMBLEM,FRAME COVER,L (BLUE,W | ITE,SILVER)

68141-14J10-B54

$11.77

10

.TAPE,FRAME COVER,L (ORANGE,S | LVER,BLACK,BLUE)

68145-15J40-BW8

$20.32

11

TAPE (6X25X0.13)

94443-06G00

$3.25

12

SCREW

03541-0512A

$1.49

13

COVER ASSY,FRAME CTR This part replaces 47300-14J01.

47300-14J10

$97.78

14

CUSHION (10X24X1)

48128-14FA0

$6.47

15

TAPE (6X25X0.13)

94443-06G00

$3.25

16

CUSHION (10X24X13)

47312-37H10

$2.91

17

SCREW (6X16)

09136-06056

$2.19

18

NUT (M5)

09159-05019

$7.14

19

SPACER (6.5X10X7)

09180-06283

$1.91

20

CUSHION (6X18X6)

09320-06504

$4.96

21

CLIP This part replaces 09409-06314.

09409-06314-5PK

$2.78

22

SCREW

02142-1520B

$2.28
