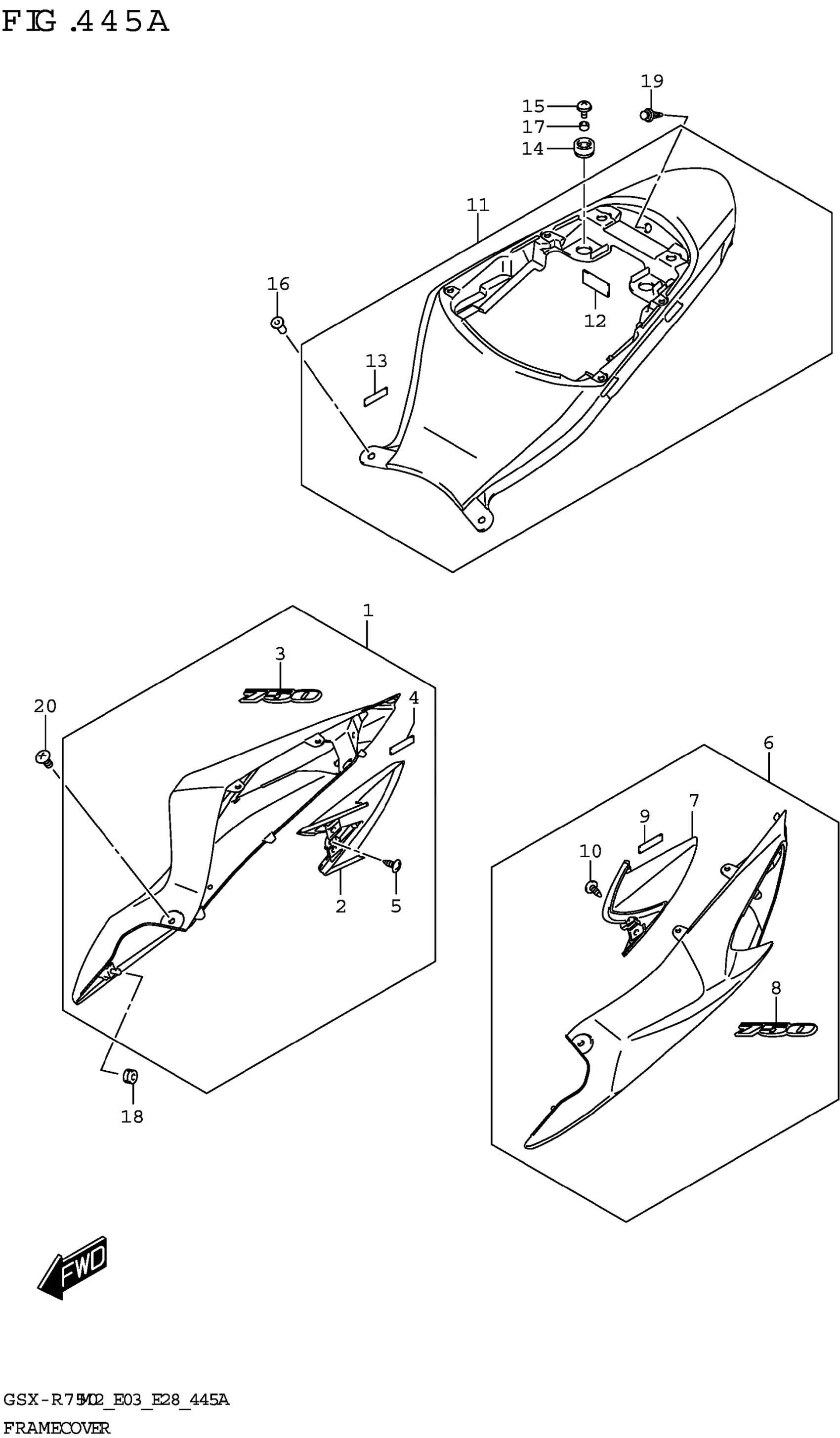

Suzuki GSX-R750M2 (2022) FRAME COVER (GSX-R750) Diagram

#

Description
Price

1-1

COVER ASSY,FRAME,R (ORANGE) | BODY COLOR:B9E

47100-15J10-QRE

$111.52

1-2

COVER ASSY,FRAME,R (GRAY) | BODY COLOR:CFS

47100-15J10-QT7

$111.52

2

COVER,FRAME RR,R

47611-14J00

$18.97

3-1

.EMBLEM,"750" (ORANGE,BLACK) | BODY COLOR:B9E

68131-15J00-B86

$9.43

3-2

.EMBLEM,"750" (BLACK,GRAY) | BODY COLOR:CFS

68131-15J00-CGA

$9.43

4

TAPE (6X25X0.13)

94443-06G00

$3.25

5

SCREW

03541-0512A

$1.49

6-1

COVER ASSY,FRAME,L (ORANGE) | BODY COLOR:B9E

47200-15J10-QRE

$111.52

6-2

COVER ASSY,FRAME,L (GRAY) | BODY COLOR:CFS

47200-15J10-QT7

$111.52

7

COVER,FRAME RR,L

47621-14J00

$19.07

8-1

.EMBLEM,"750" (ORANGE,BLACK) | BODY COLOR:B9E

68131-15J00-B86

$9.43

8-2

.EMBLEM,"750" (BLACK,GRAY) | BODY COLOR:CFS

68131-15J00-CGA

$9.43

9

TAPE (6X25X0.13)

94443-06G00

$3.25

10

SCREW

03541-0512A

$1.49

11

COVER ASSY,FRAME CTR This part replaces 47300-14J01.

47300-14J10

$97.78

12

CUSHION (10X24X1)

48128-14FA0

$6.47

13

TAPE (6X25X0.13)

94443-06G00

$3.25

14

CUSHION (10X24X13)

47312-37H10

$2.91

15

SCREW (6X16)

09136-06056

$2.19

16

NUT (M5)

09159-05019

$7.14

17

SPACER (6.5X10X7)

09180-06283

$1.91

18

CUSHION (6X18X6)

09320-06504

$4.96

19

CLIP This part replaces 09409-06314.

09409-06314-5PK

$2.78

20

SCREW

02142-1520B

$2.28
