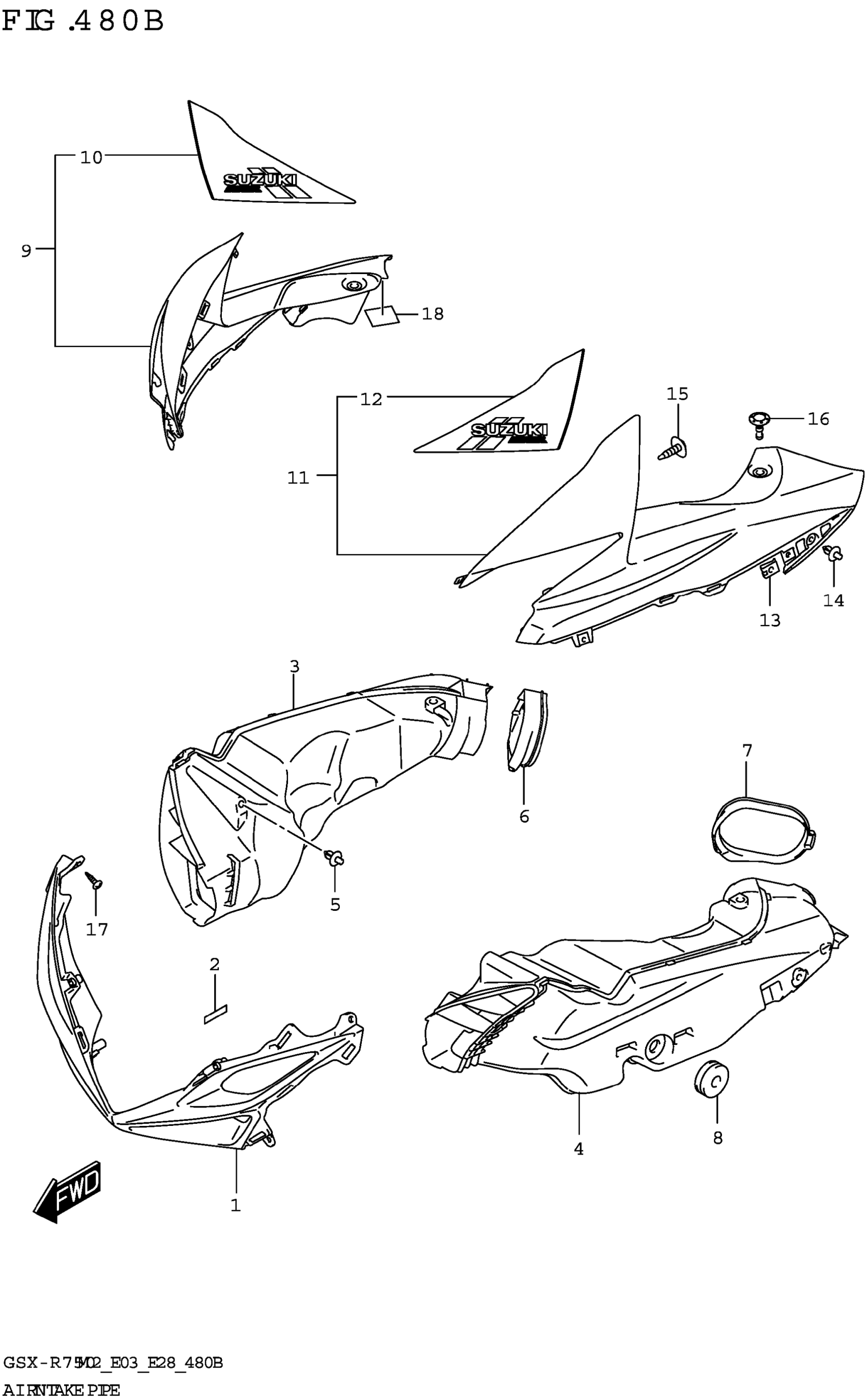

Suzuki GSX-R750M2 (2022) AIR INTAKE PIPE (GSX-R750Z) Diagram

#

Description
Price

1

COVER, INTAKE FRONT (BLUE)

94671-14J10-YSF

$257.26

2

TAPE (6X25X0.13)

94443-06G00

$3.11

3

PIPE,AIR INTAKE,R

94420-14J10

$82.30

4

PIPE,AIR INTAKE,L

94430-14J10

$79.61

5

CLIP This part replaces 09409-06314.

09409-06314-5PK

$2.80

6

MOLDING,AIR INTAKE,R

94423-14J00

$13.73

7

MOLDING,AIR INTAKE,L

94433-14J00

$13.73

8

CUSHION (8X26X7)

09320-08028

$2.82

9

COVER,INTAKE,R (BLACK)

94670-14J60-YVB

$156.38

10

.TAPE,INTAKE COVER,R (WHITE,Y | LLOW,BLUE)

68275-14J40-BR9

$20.30

11

COVER,INTAKE,L (BLACK)

94680-14J60-YVB

$156.38

12

.TAPE,INTAKE COVER,L (WHITE,Y | LLOW,BLUE)

68285-14J40-BR9

$20.30

13

NUT (M5)

09148-05052

$3.13

14

CLIP This part replaces 09409-06314.

09409-06314-5PK

$2.80

15

SCREW (5X12)

09132-05050

$1.89

16

CLIP

94479-35F00

$5.38

17

SCREW

03541-0512A

$1.41

18

PROTECTOR (30X80X1.0) This part replaces 33652-13E00.

33652-29F00

$2.91
