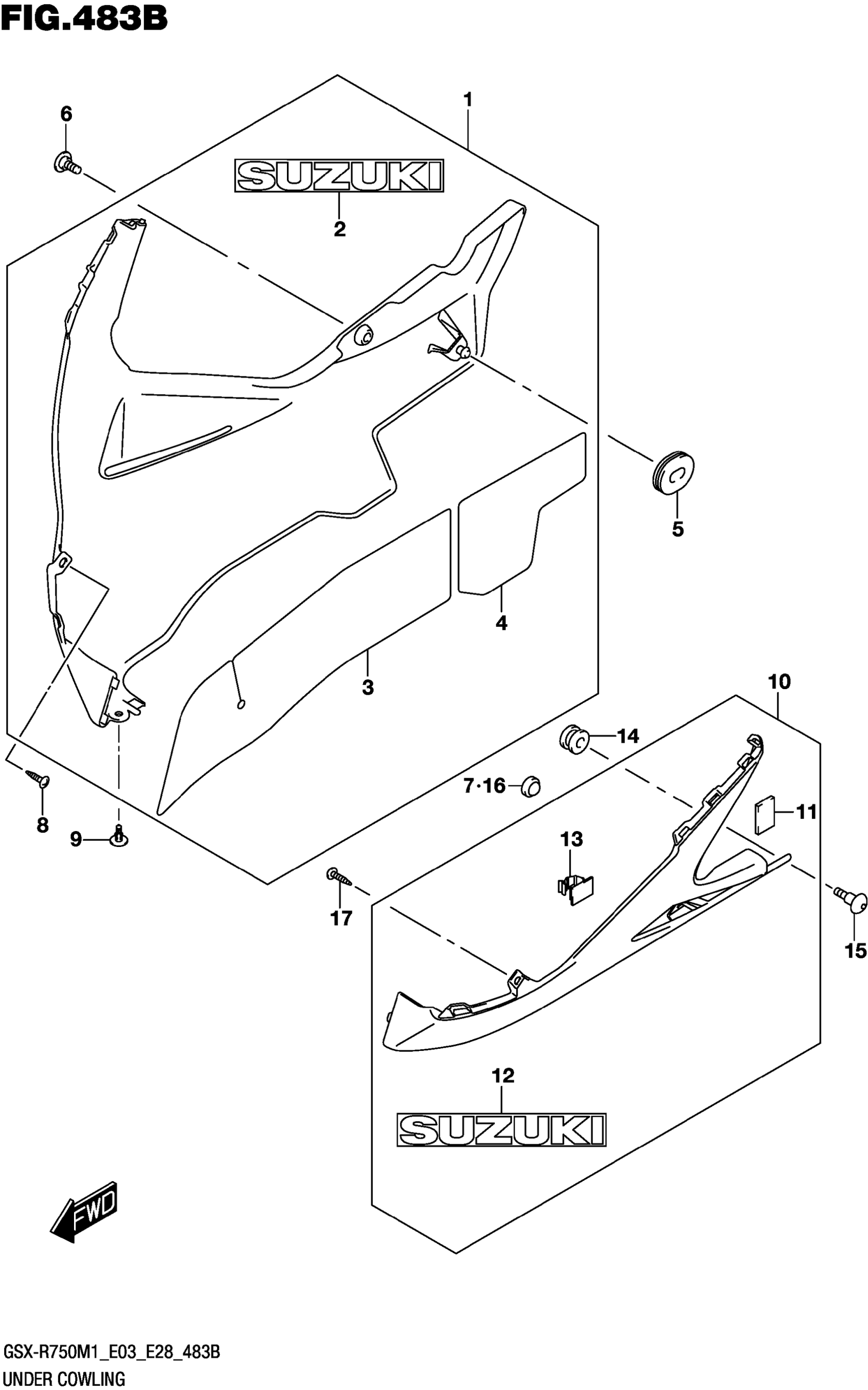

Suzuki GSX-R750M1 (2021) UNDER COWLING (GSX-R750) Diagram

#

Description
Price

1-1

COWLING,UNDER RH (GRAY) | BODY COLOR:QEB

94470-14J00-QEB

$324.13

1-2

COWLING,UNDER,R (WHITE) | BODY COLOR:YUH

94470-14J00-YUH

$346.12

2-1

.EMBLEM,SUZUKI (BLACK) | BODY COLOR:QEB

68181-33C20-019

$24.48

2-2

.EMBLEM,"SUZUKI",R (GRAY) | BODY COLOR:YUH

68181-33C20-QEB

$23.32

3

.SHIELD,UNDER COWL HEAT,R

94479-14J00

$18.62

4

.SHIELD,UNDER COWL HEAT,R

94479-14J10

$17.20

5

CUSHION

94478-14J00

$5.42

6

SCREW,UNDER COWL,R (5X13)

94476-14J00

$4.11

7

CUSHION

09321-10018

$4.19

8

SCREW

03541-0512A

$1.37

9

CLIP

94479-35F00

$5.14

10-1

COWLING,UNDER,L (GRAY) | BODY COLOR:QEB

94480-14J01-QEB

$305.08

10-2

COWLING,UNDER,L (WHITE) | BODY COLOR:YUH

94480-14J01-YUH

$294.68

11

.CUSHION,BRACKET NO.1

47161-10FA1

$5.43

12-1

.EMBLEM,SUZUKI (BLACK) | BODY COLOR:QEB

68181-33C20-019

$24.48

12-2

.EMBLEM,"SUZUKI",R (GRAY) | BODY COLOR:YUH

68181-33C20-QEB

$23.32

13

.CLAMP

09403-14311

$4.88

14

CUSHION (9X18X9.5)

09320-09016

$1.97

15

SCREW (6X20)

09139-06190

$3.77

16

CUSHION

09321-10018

$4.19

17

SCREW

03541-0512A

$1.37
