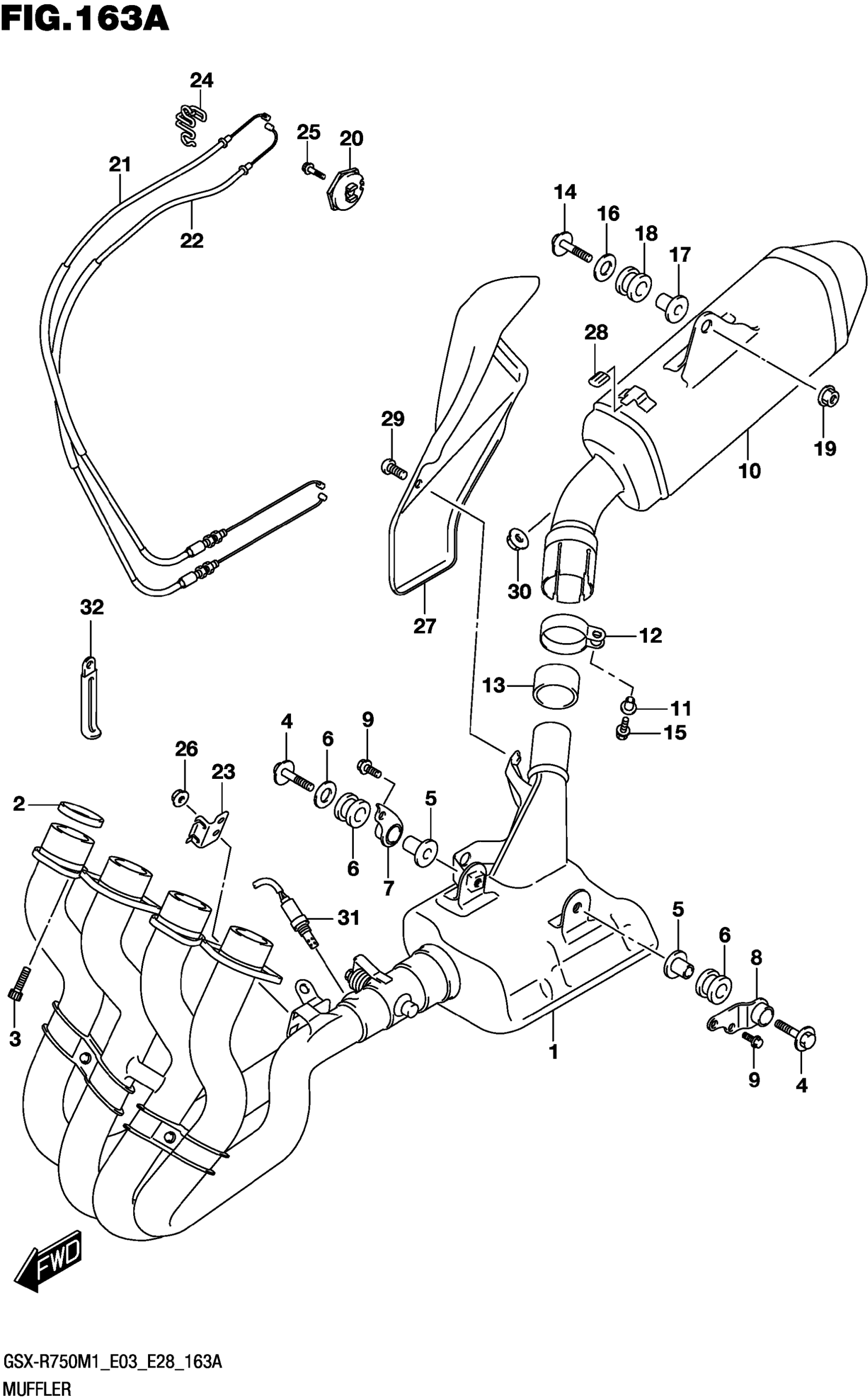

Suzuki GSX-R750M1 (2021) MUFFLER Diagram

#

Description
Price

1

EXHAUST

14100-15J00

$2,321.98

2

.GASKET,EXHAUST

14181-46E10

$7.22

3

BOLT

07130-0825A

$3.04

4

BOLT (8X45)

09118-08152-A05

$5.24

5

SPACER (8.6X12X24.2)

09180-08152

$5.83

6

CUSHION (12X30X24)

09320-12077

$11.78

7

BRACKET,CHAMBER SPRT,R

14770-14J00

$18.08

8

BRACKET,CHAMBER SPRT,L

14773-14J00

$19.67

9

BOLT (8X16)

01550-0816A

$2.32

10

BODY,MUFFLER | VER)

14310-15J00-H01

$2,217.95

11

SPACER,MUF CLAMP

14458-14J00

$7.37

12

CLAMP,MUF CONN

14459-21H40

$22.09

13

CONNECTOR,MUF

14771-42F10

$23.13

14

BOLT (8X45)

09103-08358

$3.42

15

BOLT (8X40)

09103-08392

$3.62

16

WASHER (8.5X28X1.5)

09160-08142

$2.76

17

SPACER (8.6X12X24.2)

09180-08152

$5.83

18

CUSHION (12X30X24)

09320-12048

$5.11

19

NUT

08361-2508A

$1.97

20

PULLEY,CONTROLLER

11269-18G01

$28.78

21

CABLE,EXH VALVE NO.1

11276-14J00

$79.22

22

CABLE,EXH VALVE NO.2

11277-14J00

$79.22

23

BRACKET,EXHAUST VALVE CABLE

14250-21H00

$9.90

24

GUIDE,EXHAUST VALVE CABLE

14252-14J00

$7.37

25

BOLT

01547-0516A

$1.55

26

NUT (6X12)

08316-1006A

$2.19

27

COVER,MUFFLER FR

14780-14J00

$273.28

28

GROMMET

14795-10FA0

$5.58

29

SCREW (6X10)

09139-06172

$3.04

30

CUSHION (8.4X18X6)

09320-08066

$8.24

31

SENSOR,OXYGEN

18213-23H01

$395.90

32

CLAMP (L:45)

09404-06429

$1.83
