Description

Price

1

TANK ASSY,FUEL (BLUE)

44100-14J32-YSF

$1,609.65

2

CAP SET,FUEL TA This part replaces 44200-16851.

44200-16852

$108.21

3

BOLT,FUEL TANK FILLER CAP

44244-11J00

$3.76

4

SHIELD,FUEL TANK HEAT

44191-14J00

$104.63

5

SCREW,FUEL TANK RR BRACKET

44543-14J00

$7.95

6

FASTENER (33X25X2.6)

44572-13G00

$10.13

7

CUSHION (8X18X14)

09320-08071

$3.05

8

CUSHION,FUEL TANK COVER

44276-21H01

$5.46

9

CUSHION,FUEL TANK RR

44542-41G00

$7.04

10

BRACKET,FUEL TANK

44530-41G01

$45.77

11

RUBBER,FUEL TANK FR

44546-44H00

$15.07

12

CUSHION,FUEL TANK FRONT

44511-16G01

$3.77

13

SPACER,FUEL TANK FR

44512-16G00

$6.80

14

SCREW (6X25)

09139-06192

$2.92

15

WASHER This part replaces 09160-06012.

09160-06054

$1.62

16

BOLT (6X110)

09106-06119

$5.21

17

SPACER,FUEL TANK RR

44561-18G00

$15.52

18

HOSE,FUEL TANK WATER DRAIN

44423-14J01

$23.47

19

HOSE,FUEL TANK BRTHR NO.1

44424-14J01

$10.87

20

HOSE,FUEL TANK BRTHR NO.2

44424-14J11

$10.02

21

HOSE,FUEL TANK BRTHR NO.3

44424-38G01

$9.35

22

HOSE

09352-12164-010

Unavailable

23

3 WAY

09367-06007

$3.17

24

STAY,FUEL TANK | OPT

44574-35F00

$13.89

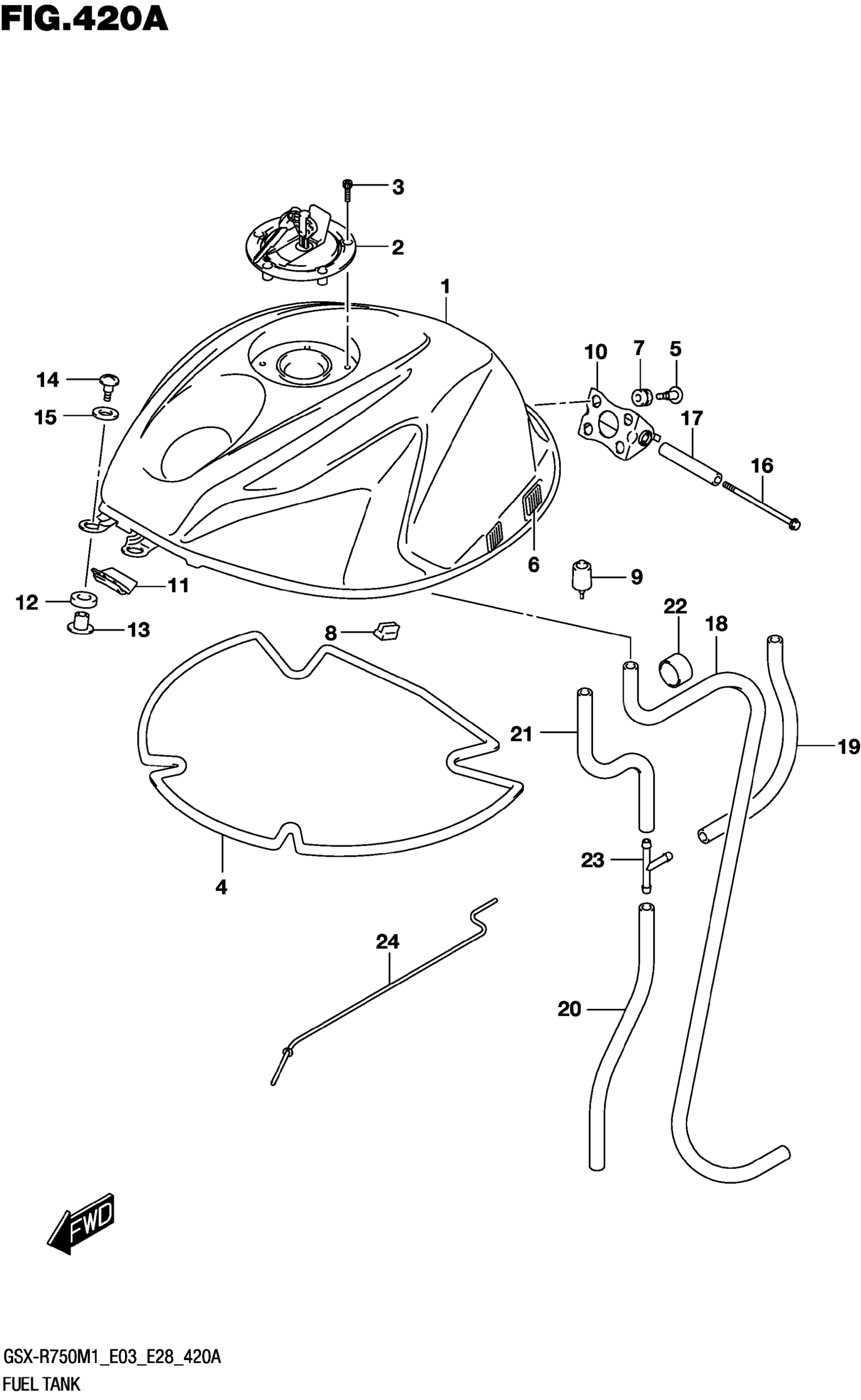

Suzuki GSX-R750M1 (2021) FUEL TANK (GSX-R750Z:(E03,E28)) Diagram
