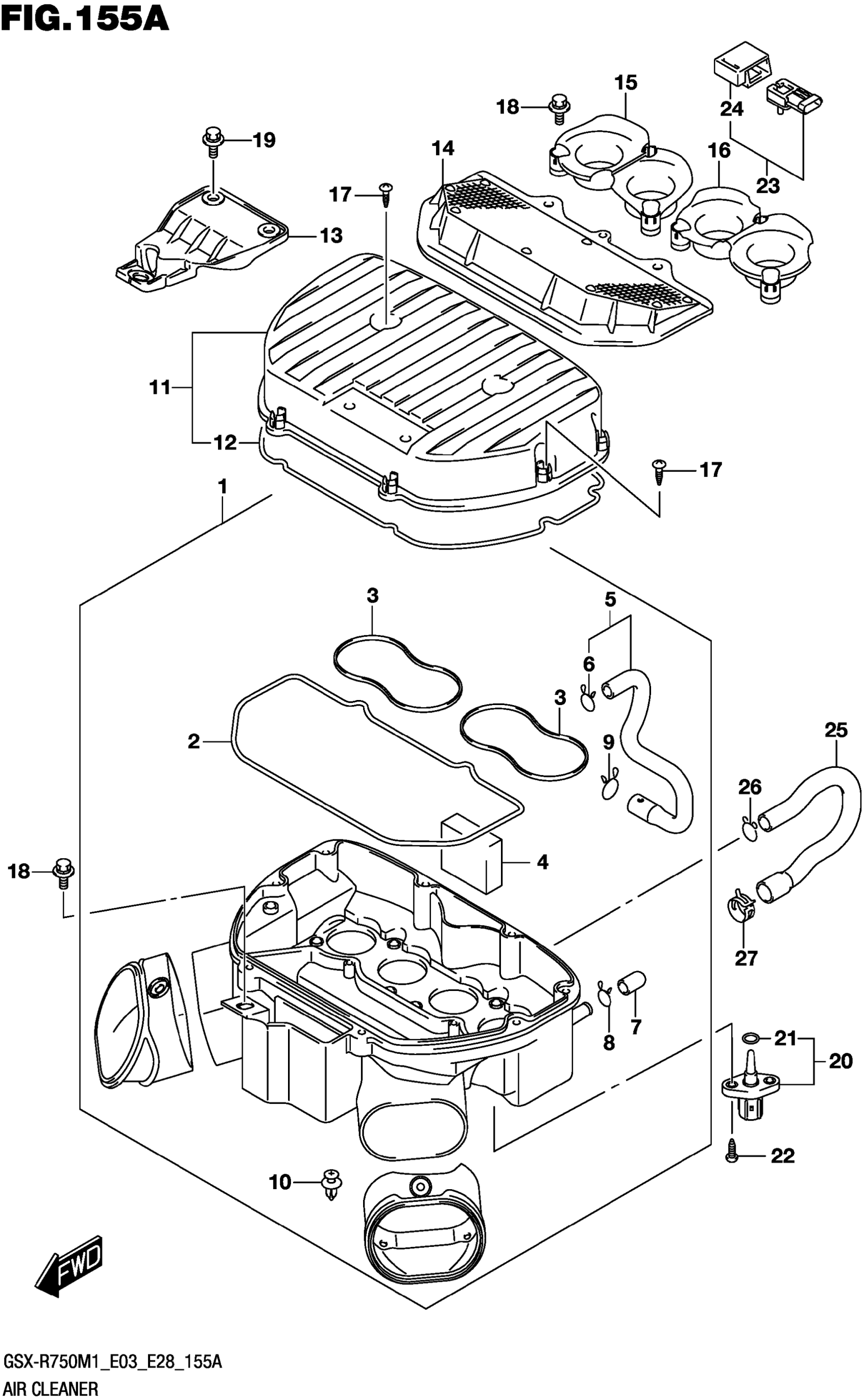

Suzuki GSX-R750M1 (2021) AIR CLEANER Diagram

#

Description
Price

1

CASE,AIR CLEANER

13720-14J01

$246.67

2

.GASKET,CASE

13756-14J00

$6.83

3

.GASKET,CASE

13757-14J00

$6.01

4

.FILTER,BREATHER

13788-14J00

$7.77

5

.TUBE,BREATHER

13850-14J01

$31.85

6

CLIP (ID:15.5)

09401-15101

$2.28

7

.PLUG

13878-10G01

$6.53

8

.CLIP

09401-14301

$2.17

9

CLIP

09401-17201

$3.42

10

.CLIP (BLACK,BLACK)

09409-07305-5PK

$2.30

11

CAP,AIR CLEANER

13740-14J00

$84.55

12

.GASKET,CAP

13746-14J00

$14.55

13

HOLDER,AIR CLEANER

13760-14J00

$21.23

14

FILTER ASSY

13780-14J00

$38.02

15

FUNNEL,OUTLET,R

13881-15J00

$48.27

16

FUNNEL,OUTLET,L

13882-15J00

$48.27

17

SCREW

03541-0520A

$1.81

18

BOLT,AIR CLEANER CASE

13831-47H00

$7.73

19

BOLT (6X16)

09111-06089

$2.61

20

SENSOR,AIR TEMP

13650-14G10

$47.66

21

.O-RING

13655-14G10

$11.18

22

SCREW

03511-0516A

$1.88

23

SENSOR,AIR PRESSURE

15630-29G10

$304.30

24

.COVER

15625-29G00

$14.00

25

HOSE

13697-14J00

$23.17

26

CLIP (ID:15.5)

09401-15101

$2.28

27

CLIP

09401-17401

$1.01
