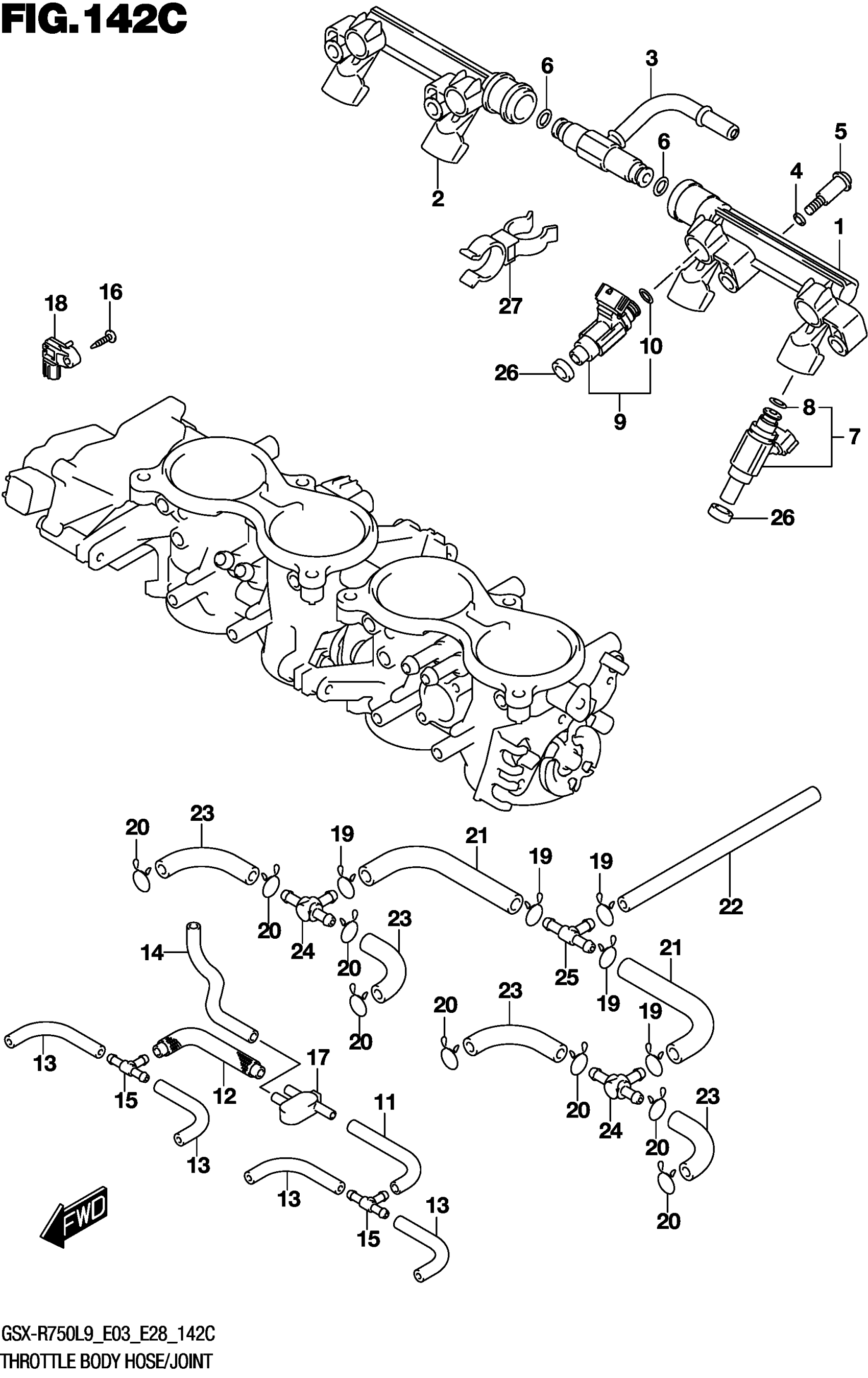

Suzuki GSX-R750L9 (2019) THROTTLE BODY HOSE/JOINT (GSX-R750L9 E33) Diagram

#

Description
Price

1

DELIVERY PIPE

13473-14J00

Unavailable

2

DELIVERY PIPE

13473-14J10

Unavailable

3

NIPPLE ASSY

13473-29G00

$96.22

4

PACKING This part replaces 13602-29G00.

13602-29G01

$2.43

5

SCREW

13601-29G00

$3.43

6

O-RING

15721-08J00

$10.52

7

INJECTOR ASSY

15710-14J00

$333.68

8

.O-RING

15717-58B00

$9.95

9

INJECTOR ASSY

15710-14J10

Unavailable

10

.O-RING

15717-58B00

$9.95

11

HOSE This part replaces 13683-14J00.

13683-14J01

$7.72

12

HOSE This part replaces 13683-14J10.

13683-14J11

$9.23

13

HOSE (L:425) This part replaces 13683-10F60.

13683-10F61

$17.10

14

HOSE This part replaces 13683-29G00.

13683-29G01

$8.10

15

3WAY,VACUUM HOSE

13685-02FA0

$7.05

16

SCREW

13437-14J00

Unavailable

17

JOINT

13471-18H00

$10.48

18

SENSOR,BOOST

15620-29G00

$273.45

19

CLIP

13671-06A10

Unavailable

20

CLIP

13671-29G00

Unavailable

21

HOSE

13680-14J00

Unavailable

22

HOSE

13680-14J10

Unavailable

23

HOSE

13683-18H41

Unavailable

24

NIPPLE

13685-29G00

Unavailable

25

.NIPPLE

13685-48B00

$12.15

26

SEAL

15722-14J00

$11.36

27

CLAMP

09408-00262

Unavailable
