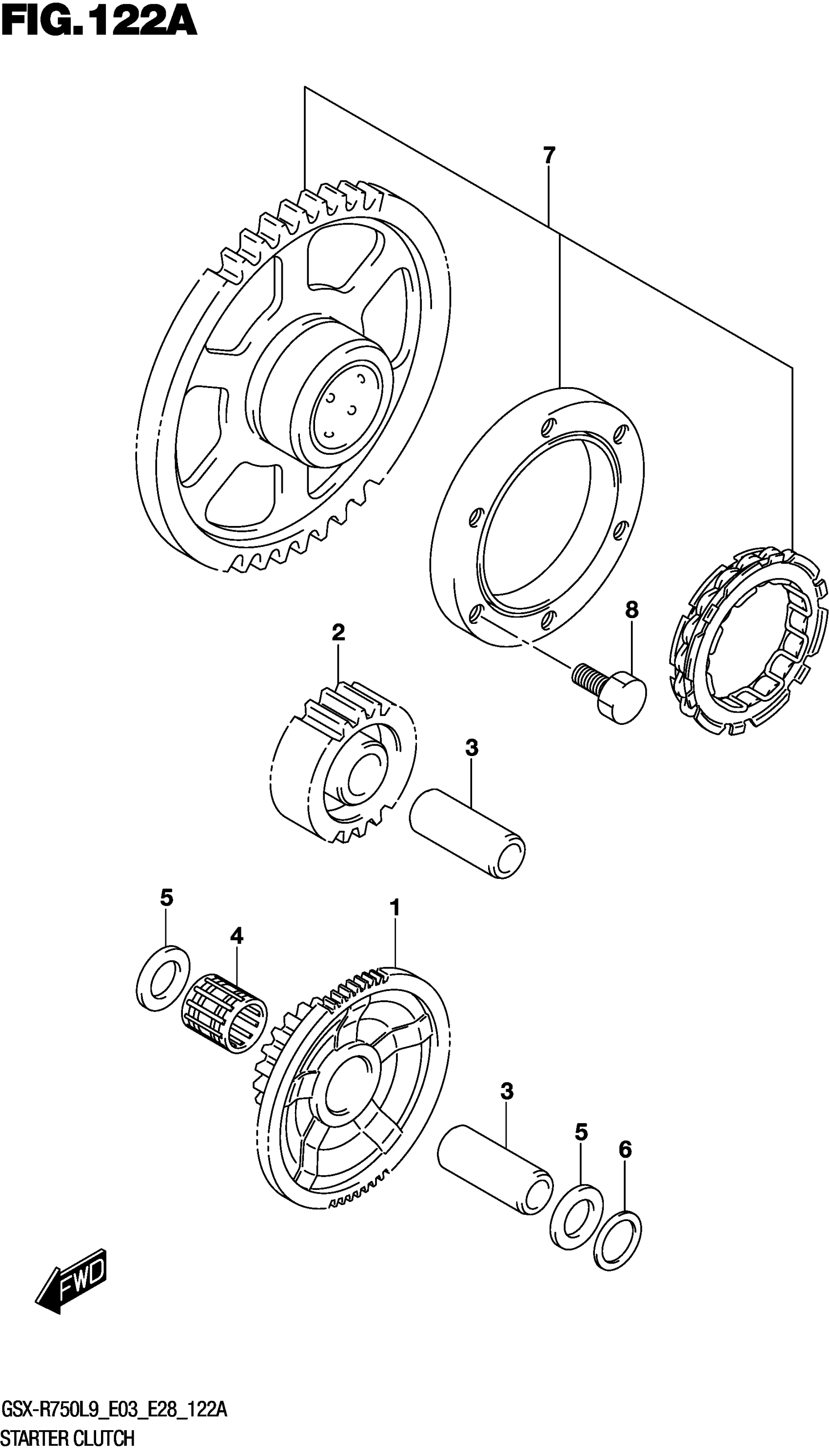

Suzuki GSX-R750L9 (2019) STARTER CLUTCH Diagram

#

Description
Price

1

GEAR,STARTER IDLE NO.1 (NT:14

12611-01H00

$117.83

1

GEAR,STARTER IDLE NO.1 (NT:14

12611-01H00

$117.83

2

GEAR,STARTER IDLE NO.2 (NT:19

12612-01H00

$71.85

2

GEAR,STARTER IDLE NO.2 (NT:19

12612-01H00

$71.85

3

PIN (8X12X33)

09206-12007

$6.83

4

BEARING (12X16X16)

09263-12023

$10.19

5

SHIM (12X20X1)

09181-12167

$2.26

6

WASHER (37.3X52X1)

09164-12021

$2.03

7

CLUTCH SET,STARTER (NT:57)

12600-01810

$306.43

8

BOLT (6X13)

09100-06171

$3.48
