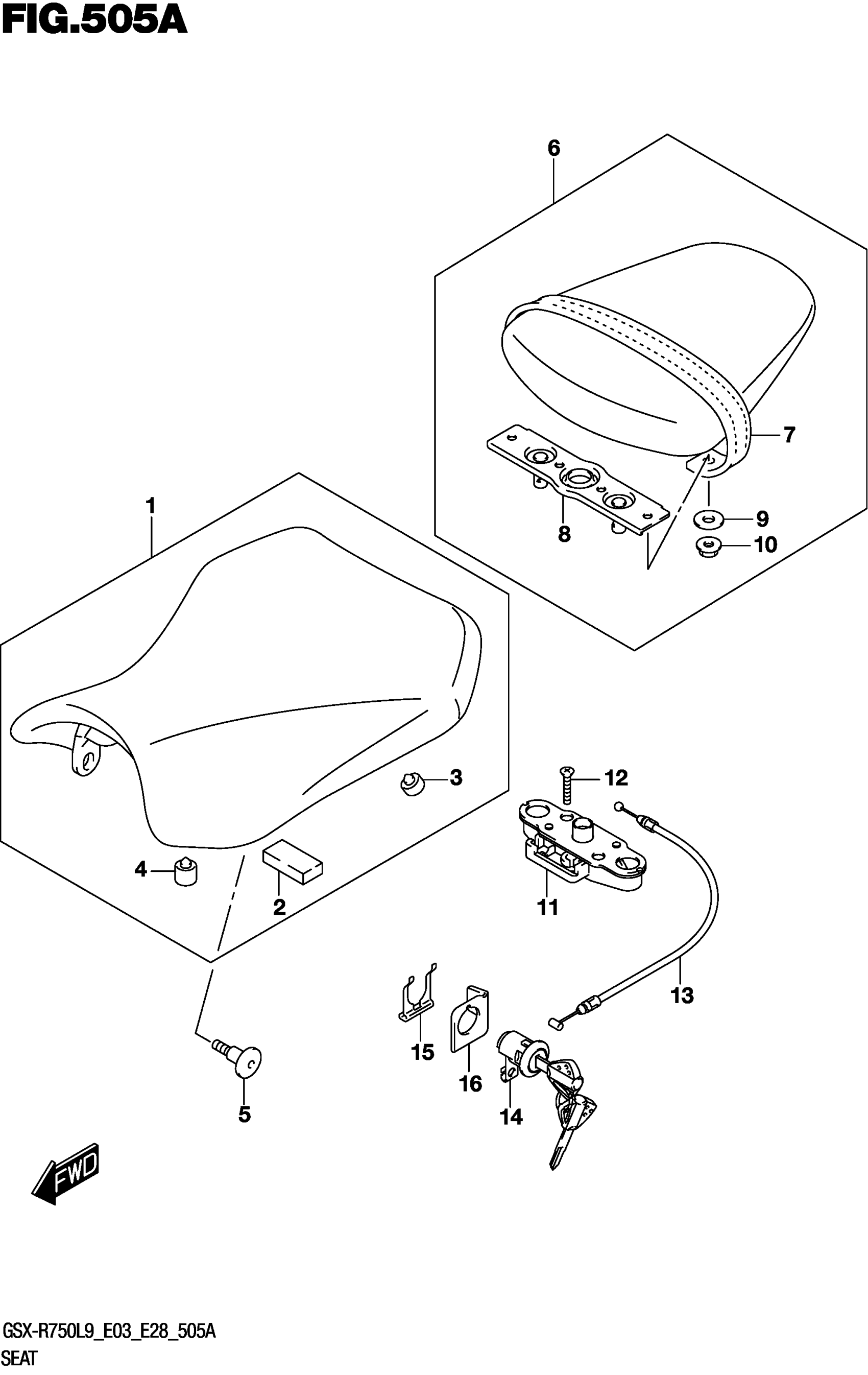

Suzuki GSX-R750L9 (2019) SEAT Diagram

#

Description
Price

1

SEAT ASSY (BLACK) This part replaces 45100-14J10-DW2.

45100-14J11-DW2

$230.10

2

.CUSHION

45149-37H00

$6.88

3

.CUSHION

09321-10011

$2.91

4

.CUSHION

09321-10034

$9.11

5

SCREW (6X20)

09139-06193

$4.24

6

SEAT ASSY,PILLION (BLACK) This part replaces 45300-14J10-P3H.

45300-14J11-P3H

$166.96

7

.BAND ASSY,SEAT (BLACK)

45180-14J10-P3H

Unavailable

8

.STRIKER

45290-47H01

$39.00

9

.WASHER (6.5X20X1.6)

09160-06088

$1.65

10

NUT (6X12)

08316-1006A

$2.19

11

BRACKET,SEAT SUPPORT

45220-47H00

$138.38

12

SCREW

02122-0630A

$1.74

13

CABLE,SEAT LOCK

45280-14J00

$24.42

14

LOCK SET,SEAT

95700-14810

$107.30

15

PLATE,SEAT LOCK ASSY

45289-11F00

$6.20

16

GUIDE,SEAT LOCK CABLE

45288-14F00

$5.36
