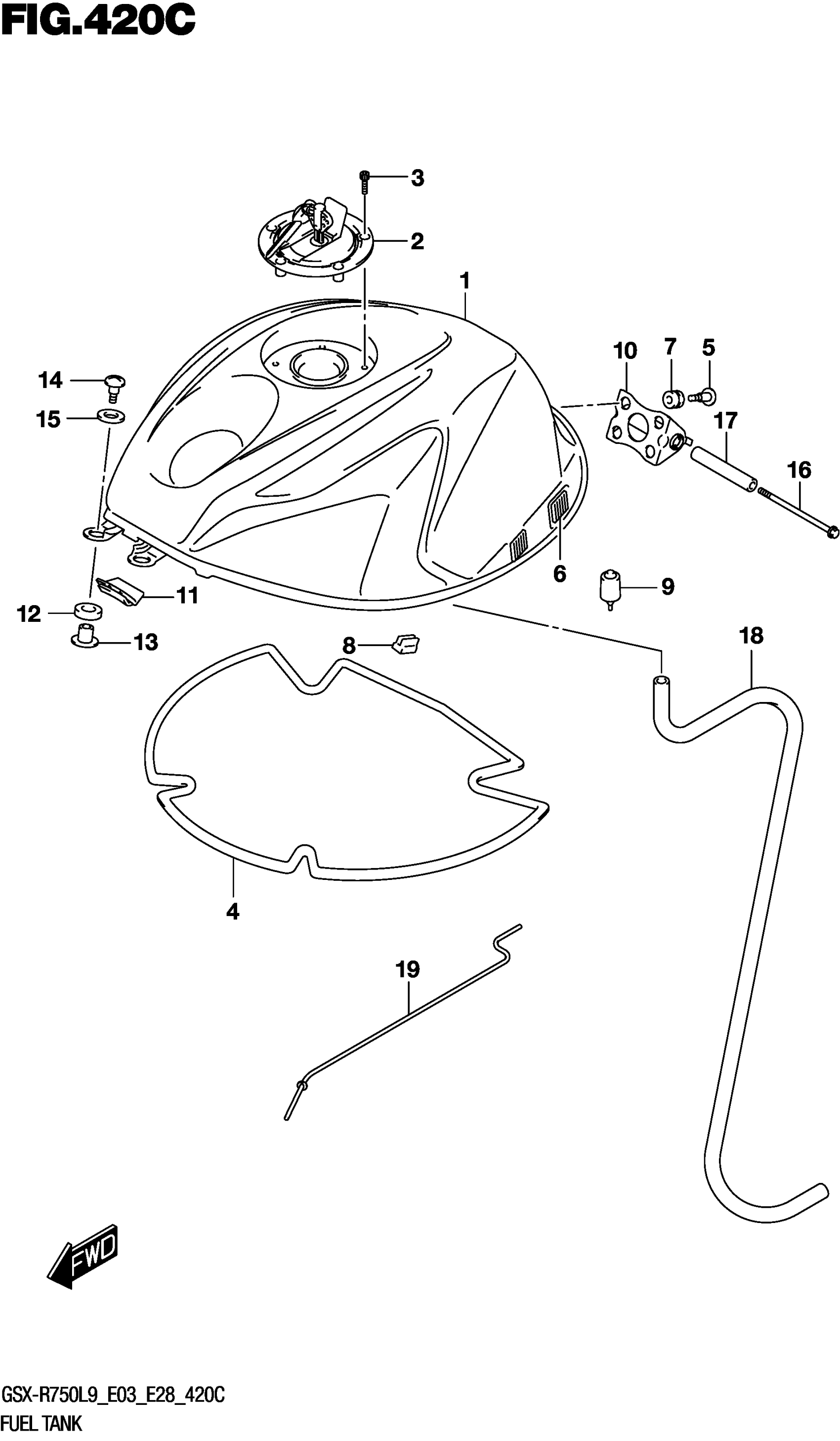

Suzuki GSX-R750L9 (2019) FUEL TANK (GSX-R750L9 E33) Diagram

#

Description
Price

1-1

TANK ASSY, FUEL (WHITE) | FOR AGT

44100-14J52-YWW

Unavailable

1-2

TANK ASSY, FUEL (BLACK) | FOR KGL

44100-14J52-YVB

$1,637.35

2

CAP SET,FUEL TA This part replaces 44200-16870.

44200-16872

$172.96

3

BOLT,FUEL TANK FILLER CAP

44244-11J00

$3.76

4

SHIELD,FUEL TANK HEAT

44191-14J00

$104.63

5

SCREW,FUEL TANK RR BRACKET

44543-14J00

$7.95

6

FASTENER (33X25X2.6)

44572-13G00

$10.13

7

CUSHION (8X18X14)

09320-08071

$3.05

8

CUSHION,FUEL TANK COVER This part replaces 44276-21H00.

44276-21H01

$5.46

9

CUSHION,FUEL TANK RR

44542-41G00

$7.04

10

BRACKET,FUEL TANK

44530-41G01

$45.77

11

RUBBER,FUEL TANK FR

44546-44H00

$15.07

12

CUSHION,FUEL TANK FRONT This part replaces 44511-16G00.

44511-16G01

$3.77

13

SPACER,FUEL TANK FR

44512-16G00

$6.80

14

SCREW (6X25)

09139-06192

$2.92

15

WASHER This part replaces 09160-06012.

09160-06054

$1.62

16

BOLT (6X110)

09106-06119

$5.21

17

SPACER,FUEL TANK RR

44561-18G00

$15.52

18

HOSE,FUEL TANK WATER DRAIN

44423-14J01

$23.47

19

STAY,FUEL TANK | OPT

44574-35F00

$13.89

20

COLOR:KEL=YVB(BLACK)/YSF(BLUE) | COLOR :

SPECIAL NOTE

Unavailable

20

COLOR:KEL=YVB(BLACK)/YSF(BLUE) | AGT=YVB(BLACK),YWW(WHITE)

SPECIAL NOTE

Unavailable

20

COLOR:KEL=YVB(BLACK)/YSF(BLUE) | KGL=YKV(BLACK),YVB(BLACK)

SPECIAL NOTE

Unavailable
