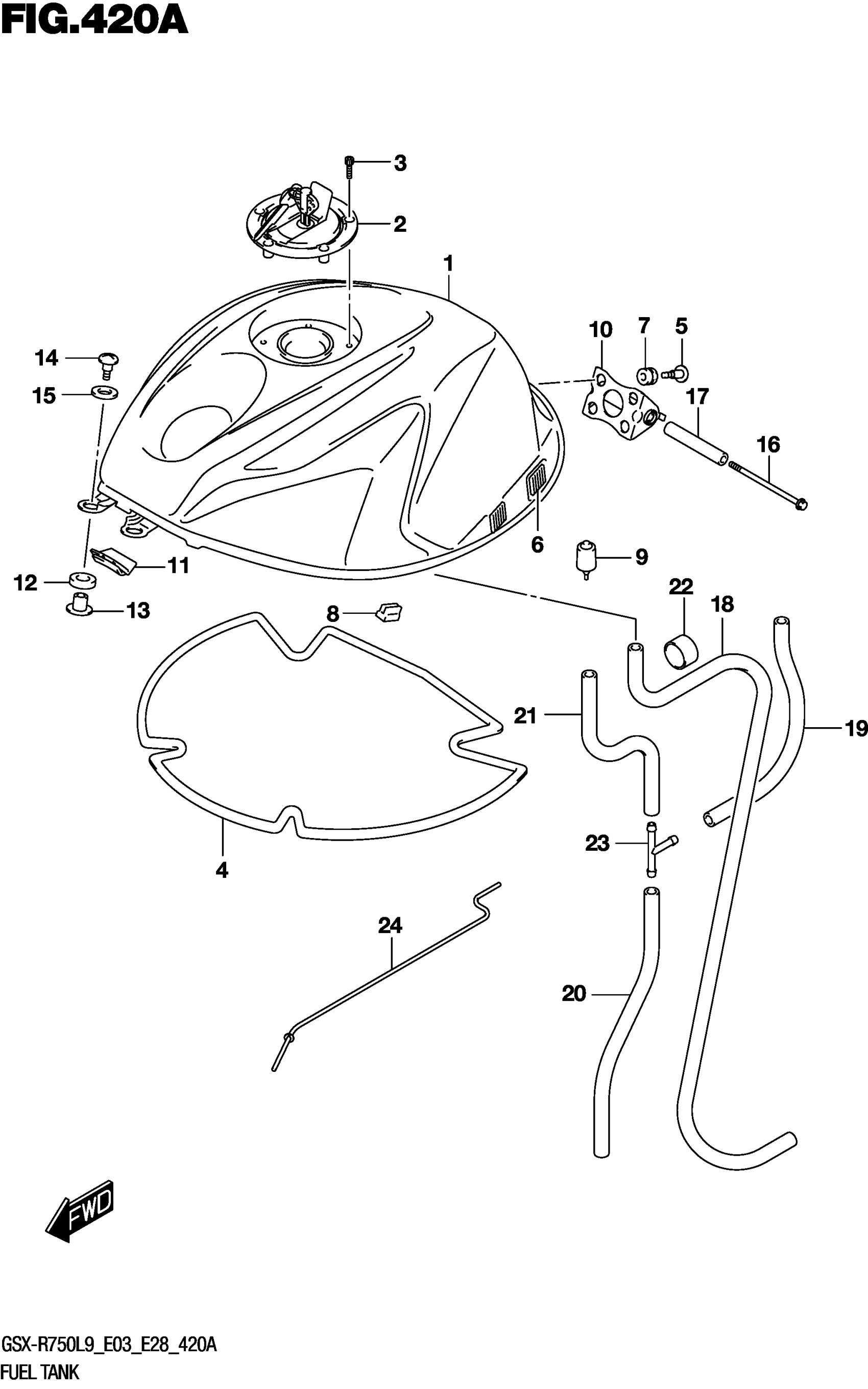

Suzuki GSX-R750L9 (2019) FUEL TANK (GSX-R750L9 E03) Diagram

#

Description
Price

1-1

TANK ASSY, FUEL (WHITE) | FOR AGT

44100-14J32-YWW

$1,183.28

1-2

TANK ASSY, FUEL (BLACK) | FOR KGL

44100-14J32-YVB

$1,444.63

2

CAP SET,FUEL TA This part replaces 44200-16850.

44200-16852

$118.21

3

BOLT,FUEL TANK FILLER CAP

44244-11J00

$4.00

4

SHIELD,FUEL TANK HEAT

44191-14J00

$92.70

5

SCREW,FUEL TANK RR BRACKET

44543-14J00

$7.05

6

FASTENER (33X25X2.6)

44572-13G00

$11.07

7

CUSHION (8X18X14)

09320-08071

$3.25

8

CUSHION,FUEL TANK COVER This part replaces 44276-21H00.

44276-21H01

$5.80

9

CUSHION,FUEL TANK RR

44542-41G00

$7.69

10

BRACKET,FUEL TANK

44530-41G01

$40.55

11

RUBBER,FUEL TANK FR

44546-44H00

$13.35

12

CUSHION,FUEL TANK FRONT This part replaces 44511-16G00.

44511-16G01

$4.11

13

SPACER,FUEL TANK FR

44512-16G00

$7.44

14

SCREW (6X25)

09139-06192

$3.23

15

WASHER This part replaces 09160-06012.

09160-06054

$1.62

16

BOLT (6X110)

09106-06119

$5.76

17

SPACER,FUEL TANK RR

44561-18G00

$16.96

18

HOSE,FUEL TANK WATER DRAIN

44423-14J01

$20.78

19

HOSE,FUEL TANK BRTHR NO.1

44424-14J01

$9.62

20

HOSE,FUEL TANK BRTHR NO.2

44424-14J11

$8.88

21

HOSE,FUEL TANK BRTHR NO.3 | CUT AS REQUIRED

44424-38G01

$8.28

22

HOSE

09352-12164-010

Unavailable

23

3 WAY

09367-06007

$3.46

24

STAY,FUEL TANK | OPT

44574-35F00

$15.16

25

COLOR:KEL=YVB(BLACK)/YSF(BLUE) | COLOR :

SPECIAL NOTE

Unavailable

25

COLOR:KEL=YVB(BLACK)/YSF(BLUE) | AGT=YVB(BLACK),YWW(WHITE)

SPECIAL NOTE

Unavailable

25

COLOR:KEL=YVB(BLACK)/YSF(BLUE) | KGL=YKV(BLACK),YVB(BLACK)

SPECIAL NOTE

Unavailable
