Description

Price

1

CYLINDER ASSY,FRONT MASTER

59600-47H00

$228.54

2

.PISTON & CUP SET

59600-01820

$95.22

3

..BOOT

59666-29G00

$13.93

4

.O-RING

69686-34200

$2.80

5

.CONNECTOR

59672-17C00

$8.91

6

.CIRCLIP

69674-00B20

$3.90

7

.COVER,DUST

59673-17C00

$8.27

8

.HOLDER

59671-01H00

$20.83

9

.BOLT (6X22)

59675-02FA0

$3.66

10

.BLEEDER

59121-01A00

$8.35

11

.CAP,BLEEDER

59122-46H00

$4.36

12

TANK ASSY,FR RESERVOIR

59740-47H10

$63.26

13

.DIAPHRAGM

59667-18441

$9.84

14

.PLATE,DIAPHRAGM

59668-18441

$4.46

15

.CAP

59669-47H00

$26.85

16

PLATE,RESERVOIR TANK CAP

59743-17C00

$8.91

17

SCREW

02142-0410A

$1.25

18

BOLT (5X17)

09111-05006

$4.70

19

BRACKET,FR RESERVOIR TANK

59751-47H10

$15.69

20

BOLT

01547-0612A

$2.09

21

NUT

09159-05048

$6.84

22

HOSE,FRONT RESERVOIR TANK

59731-47H00

$15.81

23

CLAMP,RESERVOIR TANK FR

59735-17C00

$4.71

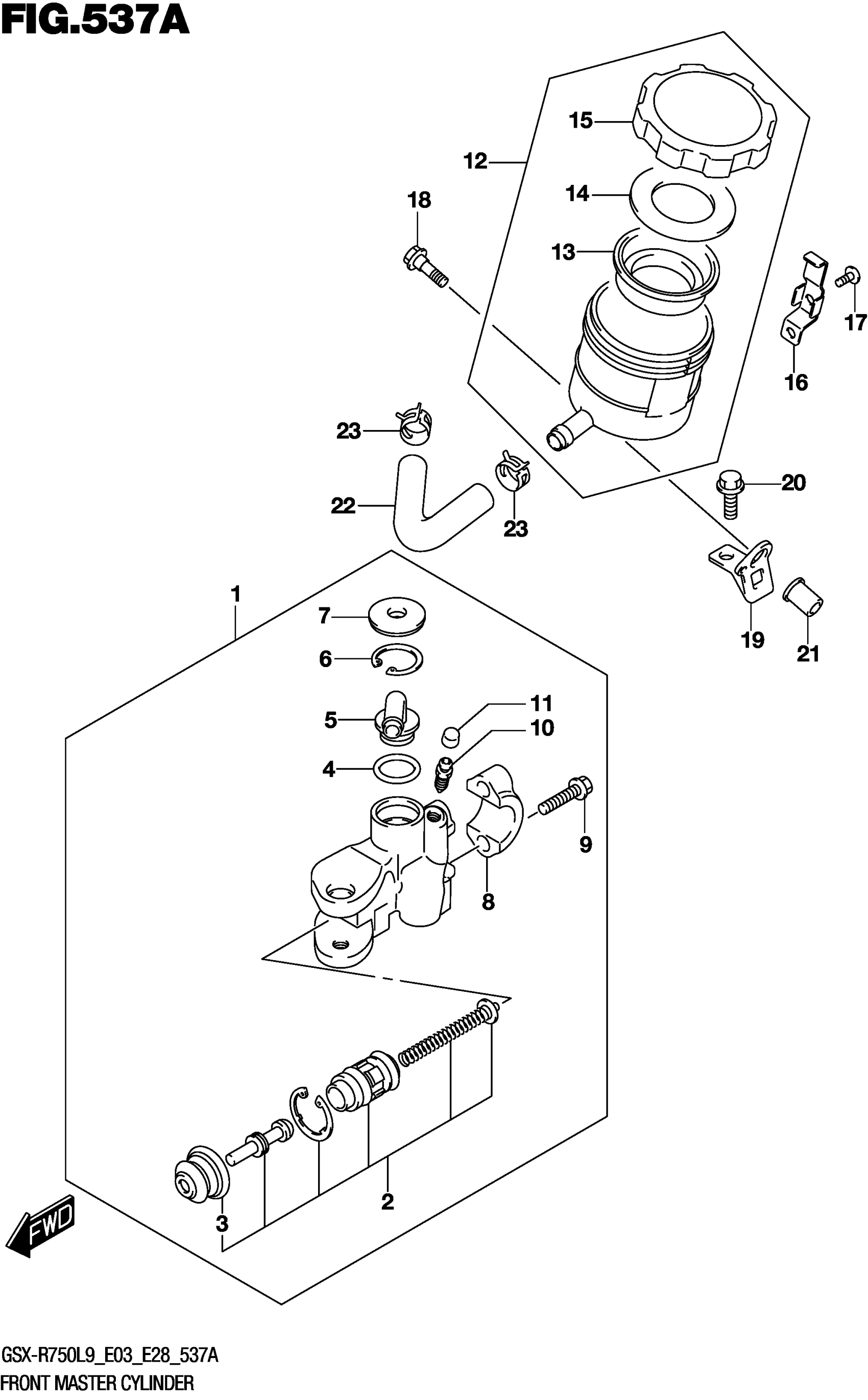

Suzuki GSX-R750L9 (2019) FRONT MASTER CYLINDER Diagram
