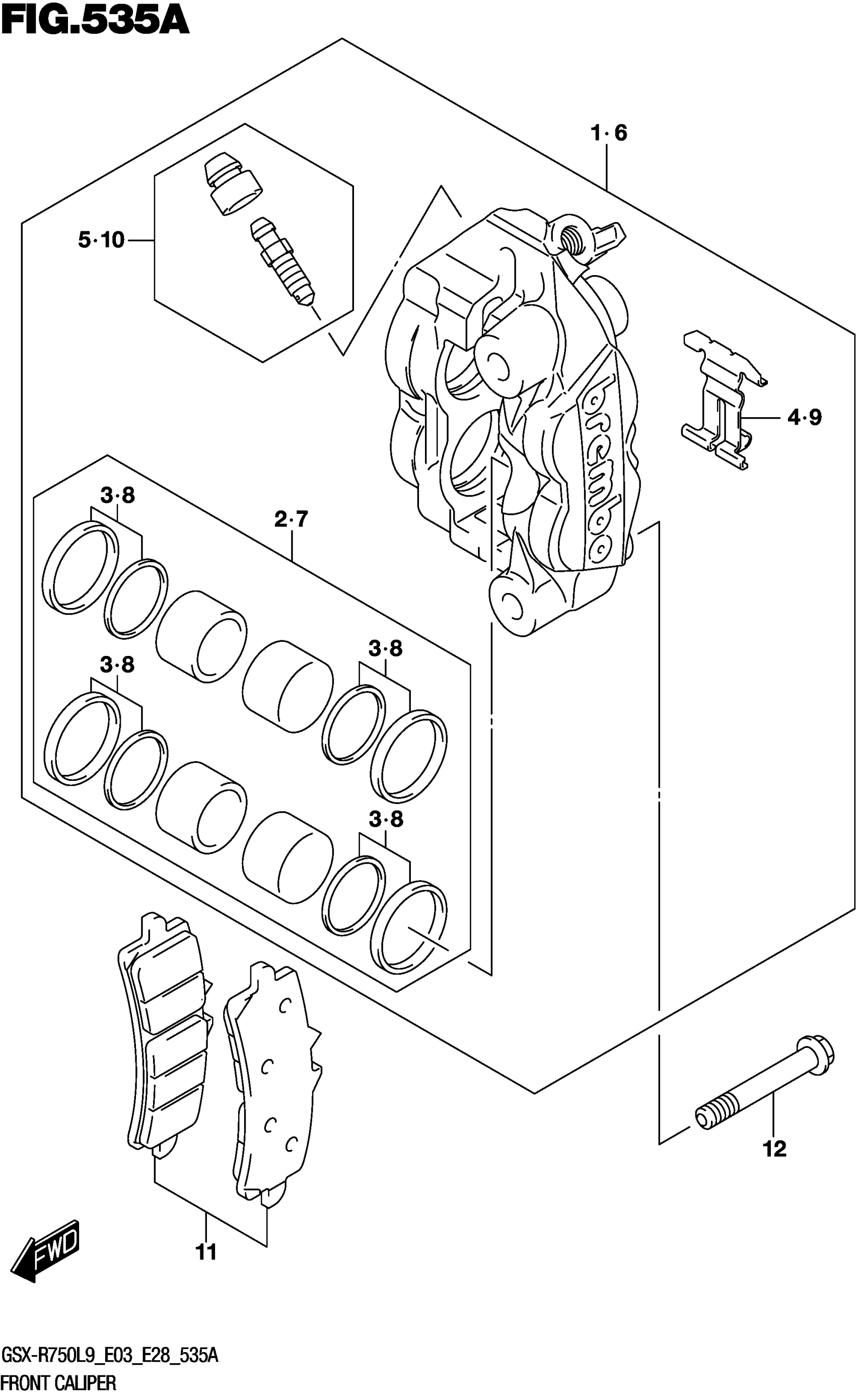

Suzuki GSX-R750L9 (2019) FRONT CALIPER Diagram

#

Description
Price

1-1

CALIPER ASSY,FRONT,R This part replaces 59100-14J00-999.

59100-17K20-999

$398.15

1-2

CALIPER ASSY, FRONT RH | OPT:TITAN

59110-14JA0

Unavailable

2

.PISTON SET

59100-14810

$101.95

3

..SEAL SET,PISTON

59100-14820

$63.34

4

.SPRING

59151-14J00

$23.43

5

.BLEEDER SET

59100-14840

$25.21

6-1

CALIPER ASSY,FRONT,L This part replaces 59300-14J00-999.

59300-17K20-999

$398.15

6-2

CALIPER ASSY, FRONT LH | OPT:TITAN

59310-14JA0

Unavailable

7

.PISTON SET

59100-14810

$101.95

8

..SEAL SET,PISTON

59100-14820

$63.34

9

.SPRING

59151-14J00

$23.43

10

.BLEEDER SET

59100-14840

$25.21

11

PAD SET (T:3.5) | PAD BASE PLATE:t=3.5

59100-14830

$59.36

12

BOLT (10X70)

09103-10429

$15.38
