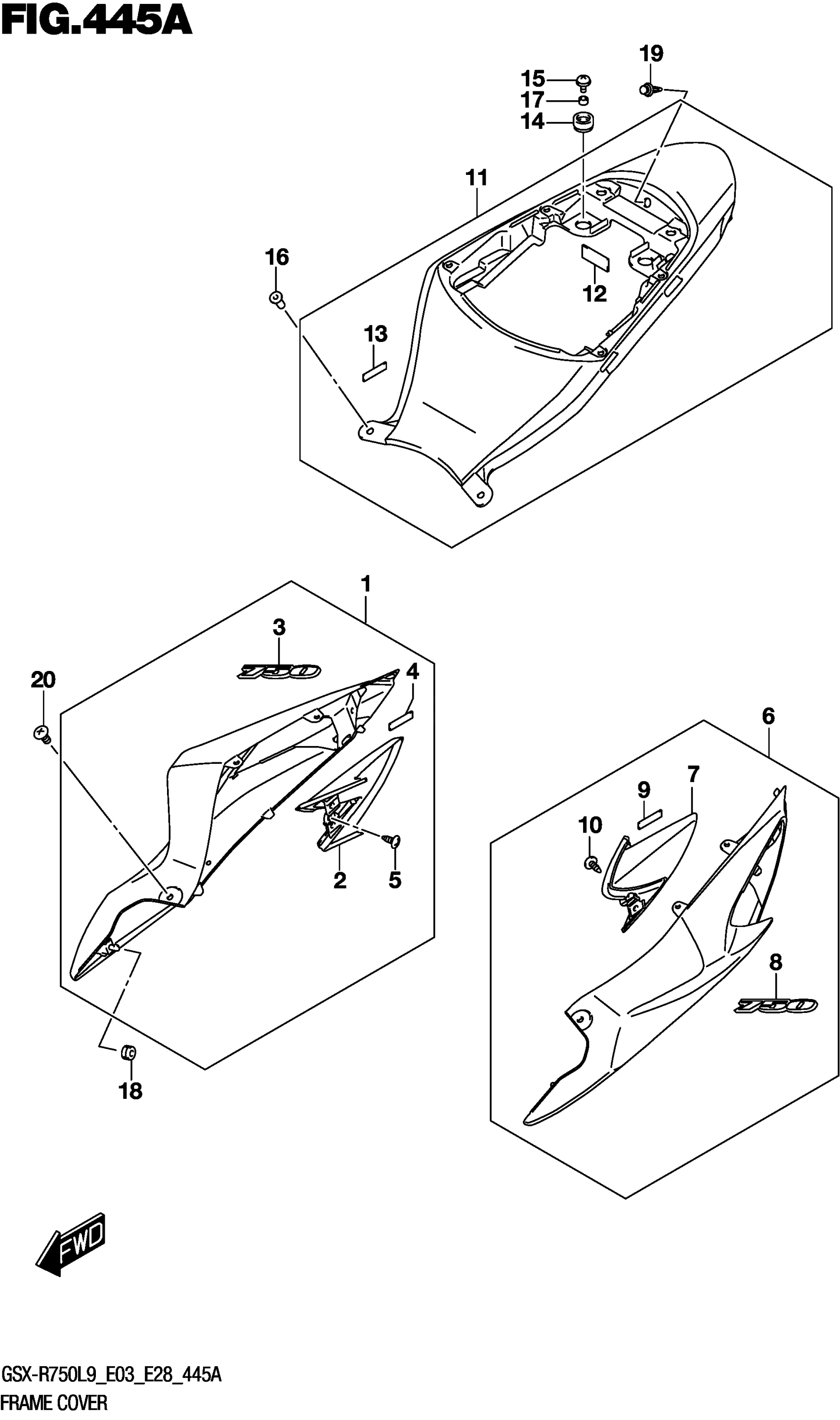

Suzuki GSX-R750L9 (2019) FRAME COVER Diagram

#

Description
Price

1-1

COVER, FRAME RH (WHITE) | FOR AGT

47100-15J10-AHX

$120.22

1-2

COVER, FRAME RH (BLACK) | FOR KGL

47100-15J10-YKV

$120.22

2

COVER,FRAME RR,R

47611-14J00

$18.97

3-1

.EMBLEM "750" (RED/WHITE) | FOR AHX

68131-15J00-BV7

$11.72

3-2

.EMBLEM "750" (RED/BLACK) | FOR YKV

68131-15J00-BFK

$11.32

4

TAPE (6X25X0.13)

94443-06G00

$3.25

5

SCREW

03541-0512A

$1.49

6-1

COVER, FRAME LH (WHITE) | FOR AGT

47200-15J10-AHX

$120.22

6-2

COVER, FRAME LH (BLACK) | FOR KGL

47200-15J10-YKV

$120.22

7

COVER,FRAME RR,L

47621-14J00

$19.07

8-1

.EMBLEM "750" (RED/WHITE) | FOR AHX

68131-15J00-BV7

$11.72

8-2

.EMBLEM "750" (RED/BLACK) | FOR YKV

68131-15J00-BFK

$11.32

9

TAPE (6X25X0.13)

94443-06G00

$3.25

10

SCREW

03541-0512A

$1.49

11

COVER ASSY,FRAME CTR This part replaces 47300-14J00.

47300-14J10

$97.78

12

CUSHION (10X24X1)

48128-14FA0

$6.47

13

TAPE (6X25X0.13)

94443-06G00

$3.25

14

CUSHION (10X24X13) This part replaces 47312-37H00.

47312-37H10

$2.91

15

SCREW (6X16)

09136-06056

$2.19

16

NUT (M5)

09159-05019

$7.14

17

SPACER (6.5X10X7)

09180-06283

$1.91

18

CUSHION (6X18X6)

09320-06504

$4.96

19

CLIP (5.9X20.5,BLACK)

09409-06314-5PK

$2.78

20

SCREW

02142-1520B

$2.28

21

COLOR:KEL=YVB(BLACK)/YSF(BLUE) | COLOR :

SPECIAL NOTE

Unavailable

21

COLOR:KEL=YVB(BLACK)/YSF(BLUE) | AGT=YVB(BLACK),YWW(WHITE)

SPECIAL NOTE

Unavailable

21

COLOR:KEL=YVB(BLACK)/YSF(BLUE) | KGL=YKV(BLACK),YVB(BLACK)

SPECIAL NOTE

Unavailable
