Description

Price

1

FRAME (BLACK)

41100-15J00-YAP

$7,256.20

2

RAIL,SEAT,R (BLACK)

41211-14J00-YUG

$318.83

3

RAIL,SEAT,L (BLACK)

41221-14J00-YUG

$320.40

4

BRIDGE,SEAT RAIL FR

41770-01H00

$61.13

5

BRIDGE,SEAT RAIL LWR

42740-37H00

$35.62

6

BRIDGE,SEAT RAIL UPR

42730-14J00

$35.74

7

BRIDGE,SEAT RAIL RR

42751-14J00

$16.82

8

BOLT (6X12)

09103-06285

$1.97

9

BOLT,SEAT RAIL

41233-18G20

$8.65

10

SPACER,ENGINE MOUNTING

41911-40F01

$22.56

11

BOLT (8X32)

09106-08185

$2.73

12

BOLT,CRANK CASE ADJUST

41921-35F00

$54.83

13

NUT,ADJUST BOLT

41922-18G00

$36.72

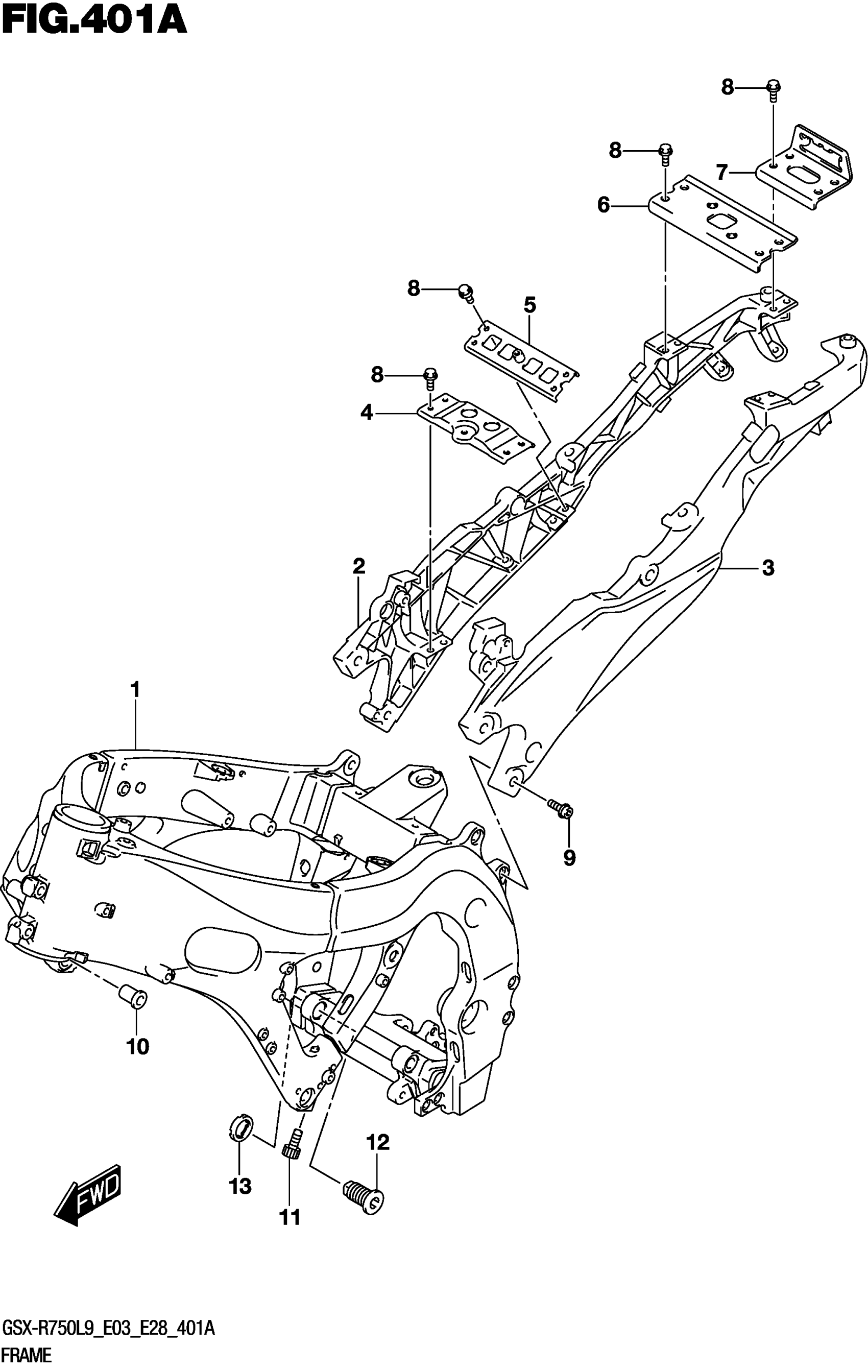

Suzuki GSX-R750L9 (2019) FRAME Diagram
