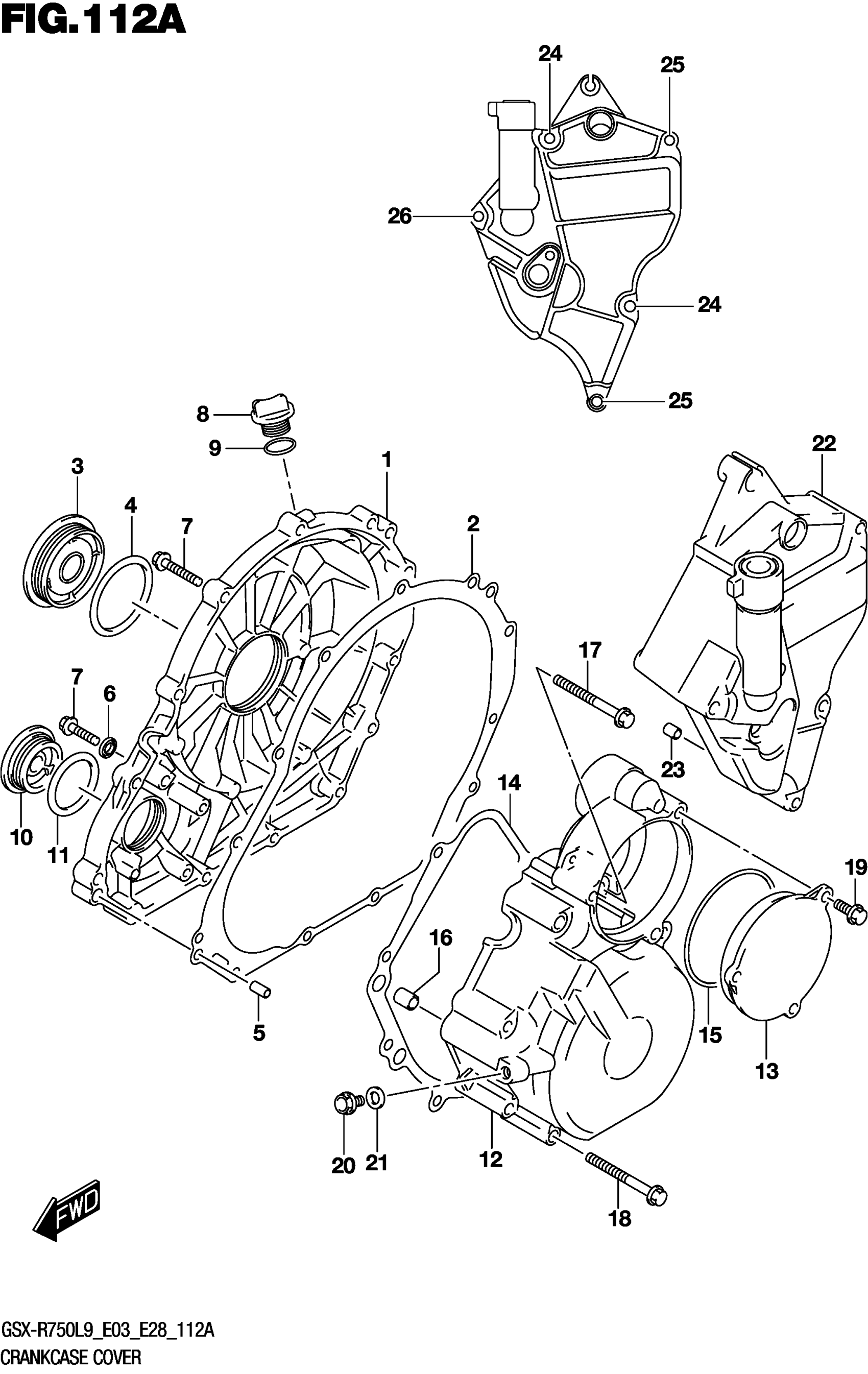

Suzuki GSX-R750L9 (2019) CRANKCASE COVER Diagram

#

Description
Price

1

COVER,CLUTCH This part replaces 11341-37H00.

11341-37H10

$178.44

2

.GASKET,CLUTCH COVER

11482-01H00

$21.96

3

CAP,CLUTCH RELEASE ADJUST

11342-41G10

$25.03

4

O-RING (D:2.4,ID:52.6)

31156-17E00

$4.60

5

PIN

04211-09189

$1.65

6

GASKET (5.8X13X1.2)

09168-06023

$2.35

7

BOLT (6X30)

09103-06529

$1.96

8

PLUG,ENGINE OIL FILLER

11971-25D00

$5.11

9

O-RING (D:3.1,ID:16.8)

09280-17003

$1.65

10

PLUG (36X10)

09259-36021

$13.80

11

.O-RING (D:3.1,ID:32.7)

09280-33004

$2.23

12

COVER,GENERATOR

11351-01H02

$260.43

13

CAP,STARTER IDLE GEAR

11352-01H00

$55.71

14

.GASKET,GENERATOR COVER

11483-01H00

$11.30

15

.O-RING (D:2.6,ID:67.1)

09280-71008

$6.88

16

PIN (8.5X18X2.3)

04211-09149

$1.65

17

BOLT (6X25)

09103-06528

$1.91

18

BOLT (6X50)

09103-06533

$2.28

19

BOLT (6X16)

09103-06526

$1.71

20

BOLT (6X12)

09103-06222

$2.26

21

GASKET (6.2X13X1.2)

09168-06018

$1.77

22

COVER,ENG SPROCKET

11361-01H00

$304.75

23

PIN

04211-09129

$1.65

24

BOLT (L:45)

09103-06532

$2.18

25

BOLT (L:65)

09103-06536

$2.95

26

BOLT,CLUTCH COVER (6X75)

09103-06538

$2.88
