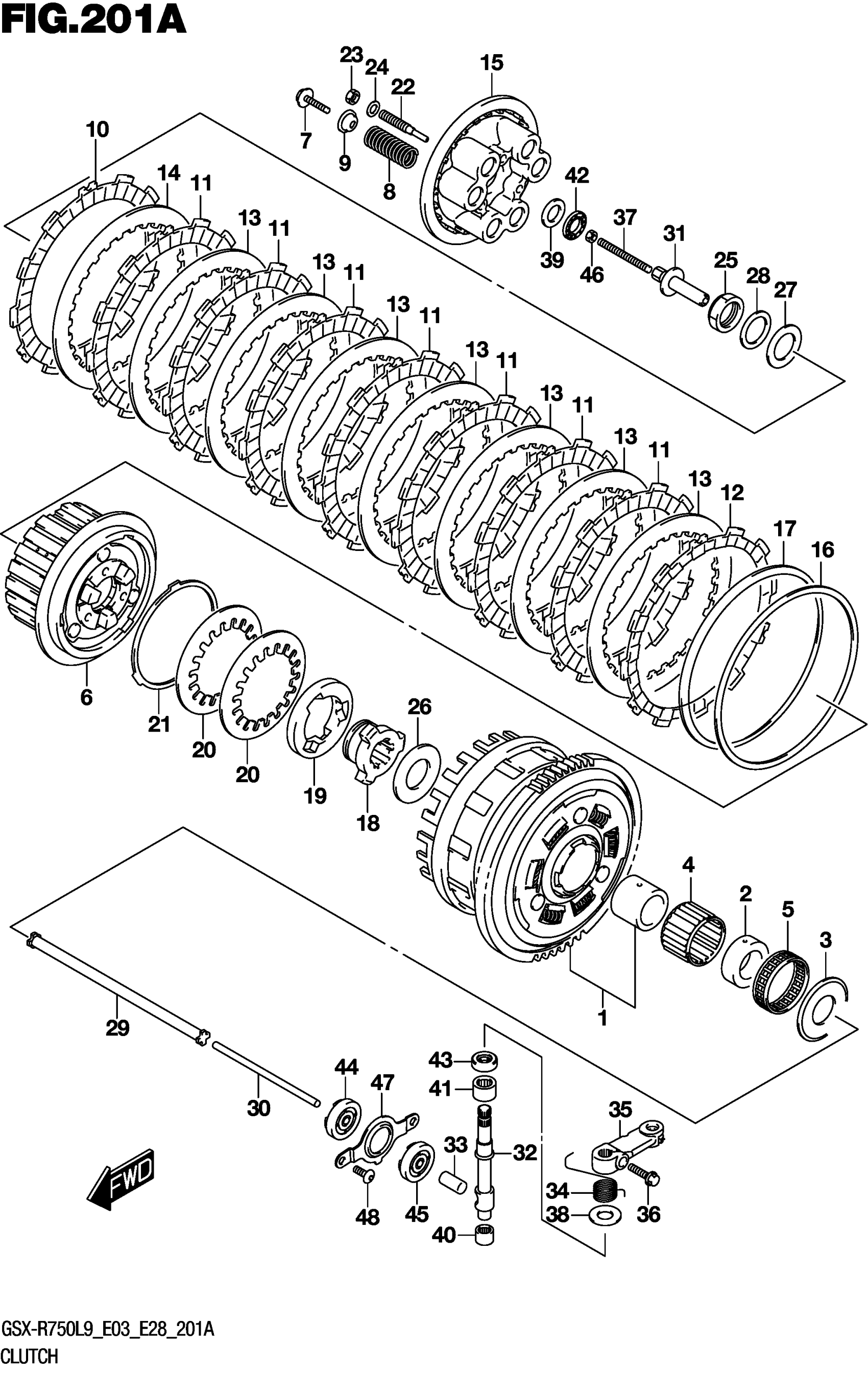

Suzuki GSX-R750L9 (2019) CLUTCH Diagram

#

Description
Price

1

GEAR ASSY,PRIMARY DRIVEN (NT:

21200-01840

$509.50

1

GEAR ASSY,PRIMARY DRIVEN (NT:

21200-01840

$509.50

2

SPACER,OIL PUMP DRIVE SPROCKE

21253-01H10

$41.45

3

WASHER (25X54X2.4)

09160-25073

$14.50

4

BEARING (35X40X26.8)

09263-35015

$27.95

5

BEARING (35X40X12)

09263-35045

$22.75

6

HUB,CLUTCH SLEEVE

21410-41G30

$236.72

7

BOLT,CLUTCH SPRING

21412-06G00

$3.77

8

SPRING,CLUTCH

21413-01H10

$7.78

9

WASHER

21414-29F00

$6.25

10

PLATE,CLUTCH DRIVE (T:2.8)

21441-36F10

$21.05

10

PLATE,CLUTCH DRIVE (T:2.8)

21441-36F10

$21.05

11

PLATE,CLUTCH DRIVE NO.1 (T:2.

21441-36F30

$28.07

11

PLATE,CLUTCH DRIVE NO.1 (T:2.

21441-36F30

$28.07

12

PLATE,CLUTCH DRIVE NO.3 (T:2.

21442-41G00

$28.07

12

PLATE,CLUTCH DRIVE NO.3 (T:2.

21442-41G00

$28.07

13

PLATE,CLUTCH DRIVEN (T:2.0)

21451-41G10

$13.63

13

PLATE,CLUTCH DRIVEN (T:2.0)

21451-41G10

$13.63

14

.PLATE,CLUTCH DRIVEN (T:1.6)

21451-41G30

$13.63

14

.PLATE,CLUTCH DRIVEN (T:1.6)

21451-41G30

$13.63

15

DISC,CLUTCH PRESSURE

21462-41G00

$78.55

16

.SEAT,WAVE WASHER

21471-41G00

$14.20

17

.WASHER,CLUTCH PLATE WAVE

21472-41G20

$20.53

18

CAM,CLUTCH DRIVE

21611-41G30

$141.12

19

CAM,CLUTCH DRIVEN

21612-41G10

$119.18

20

WASHER,CAM REACTION WAVE

21621-41G00

$14.82

21

WASHER,CAM REACTION SEAT

21624-41G00

$15.53

22

LIFTER,CLUTCH PRESSURE DISC

21622-41G00

$10.50

23

NUT,CL PRESS DISC LIFTER LOCK

21623-41G00

$2.61

24

SHIM (8.8X14X1)

09181-08139

$1.91

25

NUT

09159-24010

$13.22

26

.WASHER (25X50X2.5)

09160-25056

$11.61

27

WASHER (24.2X35X2.7)

09164-24008

$4.60

28

WASHER (25X41X2.5)

09160-25077

$10.48

29

ROD,CLUTCH PUSH,R

23110-38B00

$23.19

30

ROD,CLUTCH PUSH,L

23111-35F00

$13.30

31

PIECE,CLUTCH PUSH

23121-41G00

$49.02

32

CAMSHAFT,CLUTCH RELEASE

23122-41G10

$59.07

33

CAP,CLUTCH PUSH ROD

23123-41G00

$10.93

34

SPRING,CLUTCH RELEASE RETURN

23125-41G00

$3.25

35

ARM,CLUTCH RELEASE

23271-41G40

$64.08

36

BOLT (6X20)

09103-06223

$2.47

37

SCREW (6X73)

09134-06015

$6.88

38

WASHER (10.5X24X1.0)

09160-10020

$2.05

39

WASHER (15.5X28X1)

09160-15045

$3.89

40

BEARING (10X14X10)

09263-10014

$13.52

41

BEARING (12X18X12)

09263-12027

$7.31

42

BEARING (15X28X2)

09263-15003

$8.29

43

SEAL,OIL (10X20X6)

09282-10012

$7.98

44

SEAL,OIL (6X34X10.5)

09283-06010

$16.80

45

SEAL,OIL (10X17X5)

09285-10004

$3.37

46

NUT

08310-0006A

$1.84

47

RETAINER,CL PUSH ROD OIL SEAL

24741-01H00

$7.32

48

SCREW (6X13)

09139-06153

$2.62
