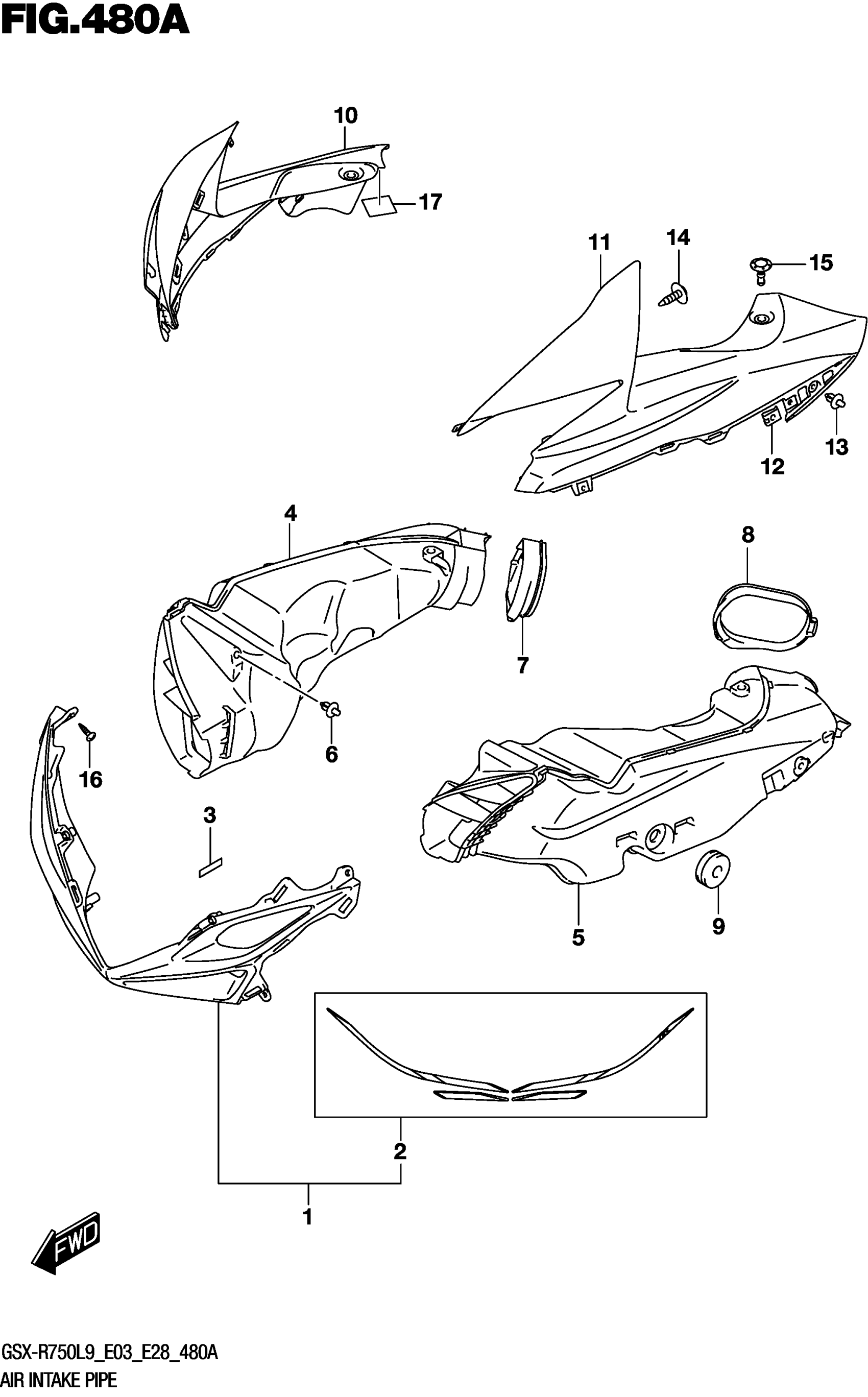

Suzuki GSX-R750L9 (2019) AIR INTAKE PIPE Diagram

#

Description
Price

1

COVER, INTAKE FRONT (BLACK)

94600-14J00-YVB

$259.30

2

.TAPE SET, INTAKE COVER

68270-14J20-BV8

$34.95

2

.TAPE SET, INTAKE COVER

68270-14J20-BV8

$34.95

3

TAPE (6X25X0.13)

94443-06G00

$2.97

4

PIPE,AIR INTAKE,R

94420-14J10

$78.76

5

PIPE,AIR INTAKE,L

94430-14J10

$76.18

6

CLIP (5.9X20.5,BLACK)

09409-06314-5PK

$2.80

7

MOLDING,AIR INTAKE,R

94423-14J00

$13.13

8

MOLDING,AIR INTAKE,L

94433-14J00

$13.13

9

CUSHION (8X26X7)

09320-08028

$2.80

10-1

COVER,INTAKE,R | FOR AGT This part replaces 94672-14J00-YWW.

94672-14J01-YWW

$142.77

10-2

COVER,INTAKE,R | FOR KGL This part replaces 94672-14J00-YVB.

94672-14J01-YVB

$101.73

11-1

COVER,INTAKE,L | FOR AGT This part replaces 94682-14J00-YWW.

94682-14J01-YWW

$144.83

11-2

COVER,INTAKE,L | FOR KGL This part replaces 94682-14J00-YVB.

94682-14J01-YVB

$143.45

12

NUT (M5)

09148-05052

$3.04

13

CLIP (5.9X20.5,BLACK)

09409-06314-5PK

$2.80

14

SCREW (5X12)

09132-05050

$1.89

15

CLIP

94479-35F00

$5.14

16

SCREW

03541-0512A

$1.37

17

PROTECTOR (30X80X1.0) This part replaces 33652-13E00.

33652-29F00

$2.80

18

COLOR:KEL=YVB(BLACK)/YSF(BLUE) | COLOR :

SPECIAL NOTE

Unavailable

18

COLOR:KEL=YVB(BLACK)/YSF(BLUE) | AGT=YVB(BLACK),YWW(WHITE)

SPECIAL NOTE

Unavailable

18

COLOR:KEL=YVB(BLACK)/YSF(BLUE) | KGL=YKV(BLACK),YVB(BLACK)

SPECIAL NOTE

Unavailable
