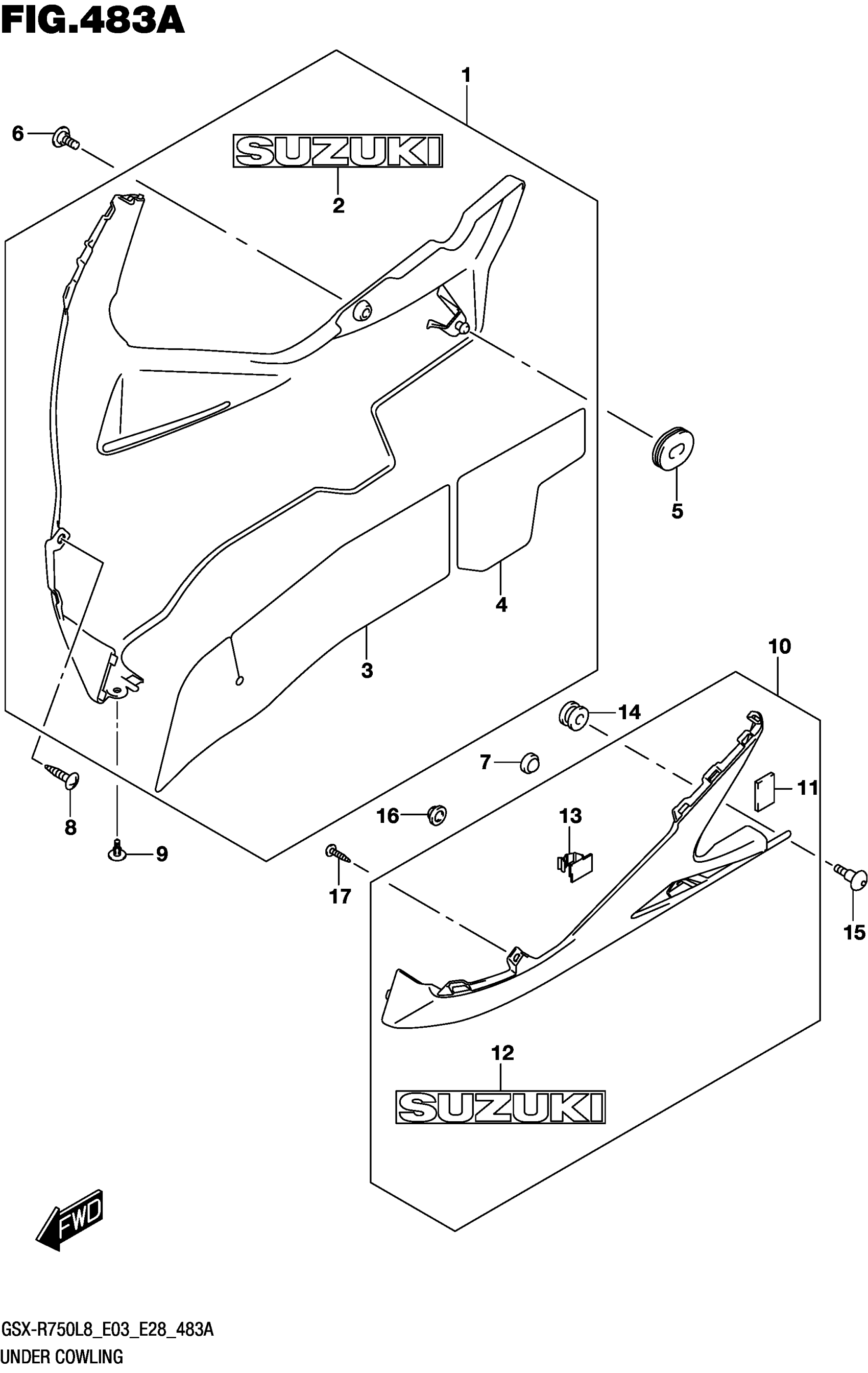

Suzuki GSX-R750L8 (2018) UNDER COWLING Diagram

#

Description
Price

1-1

COWLING, UNDER RH (BLACK) | FOR YSF

94470-14J00-4UX

$310.98

1-2

COWLING, UNDER RH (RED) | FOR AV4

94470-14J00-YYG

$339.58

1-3

COWLING,UNDER RH (GRAY) | FOR BD7

94470-14J00-QEB

$291.38

2-1

.EMBLEM (WHITE) | FOR 4UX,YYG

68181-33C20-YWW

$28.72

2-2

.EMBLEM (BLACK) | FOR QEB

68181-33C20-019

$26.75

3

.SHIELD,UNDER COWL HEAT,R

94479-14J00

$16.50

4

.SHIELD,UNDER COWL HEAT,R

94479-14J10

$15.23

5

CUSHION | RH

94478-14J00

$5.92

6

SCREW,UNDER COWL,R (5X13) | RH

94476-14J00

$4.49

7

CUSHION

09321-10018

$5.45

8

SCREW

03541-0512A

$1.49

9

CLIP

94479-35F00

$5.62

10-1

COWLING COMP,UN | FOR YSF This part replaces 94480-14J00-4UX.

94480-14J01-4UX

$281.20

10-2

COWLING,UNDER,L | FOR AV4 This part replaces 94480-14J00-YYG.

94480-14J01-YYG

$331.42

10-3

COWLING,UNDER,L (GRAY) | FOR BD7 This part replaces 94480-14J00-QEB.

94480-14J01-QEB

$271.62

11

.CUSHION,BRACKET NO.1 This part replaces 47161-10FA0.

47161-10FA1

$4.82

12-1

.EMBLEM (WHITE) | FOR 4UX,YYG

68181-33C20-YWW

$28.72

12-2

.EMBLEM (BLACK) | FOR QEB

68181-33C20-019

$26.75

13

.CLAMP

09403-14311

$5.33

14

CUSHION | LH

09320-09016

$1.97

15

BOLT (6X20) | LH

09139-06190

$4.17

16

CUSHION

09321-10018

$5.45

17

SCREW

03541-0512A

$1.49

18

COLOR :

SPECIAL NOTE

Unavailable

18

AV4=YYG(RED),YVB(BLACK)

SPECIAL NOTE

Unavailable

18

BD7=QEB(GRAY),YVB(BLACK)

SPECIAL NOTE

Unavailable
