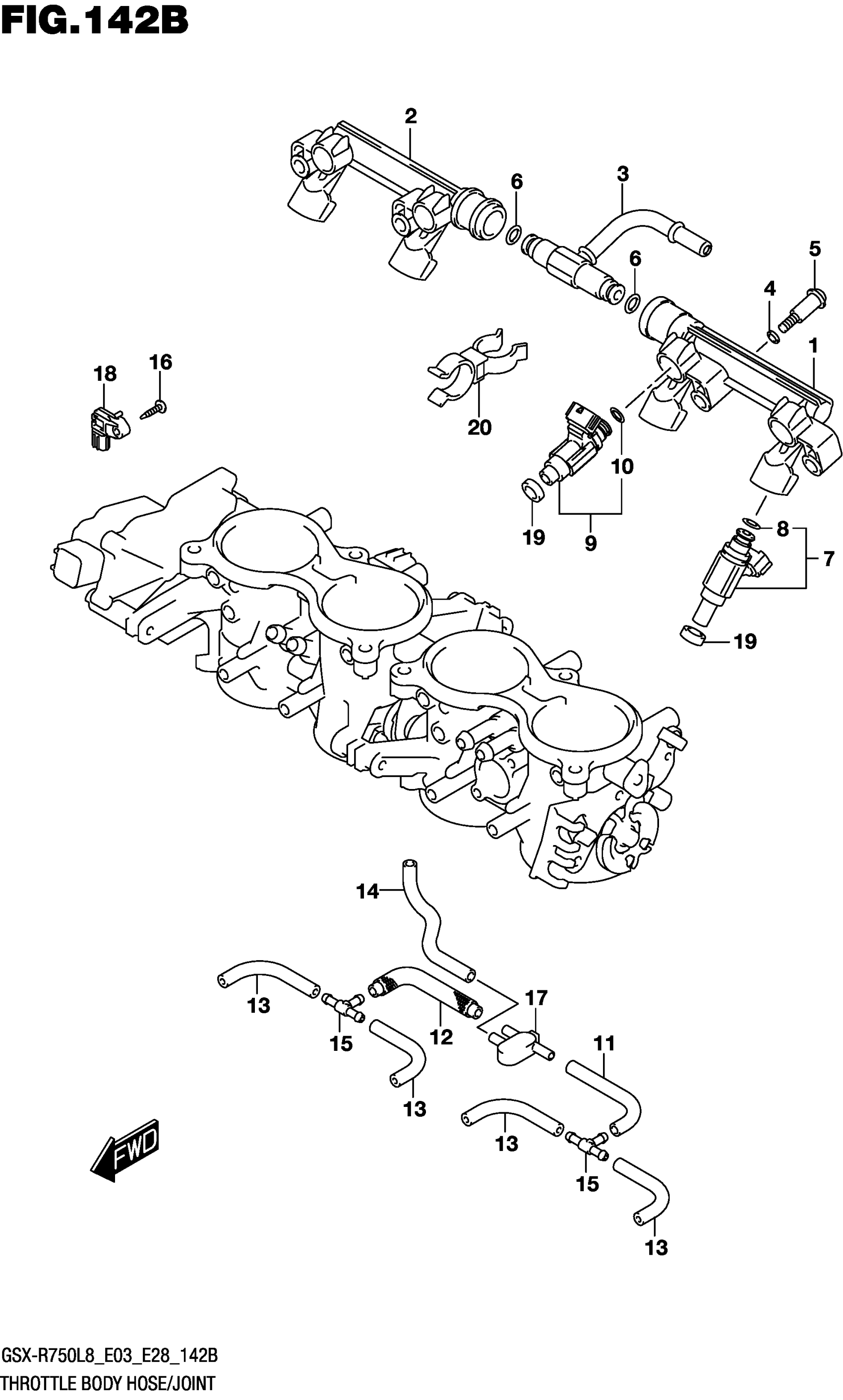

Suzuki GSX-R750L8 (2018) THROTTLE BODY HOSE/JOINT (GSX-R750L8 E28) Diagram

Description

Price

DELIVERY PIPE

13473-14J00

Unavailable

DELIVERY PIPE

13473-14J10

Unavailable

NIPPLE ASSY

13473-29G00

$108.60

PACKING This part replaces 13602-29G00.

13602-29G01

$2.52

SCREW

13601-29G00

$3.22

O-RING

15721-08J00

$11.88

INJECTOR ASSY

15710-14J00

$371.32

.O-RING

15717-58B00

$9.11

INJECTOR ASSY

15710-14J10

Unavailable

.O-RING

15717-58B00

$9.11

HOSE This part replaces 13683-14J00.

13683-14J01

$8.72

HOSE This part replaces 13683-14J10.

13683-14J11

$10.42

HOSE (L:425) This part replaces 13683-10F60.

13683-10F61

$19.30

HOSE This part replaces 13683-29G00.

13683-29G01

$9.15

3WAY,VACUUM HOSE

13685-02FA0

$7.95

SCREW

13437-14J00

Unavailable

JOINT

13471-18H00

$11.83

SENSOR,BOOST

15620-29G00

$304.30

SEAL

15722-14J00

$10.70

CLAMP

09408-00262

Unavailable
