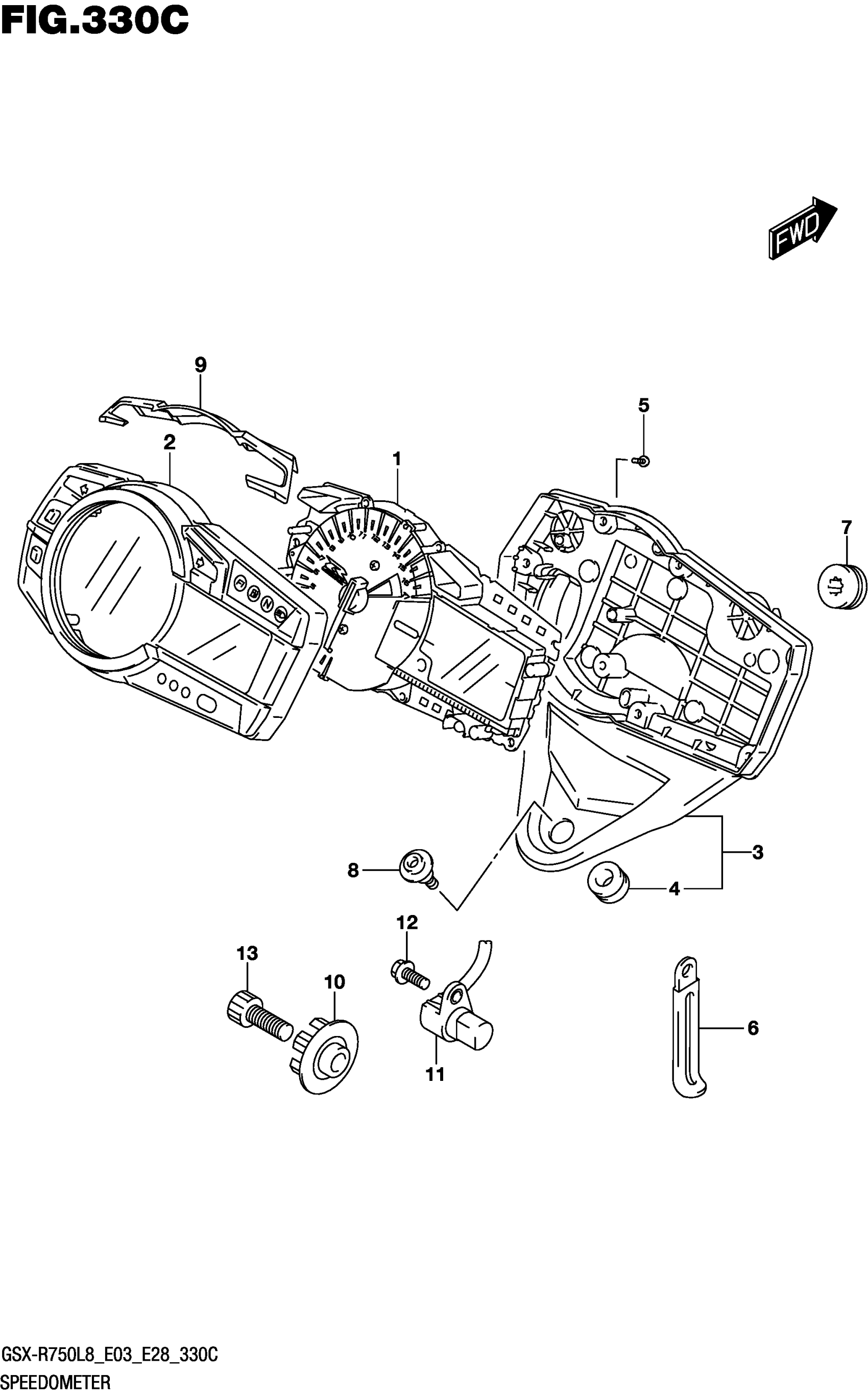

Suzuki GSX-R750L8 (2018) SPEEDOMETER (GSX-R750L8 E33) Diagram

#

Description
Price

1

SPEEDOMETER

34120-15J10

$1,105.72

2

CASE ASSY,UPR

34150-47H00

$168.77

3

LWR CASE ASSY

34111-14J00

$89.67

4

.CUSHION

34955-33E00

$3.56

5

SCREW (3X16)

09132-03008

$1.53

6

CLAMP (L:45)

09404-06429

$1.83

7

CUSHION,SPEEDOMETER This part replaces 34955-13E00.

34955-13E01

$2.92

8

SCREW

34149-18G00

$2.53

9

PLATE

34157-47H00

$29.52

10

ROTOR,SPEED

34981-38G01

$17.92

11

SENSOR, SPEED

34990-35F00

$127.72

12

BOLT

07120-0512A

$2.28

13

BOLT

07130-0825A

$3.04
