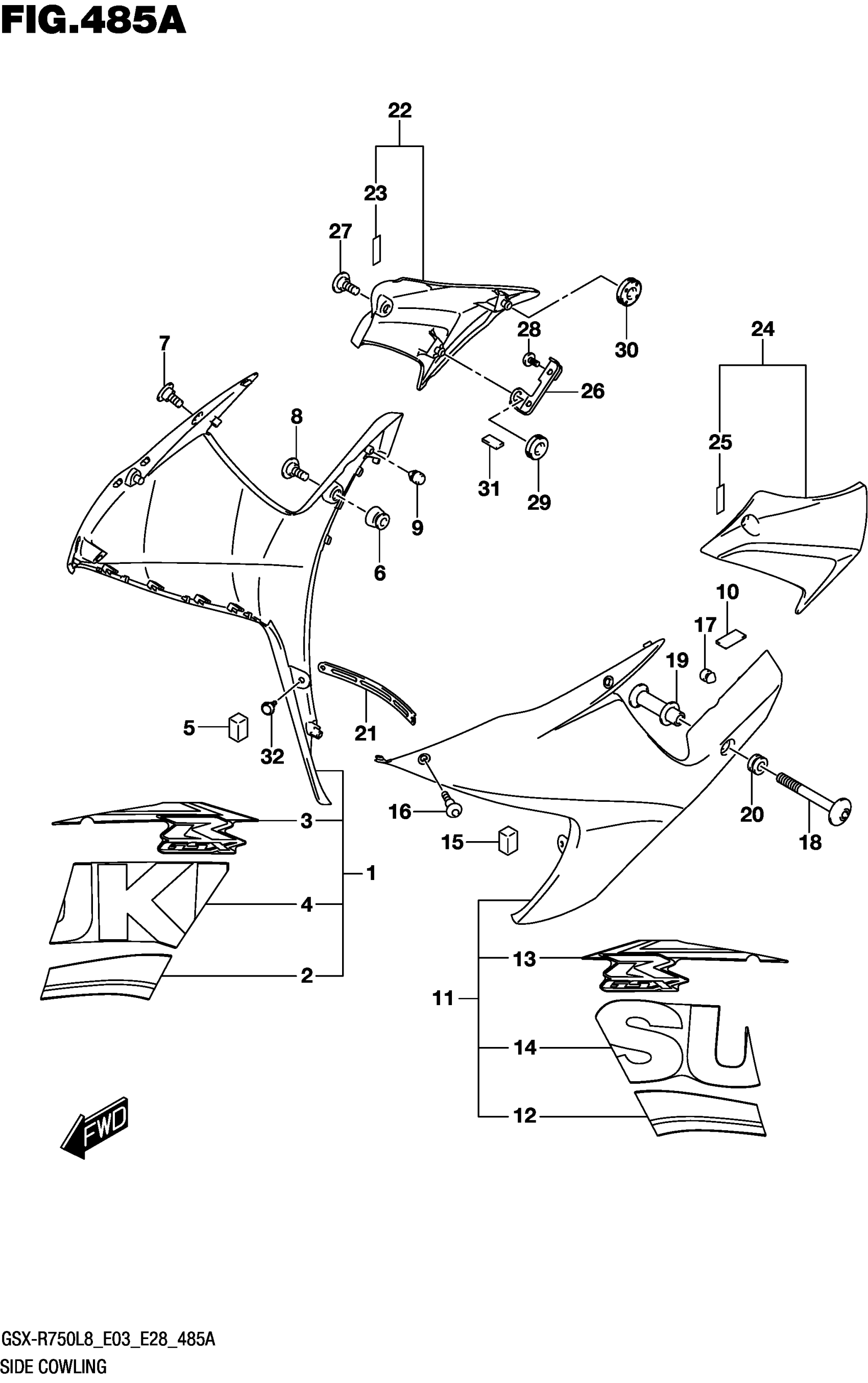

Suzuki GSX-R750L8 (2018) SIDE COWLING (YSF) Diagram

#

Description
Price

1

COWLING, SIDE RH (BLUE)

94450-14J90-YSF

$503.05

2

.TAPE, SIDE COWLING LOWER RH | FOR YSF

68685-14JA0-BDH

$37.13

2

(BLUE/WHITE)

68685-14JA0-BDH

$37.13

3

.TAPE, SIDE COWLING UPPER RH | FOR YSF

68685-14J80-BDJ

$48.50

3

(BLUE/WHITE)

68685-14J80-BDJ

$48.50

4

.TAPE, SIDE COWLING RH | FOR YSF

68685-14J90-AGQ

$42.50

4

(BLUE/WHITE)

68685-14J90-AGQ

$42.50

5

CUSHION,SIDE COWL FR

94477-14J01

$11.82

6

CUSHION, SIDE COWLING RH

94479-15H00

$4.22

7

SCREW (5X13)

09139-05064

$2.56

8

BOLT (6X20)

09139-06190

$3.77

9

CUSHION This part replaces 09321-06013.

09321-06036

$1.52

10

PROTECTOR, SIDE COWLING LH | CUT AS REQUIRED

44543-10G00

$5.23

11

COWLING, SIDE LH (BLUE)

94460-14J90-YSF

$503.05

12

.TAPE, SIDE COWLING LOWER LH | FOR YSF

68695-14JA0-BDH

$37.13

12

(BLUE/WHITE)

68695-14JA0-BDH

$37.13

13

.TAPE, SIDE COWLING UPPER LH | FOR YSF

68695-14J80-BDJ

$48.50

13

(BLUE/WHITE)

68695-14J80-BDJ

$48.50

14

.TAPE, SIDE COWLING LH | FOR YSF

68695-14J90-AGQ

$42.50

14

(BLUE/WHITE)

68695-14J90-AGQ

$42.50

15

CUSHION,SIDE COWL FR

94477-14J01

$11.82

16

SCREW (5X13)

09139-05064

$2.56

17

CUSHION This part replaces 09321-06013.

09321-06036

$1.52

18

SCREW,SIDE COWL,L

94488-14J00

$3.38

19

SPACER,SIDE COWL,L

94489-14J00

$10.26

20

CUSHION | LH

09320-09016

$1.97

21

PLATE,UNDER COWL CTR

94498-14J00

$16.06

22

COVER,SIDE COWLING,R

94570-14J00

$17.28

23

.TAPE (6X25X0.13)

94443-06G00

$2.97

24

COVER,SIDE COWLING,L

94580-14J00

$17.28

25

.TAPE (6X25X0.13)

94443-06G00

$2.97

26

BRACKET,COVER SIDE,R

94491-14J00

$11.28

27

SCREW (5X13)

09139-05064

$2.56

28

SCREW (6X12)

09139-06062

$3.30

29

CUSHION (8X22X7) This part replaces 09320-08013.

09320-08509

$1.91

30

CUSHION

09320-08028

$2.80

31

CUSHION, BRACKET COVER RH

94612-31F00

$5.62

32

CLIP, UNDER CTR

94479-35F00

$5.14
