Description

Price

1

FENDER,RR FR

63111-14J00

$153.65

2

BOLT (6X12)

09111-06107

$2.66

3

COVER,RR FENDER FR This part replaces 63112-14J01.

63112-14J10

$36.72

4

FENDER,RR RR

63113-14J01

$128.43

5

BOLT (6X17.8)

09111-06072

$2.01

6

CUSHION

44556-33H00

$7.01

7

FENDER,RR LWR

63114-14J01

$61.17

8

SCREW (6X16)

09139-06158

$4.42

9

WASHER (6.5X20X1.2)

09160-06077

$1.89

10

TOOL ASSY This part replaces 09800-21056.

09800-21100

Unavailable

11

O RING (D:3.5,ID:56.5)

09280-57003

Unavailable

12

FASTENER, REAR FENDER

44572-37H00

$9.01

13

HEXAGON SPANNER, 5

09816-00059

$9.18

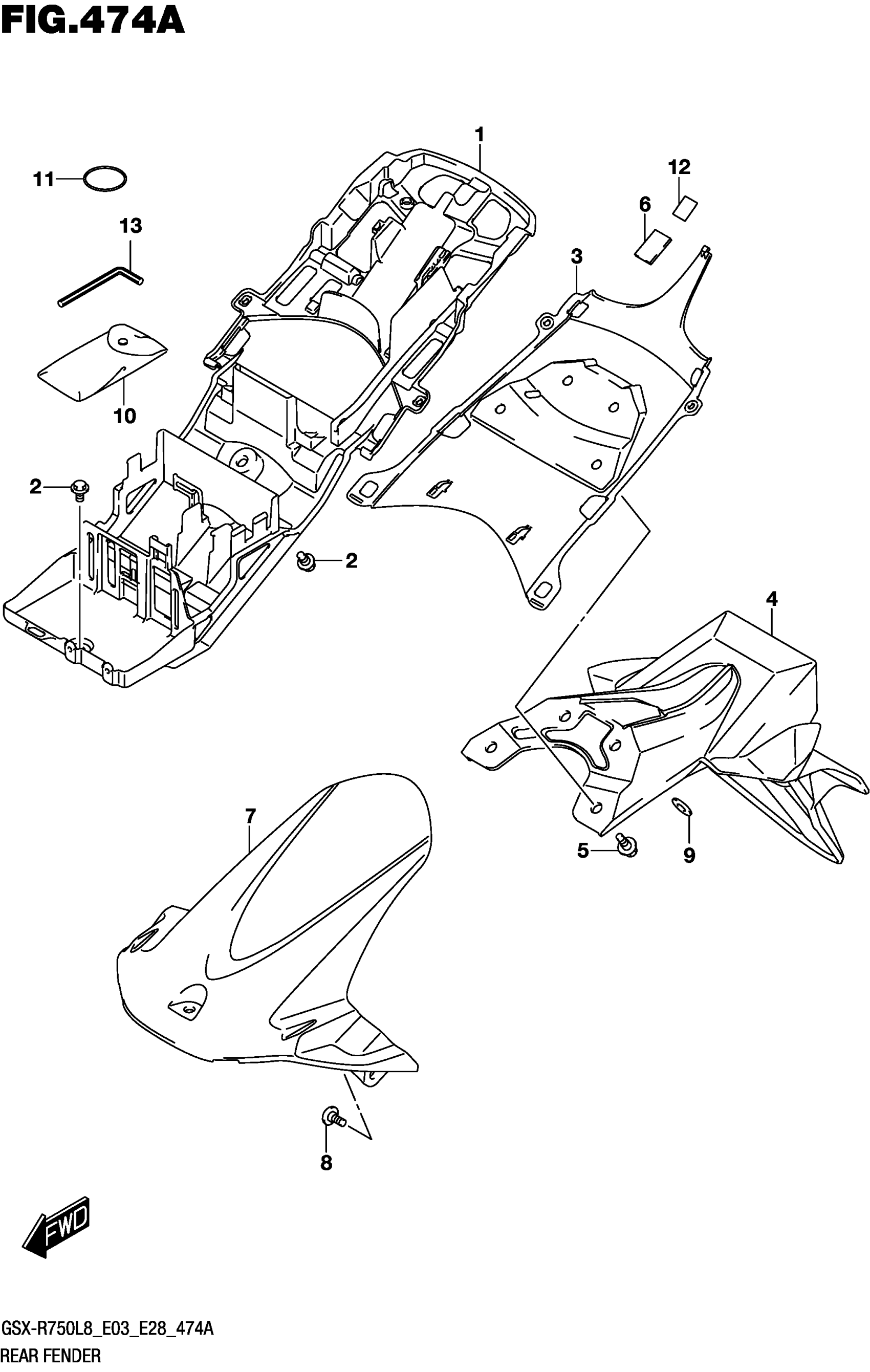

Suzuki GSX-R750L8 (2018) REAR FENDER Diagram
