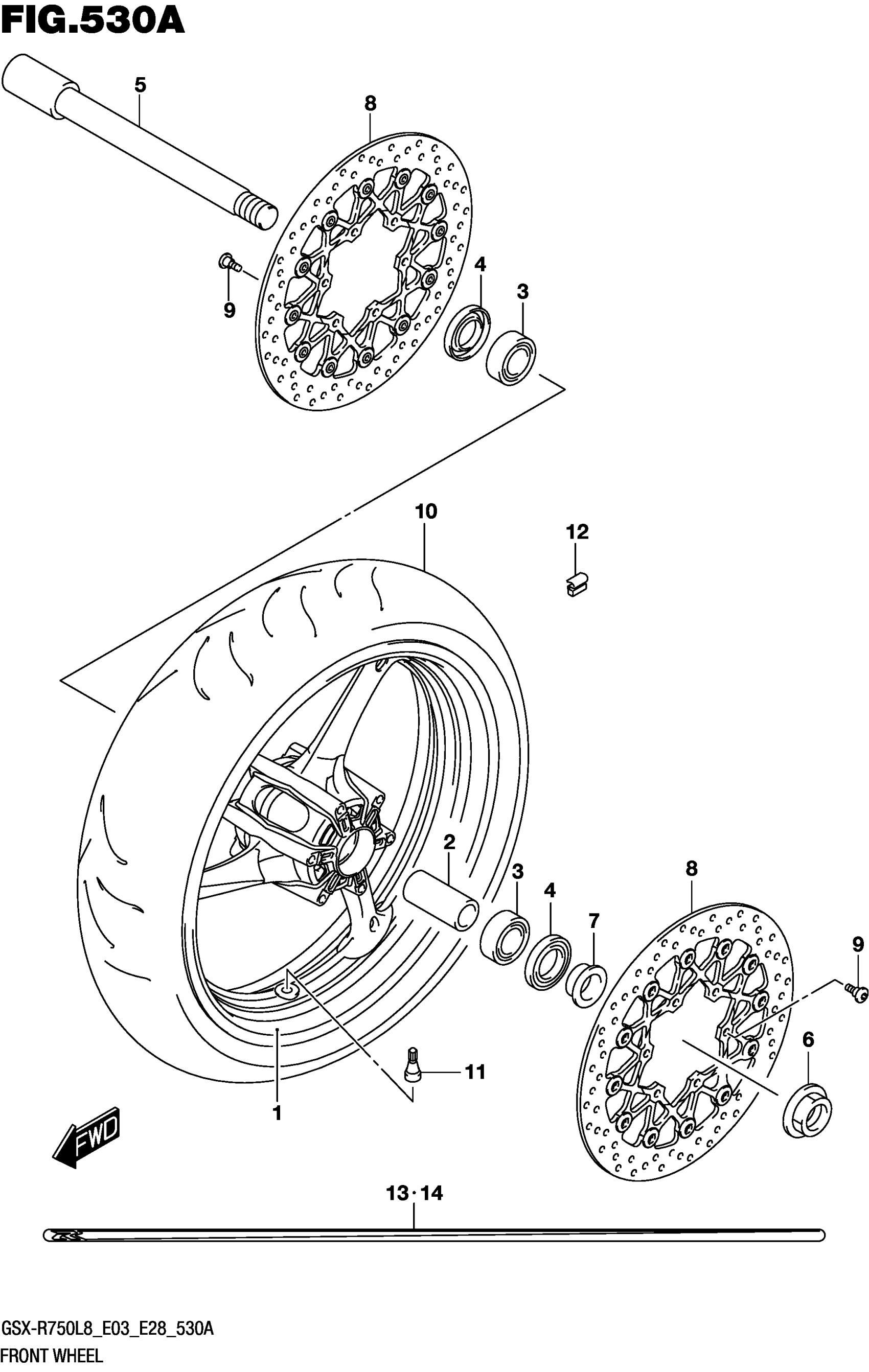

Suzuki GSX-R750L8 (2018) FRONT WHEEL Diagram

#

Description
Price

1-1

WHEEL, FRONT (17M/CXMT3.50) | FOR YSF

54111-14J00-019

$1,068.43

1-1

(BLACK)

54111-14J00-019

$1,068.43

1-2

WHEEL,FR (17M/CXMT3.50,RED) | FOR AV4

54111-14J00-QGY

$814.47

1-2

WHEEL,FR (17M/CXMT3.50,RED)

54111-14J00-QGY

$814.47

1-3

WHEEL, FRONT (17M/CXMT3.50) | FOR BD7

54111-14J00-12Z

$842.85

1-3

(SILVER)

54111-14J00-12Z

$842.85

2

SPACER, HUB BEARING

54731-14J00

$19.75

3

BEARING This part replaces 09262-22035.

09262-22049

$39.53

4

SEAL,OIL This part replaces 09283-28016.

09283-28028

$8.24

5

AXLE,FR

54711-14J00

$160.82

6

NUT, AXLE

62994-47H00

$39.56

7

SPACER,FR AXLE,L

54751-14J00

$16.79

8

DISC,FR BRAKE

59210-37H01

$531.02

9

BOLT (6X21)

09106-06124

$3.08

10

TIRE, FRONT

55110-15J00

$561.52

10

(120/70ZR17M/C, 58W BATTLAX

55110-15J00

$561.52

10

BT016F G BRIDGESTONE)

55110-15J00

$561.52

11

VALVE ASSY, WHEEL RIM (TR412)

43130-24A00

$8.10

12-1

BALANCER, WHEEL NO.1 | 10G

55411-22H00

$9.70

12-2

BALANCER, WHEEL NO.2 | 20G

55412-22H00

$11.37

12-3

BALANCER, WHEEL NO.3 | 30G

55413-22H00

$12.93

13

TAPE, RH (BLACK/ORANGE) | FOR YSF

68251-17K00-A29

$68.50

14

TAPE, LH (BLACK/ORANGE) | FOR YSF

68252-17K00-A29

$68.50

15

COLOR :

SPECIAL NOTE

Unavailable

15

AV4=YYG(RED),YVB(BLACK)

SPECIAL NOTE

Unavailable

15

BD7=QEB(GRAY),YVB(BLACK)

SPECIAL NOTE

Unavailable
