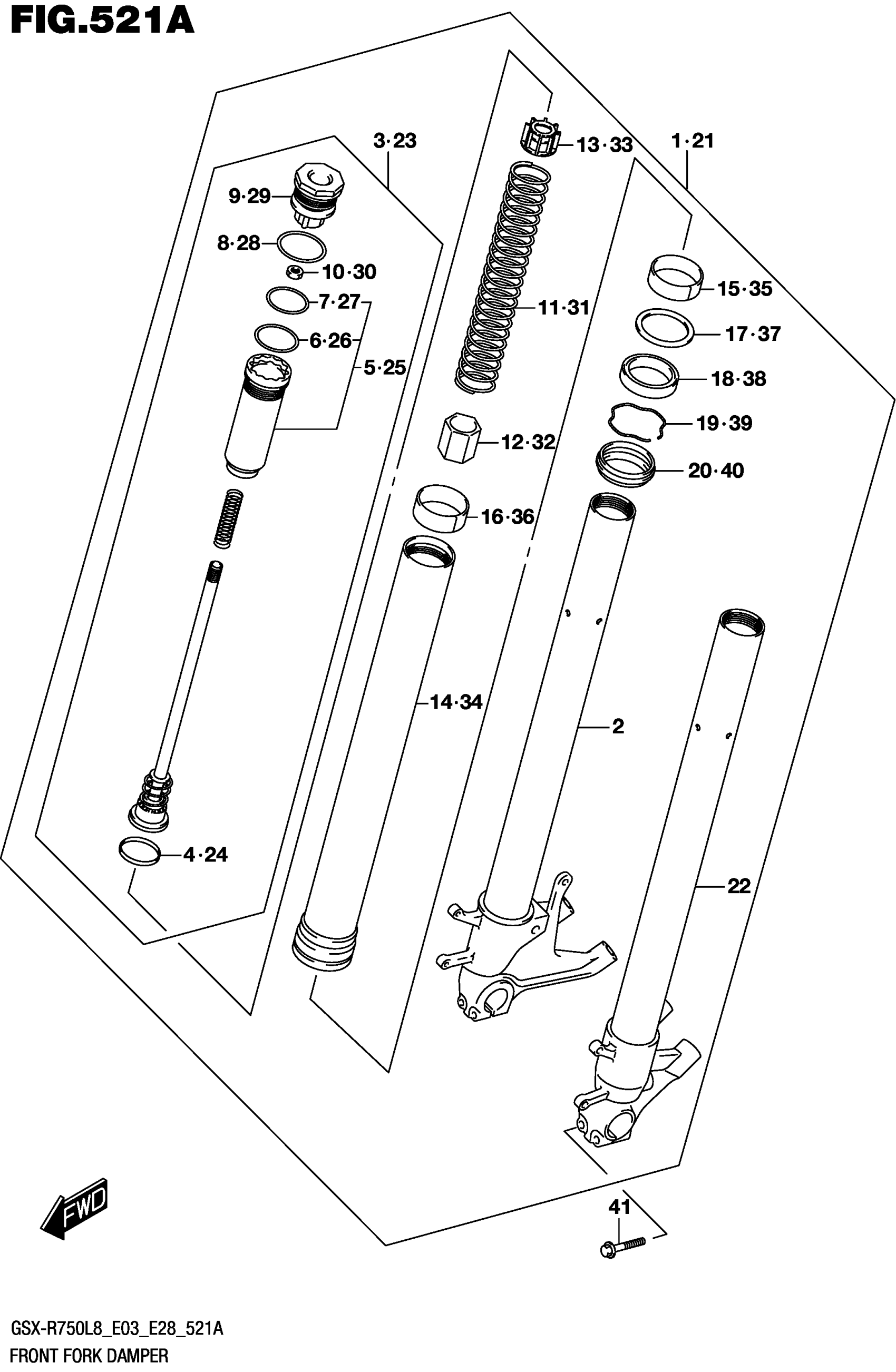

Suzuki GSX-R750L8 (2018) FRONT FORK DAMPER Diagram

#

Description
Price

1

DAMPER FRONT,R This part replaces 51103-15J10.

51103-15J11

$1,924.75

2

.TUBE,INNER,R

51110-14J00

$959.40

3

.ROD, PISTON

52110-15J00

Unavailable

4

..RING, PISTON

51118-14J00

$8.64

5

..CASE, ROD GUIDE

51174-14J00

$170.68

6

...PISTON RING

51118-14J10

$59.64

7

...O-RING

51187-14J00

$3.34

8

..O-RING,FORK BOLT

51187-01H00

$6.21

9

..BOLT

51189-14J00

$208.25

10

..NUT

51827-29G00

Unavailable

11

.SPRING

51171-15J10

$176.90

12

.COLLAR, SPRING

51176-14J10

$28.13

13

.COLLAR, SPRING

51175-14J00

$10.82

14

.TUBE, OUTER

51131-15J00

$761.62

15

.BUSH, GUIDE

51152-01H10

$16.70

16

.BUSH, SLIDE

51152-14J00

$13.01

17

.SPACER, SEAL

51168-38B00

$6.12

18

.SEAL, OIL

51153-01H10

$24.63

19

.RING, STOPPER

51556-38B00

$6.61

20

.SEAL, DUST

51173-01H00

$10.66

21

DAMPER FRONT,L This part replaces 51104-15J10.

51104-15J11

$1,629.67

22

.TUBE,INNER,L

51120-14J00

$977.50

23

.ROD, PISTON

52110-15J00

Unavailable

24

..RING, PISTON

51118-14J00

$8.64

25

..CASE, ROD GUIDE

51174-14J00

$170.68

26

...PISTON RING

51118-14J10

$59.64

27

...O-RING

51187-14J00

$3.34

28

..O-RING,FORK BOLT

51187-01H00

$6.21

29

..BOLT

51189-14J00

$208.25

30

..NUT

51827-29G00

Unavailable

31

.SPRING

51171-15J10

$176.90

32

.COLLAR, SPRING

51176-14J10

$28.13

33

.COLLAR, SPRING

51175-14J00

$10.82

34

.TUBE, OUTER

51131-15J00

$761.62

35

.BUSH, GUIDE

51152-01H10

$16.70

36

.BUSH, SLIDE

51152-14J00

$13.01

37

.SPACER, SEAL

51168-38B00

$6.12

38

.SEAL, OIL

51153-01H10

$24.63

39

.RING, STOPPER

51556-38B00

$6.61

40

.SEAL, DUST

51173-01H00

$10.66

41

BOLT

51321-36F00

$5.44
