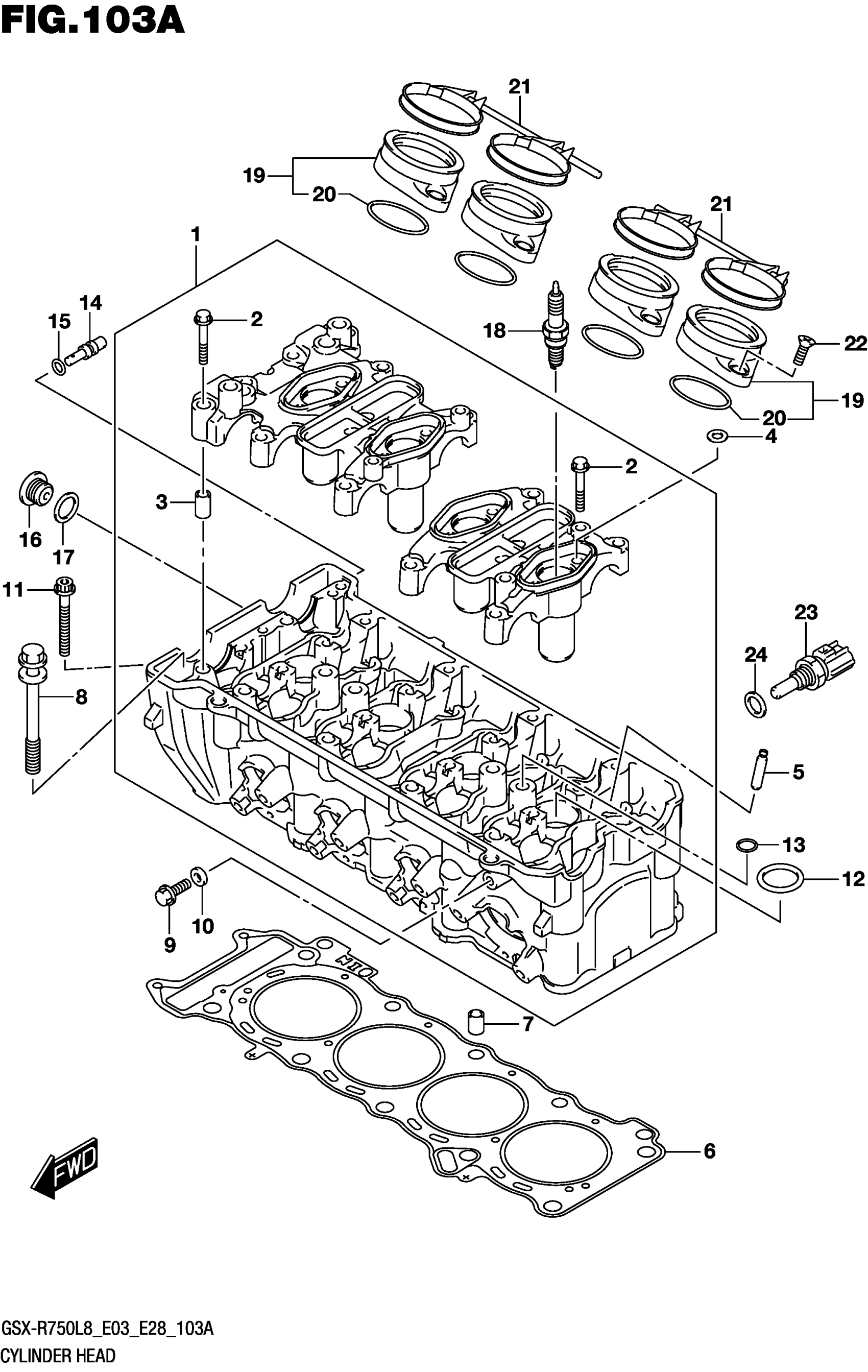

Suzuki GSX-R750L8 (2018) CYLINDER HEAD Diagram

#

Description
Price

1

HEAD ASSY,CYLINDER

11100-38H00

$2,612.30

2

.BOLT (6X40)

09103-06266

$2.13

3

.PIN (6.2X8X16)

09206-08007

$2.62

4

GASKET (6.2X13X1.2)

09168-06018

$1.70

5

GUIDE, VALVE (OS:0.3) | OPT

11115-29G70

$30.95

6

GASKET, CYLINDER HEAD

11141-02H00

$70.67

7

PIN

04211-11169

$1.77

8

BOLT (10X95)

11117-29G00

$8.18

9

BOLT

01550-0612A

$1.97

10

GASKET (5.8X13X1.2)

09168-06023

$2.01

11

BOLT

07120-0650A

$2.90

12

O-RING

11179-81402

$3.79

13

O RING (D:2.4,ID:10.8)

09280-11001

$1.99

14

JET, OIL GALLERY (8)

09493-80005

$17.57

15

O RING (D:1.2,ID:4)

09280-04004

$1.76

16

PLUG (16X8)

09248-16012

$4.19

17

GASKET (16X22X0.8)

09168-16009

$2.50

18-1

SPARK PLUG (DENSO, IU27D)

09482-00557

$15.20

18-2

SPARK PLUG (NGK, CR9EIA-9)

09482-00558

$10.79

18-3

SPARK PLUG (DENSO, IU24D) | OPT

09482-00555

$16.44

18-4

SPARK PLUG (NGK, CR8EIA-9) | OPT

09482-00556

$9.65

18-5

SPARK PLUG (DENSO, IU31D) | OPT

09482-00559

$21.92

18-6

SPARK PLUG (NGK, CR10EIA-9) | OPT

09482-00560

$9.93

19

PIPE ASSY,INTAKE This part replaces 13101-15J00.

13101-15J01

$49.97

20

.O-RING (D:2.4,ID:47X42) This part replaces 09280-46006.

09280-46007

$6.33

21

CLAMP, INTAKE PIPE

13826-02H12

$24.00

22

BOLT (6X18.4)

09120-06007

$2.90

23

SENSOR, WATER TEMPERATURE

13650-49X00

$82.56

24

GASKET (12X17X1)

09168-12017

$1.97
