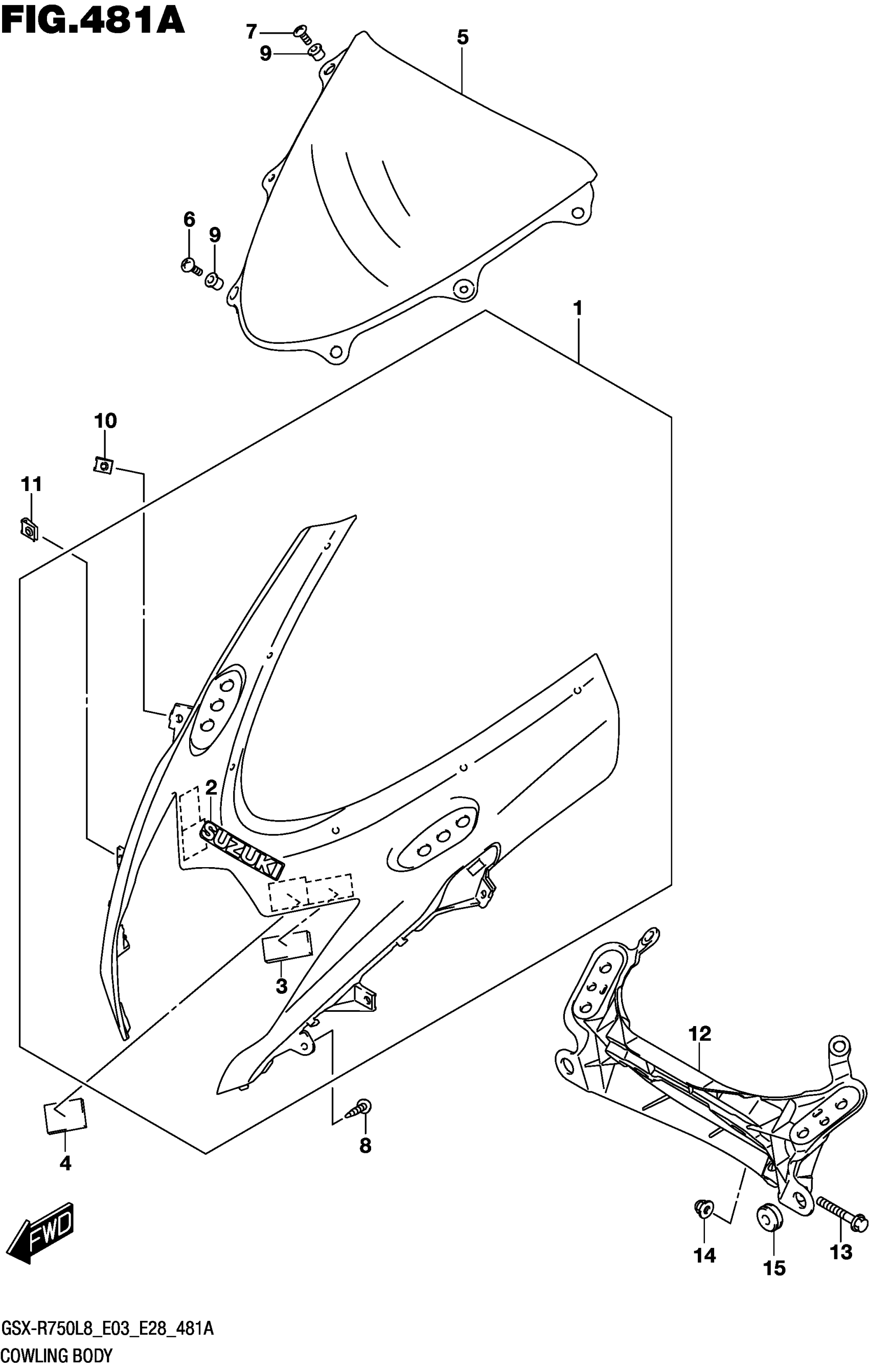

Suzuki GSX-R750L8 (2018) COWLING BODY Diagram

#

Description
Price

1-1

COWLING,BODY | FOR YSF This part replaces 94410-14J10-6CX.

94410-14J12-6CX

$195.67

1-2

COWLING,BODY (BLACK) | FOR AV4 This part replaces 94410-14J10-44X.

94410-14J12-44X

$196.62

1-3

COWLING,BODY | FOR BD7 This part replaces 94410-14J10-ACX.

94410-14J12-ACX

$203.90

2-1

.EMBLEM,"SUZUKI" (WHITE) | FOR 6CX,44X This part replaces 68641-19F00-YWW.

68641-19F01-YWW

$9.99

2-2

EMBLEM,"SUZUKI" | FOR ACX This part replaces 68641-19F00-YVZ.

68641-19F01-YVZ

$8.65

3

.CUSHION

92146-14J00

$4.88

4

FASTENER

44572-02F01

$11.07

5

WINDSCREEN

94611-14J00

$107.99

6

SCREW (5X18)

09125-05133

$2.19

7

SCREW (5X15)

09125-05134

$2.22

8

SCREW

03541-0516A

$1.49

9

NUT

09159-05019

$7.14

10

NUT

09148-05052

$3.37

11

NUT (M5)

09148-05047

$2.11

12

BRACE,COWLING

94511-14J00

$278.88

13

BOLT (8X45)

09103-08207

$2.51

14

NUT

08313-2008A

$2.50

15

CUSHION (8.5X23X9.5) This part replaces 09320-08047.

09320-08518

$2.60

16

COLOR :

SPECIAL NOTE

Unavailable

16

AV4=YYG(RED),YVB(BLACK)

SPECIAL NOTE

Unavailable

16

BD7=QEB(GRAY),YVB(BLACK)

SPECIAL NOTE

Unavailable
