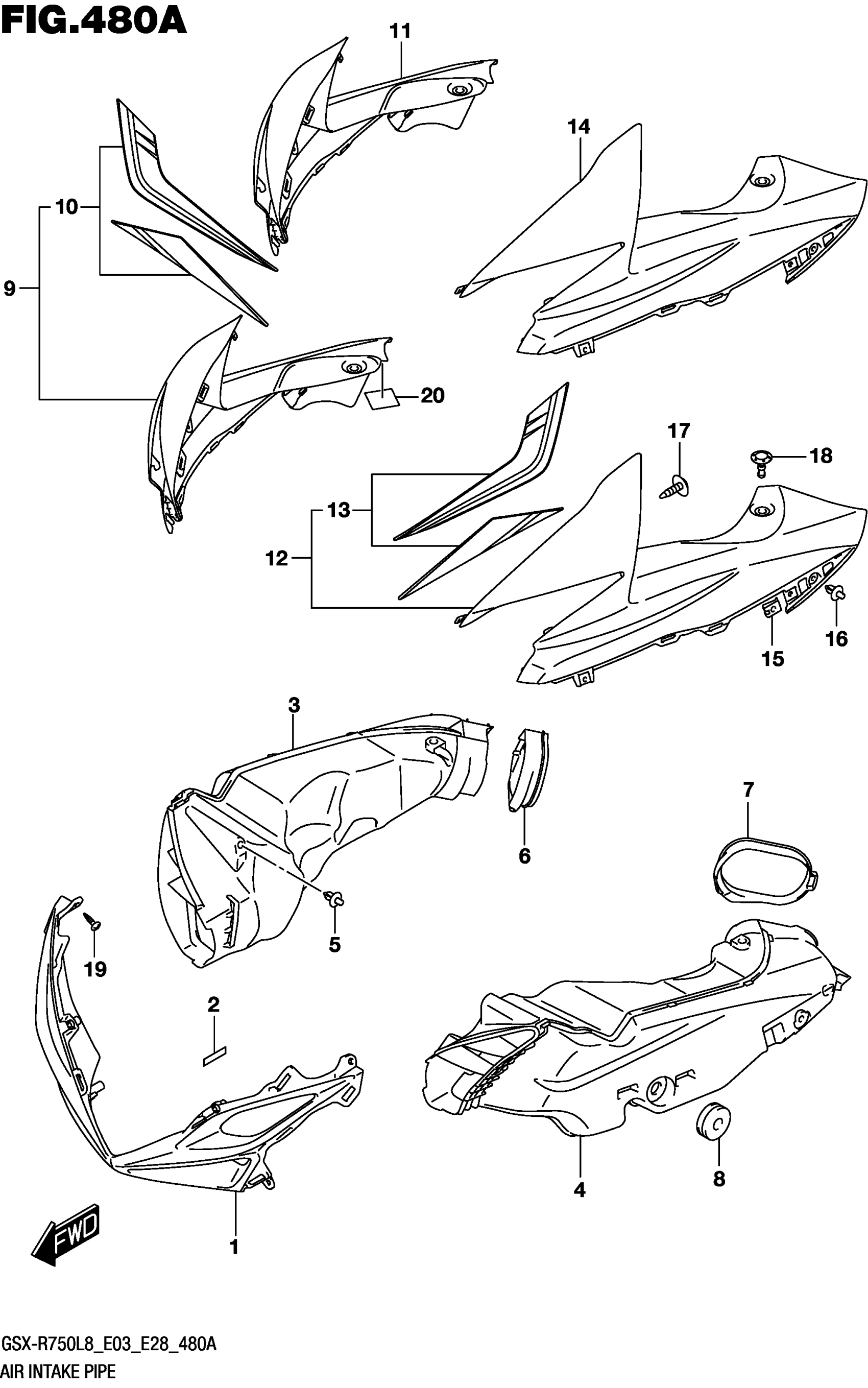

Suzuki GSX-R750L8 (2018) AIR INTAKE PIPE Diagram

#

Description
Price

1-1

COVER, INTAKE FRONT (BLACK) | FOR YSF,BD7

94671-14J10-YKV

$251.25

1-2

COVER,INTAKE (RED) | FOR AV7

94671-14J10-YYG

$203.38

2

TAPE

94443-06G00

$2.97

3

PIPE,AIR INTAKE,R

94420-14J10

$78.76

4

PIPE,AIR INTAKE,L

94430-14J10

$76.18

5

CLIP (BLACK)

09409-06314-5PK

$2.80

6

MOLDING,AIR INTAKE,R

94423-14J00

$13.13

7

MOLDING,AIR INTAKE,L

94433-14J00

$13.13

8

CUSHION

09320-08028

$2.80

9

COVER COMP,INTA | FOR YSF This part replaces 94670-14J20-YSF.

94670-14J21-YSF

$193.28

10

.TAPE, INTAKE COVER RH | FOR YSF

68270-14J10-BDH

$39.80

10

(BLUE/WHITE)

68270-14J10-BDH

$39.80

11

COVER,INTAKE,R | FOR AV4,BD7 This part replaces 94672-14J00-YVB.

94672-14J01-YVB

$101.73

12

COVER COMP,INTA | FOR YSF This part replaces 94680-14J20-YSF.

94680-14J21-YSF

$172.03

13

.TAPE, INTAKE COVER LH | FOR YSF

68280-14J10-BDH

$39.80

13

(BLUE/WHITE)

68280-14J10-BDH

$39.80

14

COVER,INTAKE,L | FOR AV4,BD7 This part replaces 94682-14J00-YVB.

94682-14J01-YVB

$143.45

15

NUT

09148-05052

$3.04

16

CLIP (BLACK)

09409-06314-5PK

$2.80

17

SCREW (5X12)

09132-05050

$1.89

18

CLIP, REAR

94479-35F00

$5.14

19

SCREW

03541-0512A

$1.37

20

PROTECTOR (30X80X1.0) This part replaces 33652-13E00.

33652-29F00

$2.80

21

COLOR :

SPECIAL NOTE

Unavailable

21

AV4=YYG(RED),YVB(BLACK)

SPECIAL NOTE

Unavailable

21

BD7=QEB(GRAY),YVB(BLACK)

SPECIAL NOTE

Unavailable
