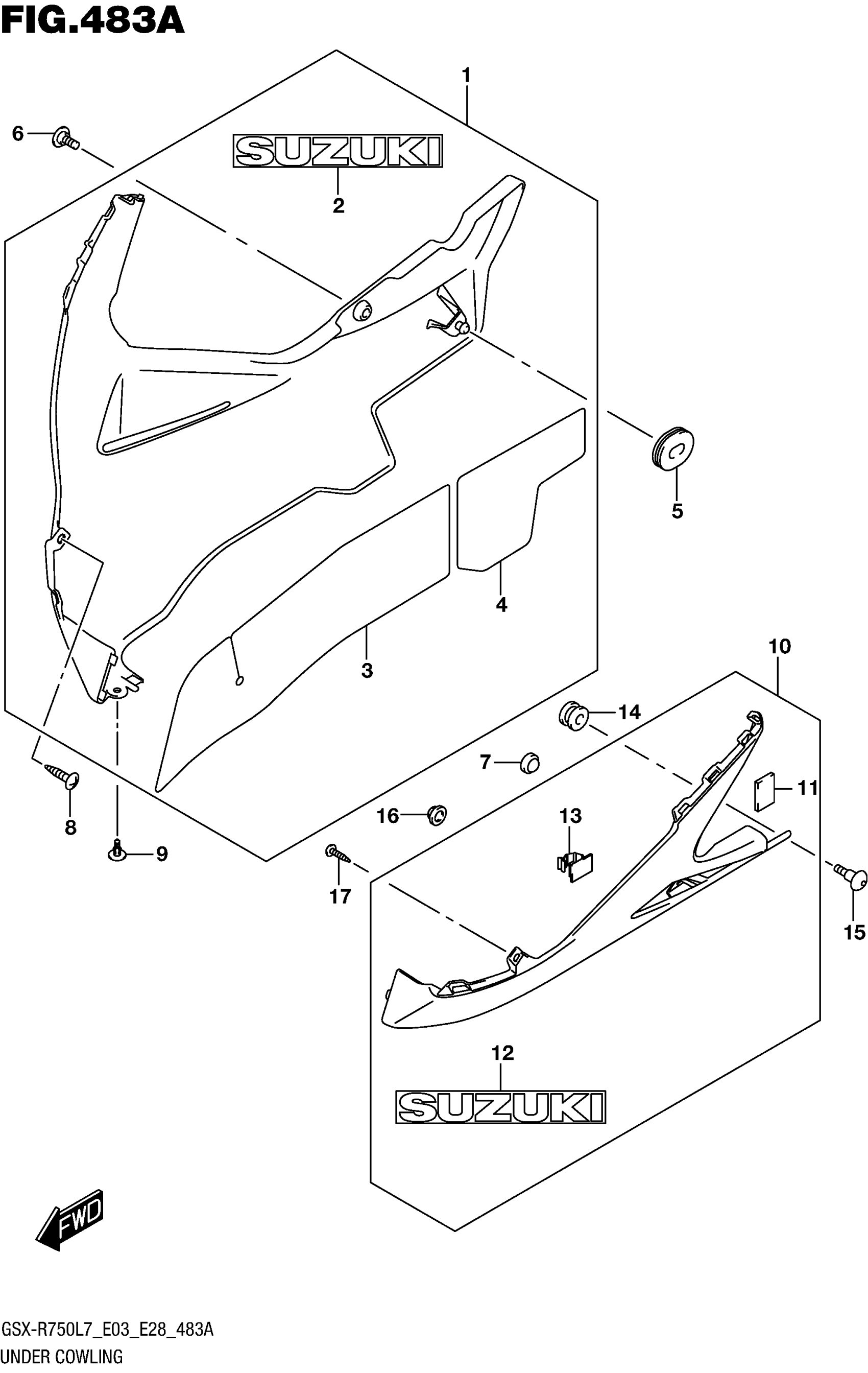

Suzuki GSX-R750L7 (2017) UNDER COWLING Diagram

#

Description
Price

1-1

COWLING, UNDER RH (BLACK) | FOR YSF

94470-14J00-4UX

$349.30

1-2

COWLING, UNDER RH (WHITE) | FOR YWW

94470-14J00-AJX

$345.93

1-3

COWLING, UNDER RH (YELLOW) | FOR KGK

94470-14J00-YMF

$349.30

2-1

.EMBLEM (WHITE) | FOR 4UX

68181-33C20-YWW

$32.42

2-2

.EMBLEM (RED) | FOR AJX

68181-33C20-19A

$36.82

2-3

.EMBLEM (BLACK) | FOR YMF

68181-33C20-019

$25.58

3

.SHIELD,UNDER COWL HEAT,R

94479-14J00

$18.62

4

.SHIELD,UNDER COWL HEAT,R

94479-14J10

$17.20

5

CUSHION | RH

94478-14J00

$5.66

6

SCREW,UNDER COWL,R (5X13) | RH

94476-14J00

$4.29

7

CUSHION

09321-10018

$4.33

8

SCREW

03541-0512A

$1.41

9

CLIP

94479-35F00

$5.38

10-1

COWLING COMP,UN | FOR YSF This part replaces 94480-14J00-4UX.

94480-14J01-4UX

$315.85

10-2

COWLING,UNDER,L | FOR YWW This part replaces 94480-14J00-AJX.

94480-14J01-AJX

$335.82

10-3

COWLING,UNDER,L | FOR KGK This part replaces 94480-14J00-YMF.

94480-14J01-YMF

$355.10

11

.CUSHION,BRACKET NO.1 This part replaces 47161-10FA0.

47161-10FA1

$5.43

12-1

.EMBLEM (WHITE) | FOR 4UX

68181-33C20-YWW

$32.42

12-2

.EMBLEM (RED) | FOR AJX

68181-33C20-19A

$36.82

12-3

.EMBLEM (BLACK) | FOR YMF

68181-33C20-019

$25.58

13

.CLAMP

09403-14311

$5.05

14

CUSHION | LH

09320-09016

$2.01

15

BOLT (6X20) | LH

09139-06190

$3.89

16

CUSHION

09321-10018

$4.33

17

SCREW

03541-0512A

$1.41

18

COLOR :

SPECIAL NOTE

Unavailable

18

KGK=YMF(YELLOW),YVB(BLACK)

SPECIAL NOTE

Unavailable
