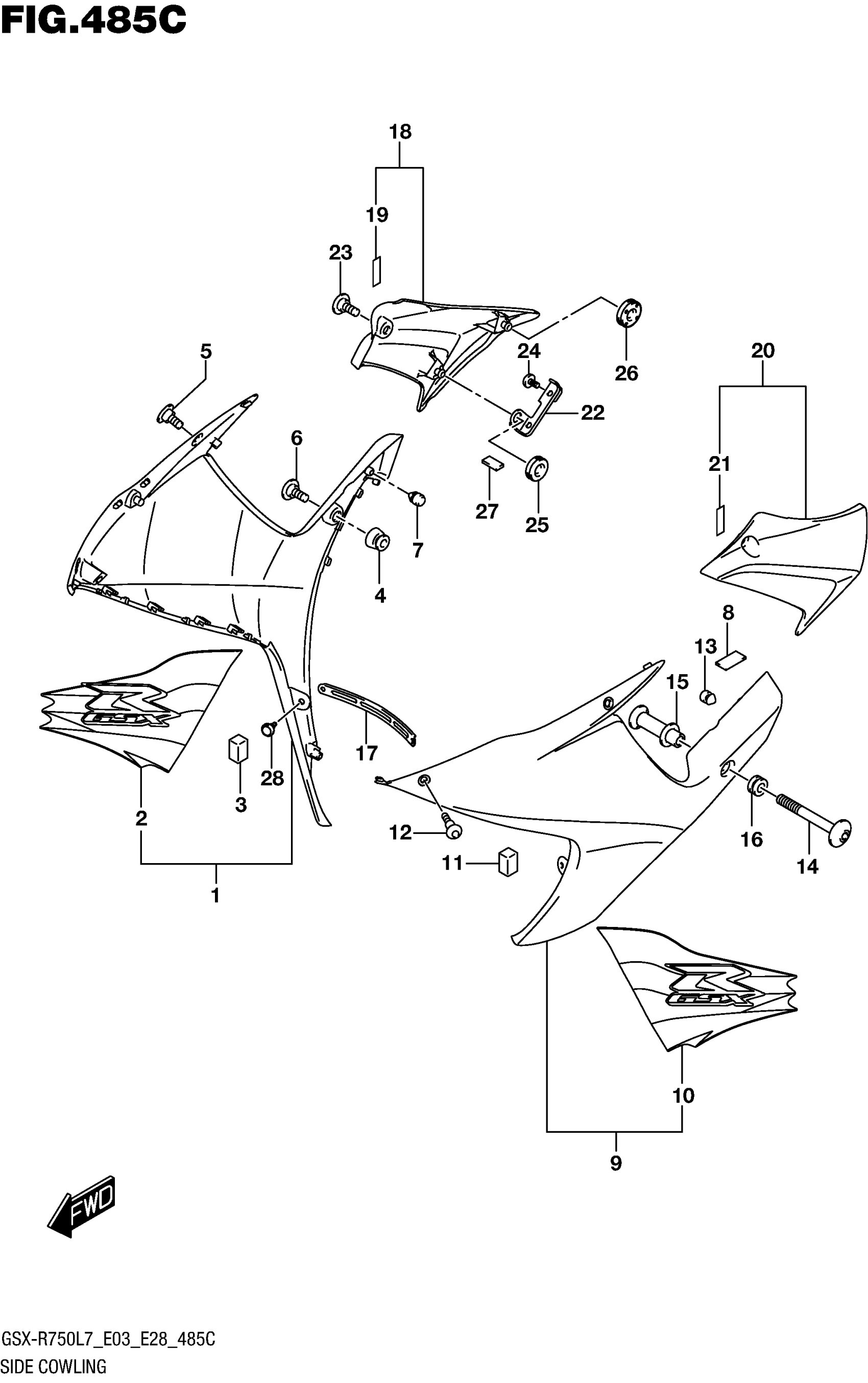

Suzuki GSX-R750L7 (2017) SIDE COWLING (KGK) Diagram

#

Description
Price

1

COWLING, SIDE RH (BLACK)

94450-15J50-YVB

$542.48

2

.TAPE, SIDE COWLING RH | FOR YVB

68685-14J70-BE6

$59.65

2

(GRAY/WHITE)

68685-14J70-BE6

$59.65

3

CUSHION,SIDE COWL FR

94477-14J01

$12.35

4

CUSHION, SIDE COWLING RH

94479-15H00

$4.41

5

SCREW (5X13)

09139-05064

$2.64

6

BOLT (6X20)

09139-06190

$3.89

7

CUSHION This part replaces 09321-06013.

09321-06036

$1.56

8

PROTECTOR, SIDE COWLING LH | CUT AS REQUIRED

44543-10G00

$5.47

9

COWLING, SIDE LH (BLACK)

94460-15J50-YVB

$542.48

10

.TAPE, SIDE COWLING LH | FOR YVB

68695-14J70-BE6

$59.65

10

(GRAY/WHITE)

68695-14J70-BE6

$59.65

11

CUSHION,SIDE COWL FR

94477-14J01

$12.35

12

SCREW (5X13)

09139-05064

$2.64

13

CUSHION This part replaces 09321-06013.

09321-06036

$1.56

14

SCREW,SIDE COWL,L

94488-14J00

$3.53

15

SPACER,SIDE COWL,L

94489-14J00

$10.72

16

CUSHION | LH

09320-09016

$2.01

17

PLATE,UNDER COWL CTR

94498-14J00

$16.79

18

COVER,SIDE COWLING,R

94570-14J00

$18.06

19

.TAPE (6X25X0.13)

94443-06G00

$3.11

20

COVER,SIDE COWLING,L

94580-14J00

$18.06

21

.TAPE (6X25X0.13)

94443-06G00

$3.11

22

BRACKET,COVER SIDE,R

94491-14J00

$11.28

23

SCREW (5X13)

09139-05064

$2.64

24

SCREW (6X12)

09139-06062

$3.30

25

CUSHION (8X22X7) This part replaces 09320-08013.

09320-08509

$1.98

26

CUSHION

09320-08028

$2.82

27

CUSHION, BRACKET COVER RH

94612-31F00

$5.62

28

CLIP, UNDER CTR

94479-35F00

$5.38
