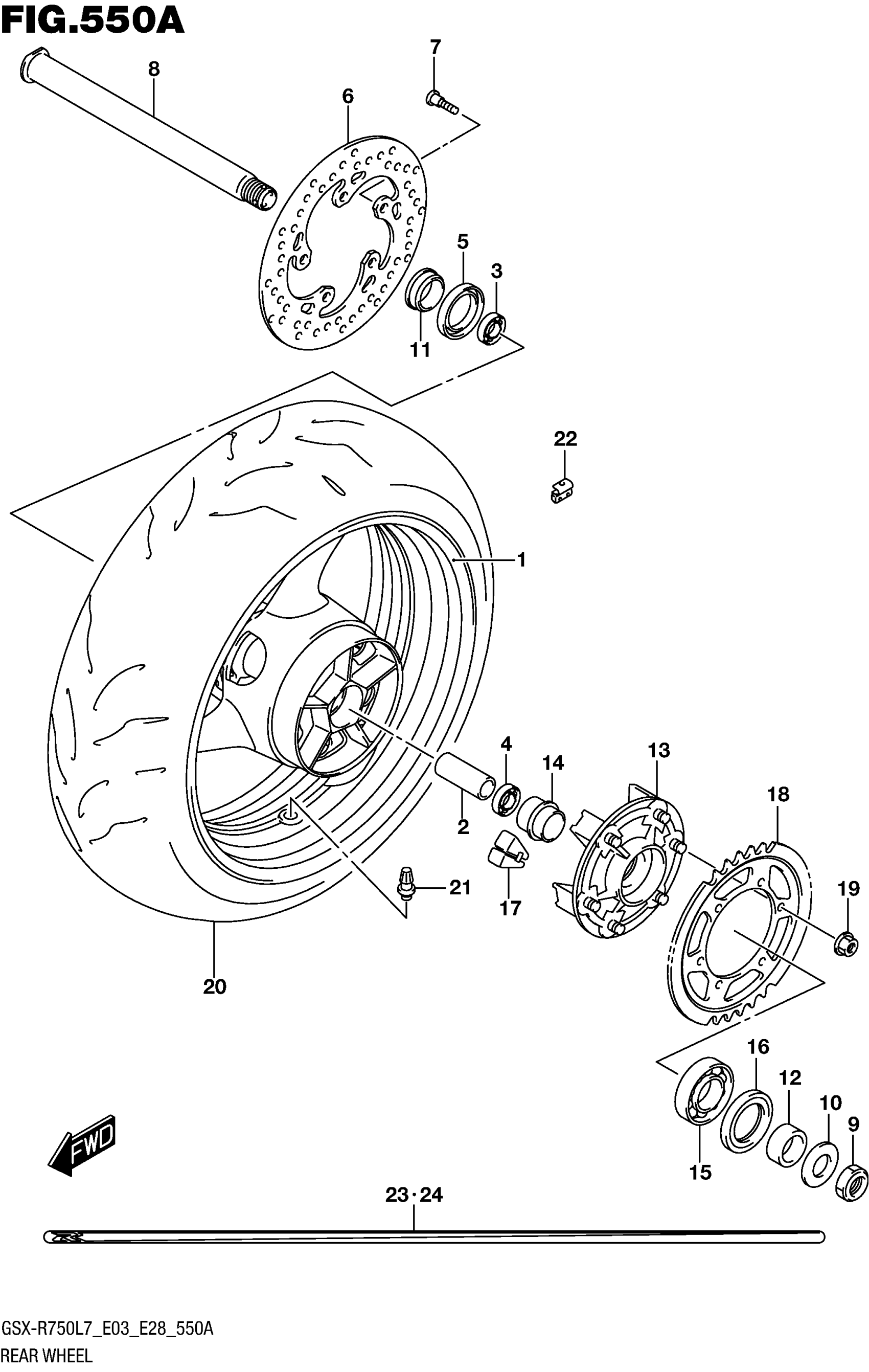

Suzuki GSX-R750L7 (2017) REAR WHEEL Diagram

#

Description
Price

1-1

WHEEL, REAR (17M/CXMT5.50) | FOR YSF,KGK

64111-14J00-019

$1,306.10

1-1

(BLACK)

64111-14J00-019

$1,306.10

1-2

WHEEL, REAR (17M/CXMT5.50) | FOR YWW

64111-14J00-QGY

$995.65

1-2

(RED)

64111-14J00-QGY

$995.65

2

SPACER,RR WHEEL BEARING

64731-14J00

$40.10

3

BEARING (25X52X15) | RH

09262-25061

$33.12

4

BEARING | LH

08123-60057

$29.00

5

.SEAL,OIL (32X52X7)

09285-32004

$7.98

6

DISC,RR BRAKE

69211-18G00

$319.08

7

BOLT (8X21)

09106-08160

$3.57

8

AXLE,RR

64711-14J00

$97.50

9

NUT

09159-22007

$19.20

10

WASHER (22X35X2)

09160-22081

$3.04

11

SPACER, AXLE RH

54751-41G10

$19.66

12

SPACER,RR AXLE,L

64751-44G00

$35.17

13

DRUM,RR SPROCKET

64610-47H00

$313.78

14

RETAINER, SPROCKET DRUM

64733-44G00

$29.15

15

BEARING (32X65X17) This part replaces 09262-32022.

09262-32024

$39.40

16

OIL SEAL (39X65X7)

09285-39001

$10.62

17

ABSORBER, HUB SHOCK

64651-47H10

$25.52

18

SPROCKET, REAR (NT:45)

64511-15J00

$144.77

19

NUT

08319-3110A

$2.73

20

TIRE, REAR

65110-15J00

$725.63

20

(180/55ZR17M/C, 73W BATTLAX

65110-15J00

$725.63

20

BT016R G BRIDGESTONE)

65110-15J00

$725.63

21

VALVE ASSY, WHEEL RIM (TR412)

43130-24A00

$8.85

22-1

BALANCER, WHEEL NO.1 | 10G

55411-22H00

$8.60

22-2

BALANCER, WHEEL NO.2 | 20G

55412-22H00

$10.07

22-3

BALANCER, WHEEL NO.3 | 30G

55413-22H00

$11.47

23

TAPE, RH (BLACK/ORANGE) | FOR YSF

68251-17K00-A29

$60.98

24

TAPE, LH (BLACK/ORANGE) | FOR YSF

68252-17K00-A29

$60.98
