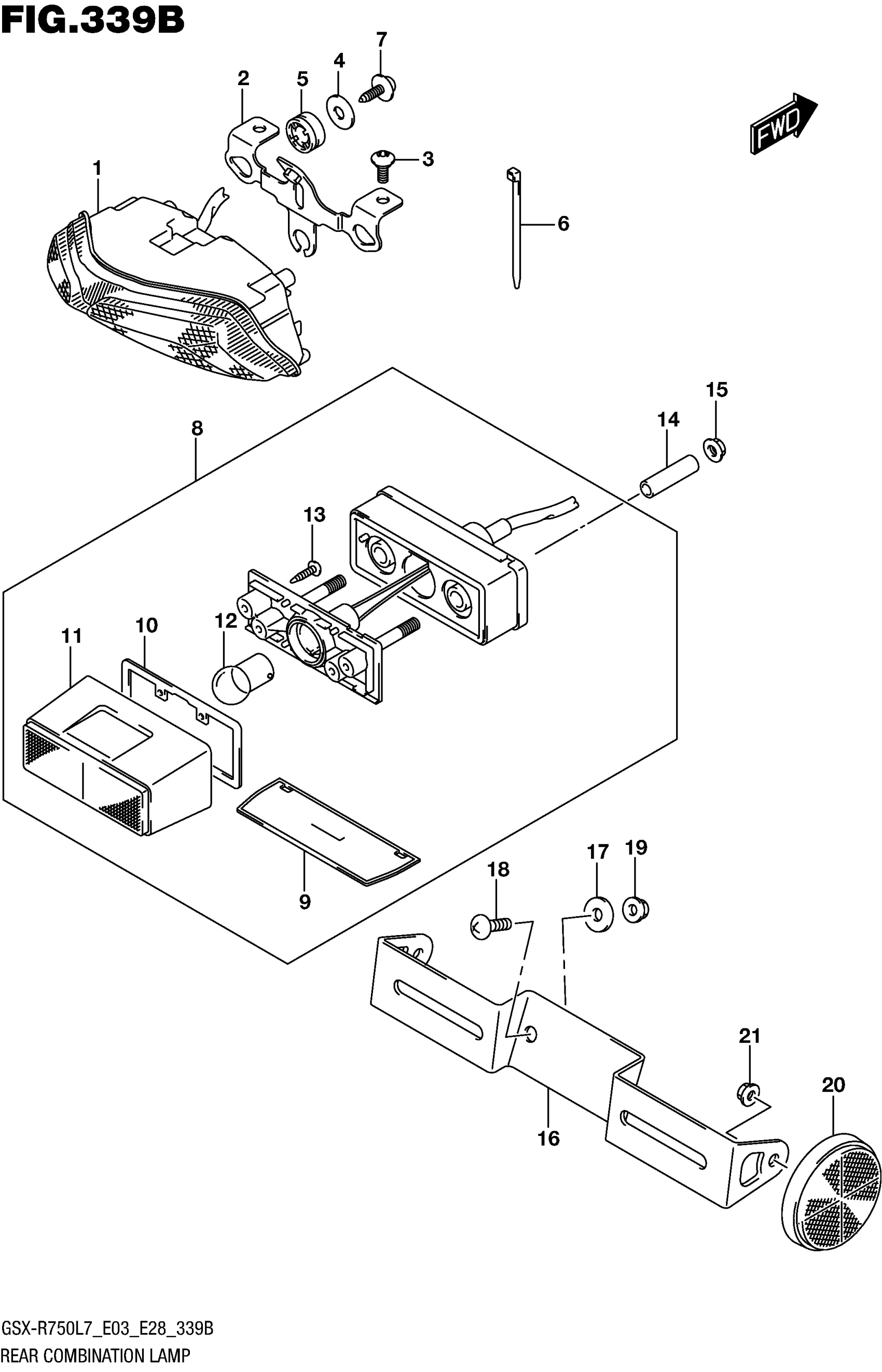

Suzuki GSX-R750L7 (2017) REAR COMBINATION LAMP (GSX-R750L7 E28) Diagram

#

Description
Price

1

LAMP ASSY,REAR COMB This part replaces 35710-14JA0.

35710-14JC0

$141.45

2

BRACKET, REAR COMBINATION LAM

35726-14J00

$20.03

3

BOLT (5X13)

09139-05074

$2.66

4

WASHER (5.5X20X1.2)

09160-05501

$1.94

5

CUSHION

09320-10049

$2.46

6

CLAMP (L:100)

09407-10404

$2.71

7

SCREW

03541-0516A

$1.41

8

LAMP ASSY,LICENSE

35910-41G32

$99.83

9

.LENS

35912-41G01

$14.98

10

.GASKET

35913-41G00

$16.07

11

.COVER

35917-41G00

$39.85

12

BULB (12V5W) This part replaces 09471-12140.

09471-12058

$2.19

13

.SCREW

03211-0416A

$1.48

14

SPACER (6.5X9X34)

09180-06356

$5.10

15

NUT

09159-06096

$3.42

16

BRACKET,LICENSE PLATE

35927-14J30

$17.72

17

WASHER (6.5X20X1.2)

09160-06077

$1.97

18

SCREW

02142-0616A

$1.41

19

NUT

08316-1006A

$2.25

20

REFLECTOR ASSY, RR SIDE

35970-14A20

$14.87

21

NUT

08316-1005A

$2.25
