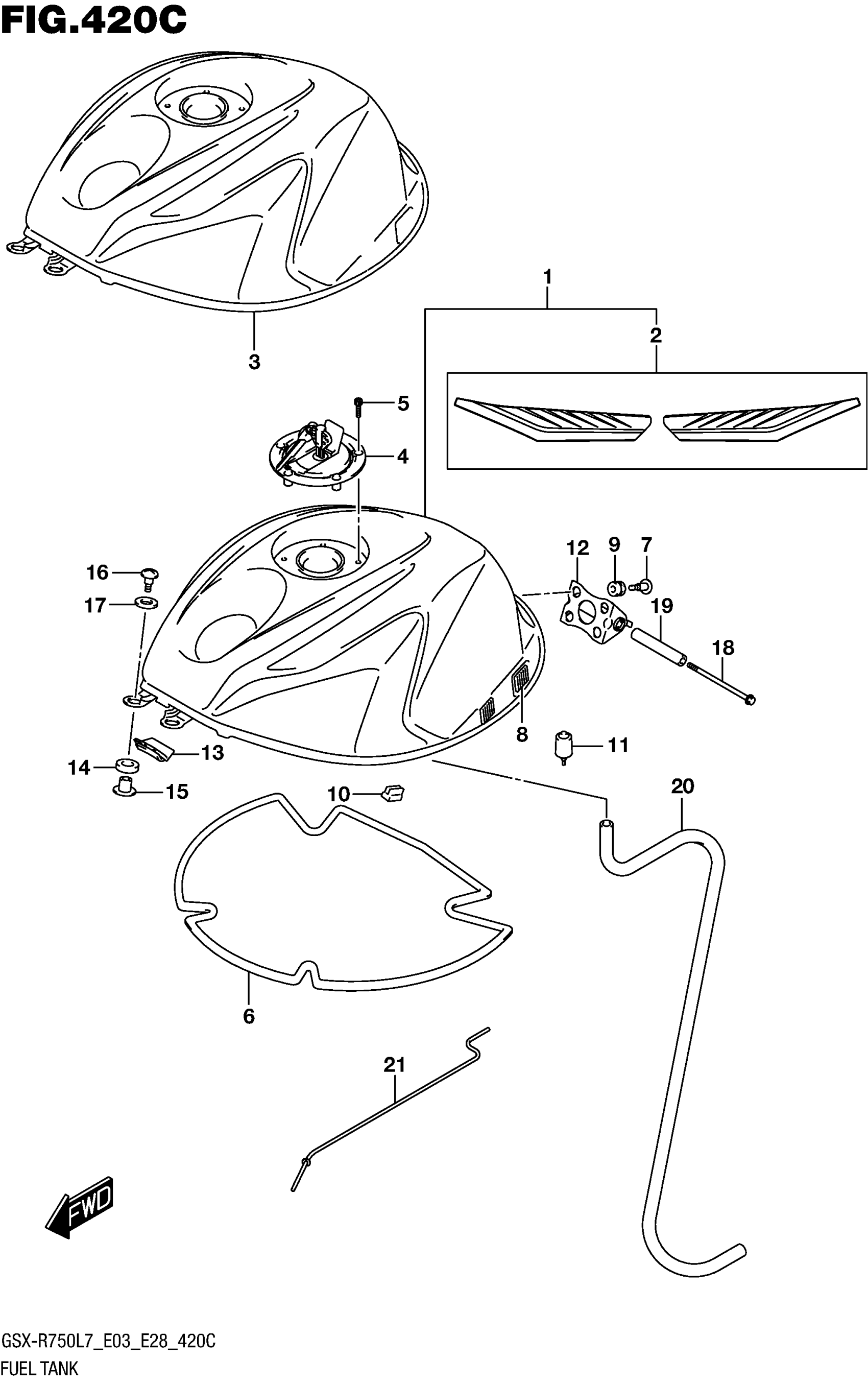

Suzuki GSX-R750L7 (2017) FUEL TANK (GSX-R750L7 E33) Diagram

#

Description
Price

1

TANK ASSY, FUEL (BLUE) | FOR YSF

44100-14JE0-YSF

Unavailable

2

.TAPE SET, FUEL TANK | FOR YSF

68110-14J10-BDH

$90.88

2

(BLUE/WHITE)

68110-14J10-BDH

$90.88

3-1

TANK ASSY, FUEL (WHITE) | FOR YWW

44100-14J52-YWW

Unavailable

3-2

TANK ASSY, FUEL (BLACK) | FOR KGK

44100-14J52-YVB

$1,637.35

4

CAP SET,FUEL TA This part replaces 44200-16870.

44200-16872

$172.96

5

BOLT, FUEL TANK FILLER CAP

44244-11J00

$3.93

6

SHIELD,FUEL TANK HEAT

44191-14J00

$104.63

7

SCREW, FUEL TANK REAR BRACKET

44543-14J00

$7.95

8

FASTENER, COVER

44572-13G00

$10.59

9

CUSHION

09320-08071

$3.16

10

CUSHION,FUEL TANK COVER This part replaces 44276-21H00.

44276-21H01

$5.71

11

CUSHION,FUEL TANK RR

44542-41G00

$7.36

12

BRACKET,FUEL TANK

44530-41G01

$45.77

13

RUBBER,FUEL TANK FR

44546-44H00

$15.07

14

CUSHION,FUEL TANK FRONT This part replaces 44511-16G00.

44511-16G01

$3.94

15

SPACER, TANK FRONT

44512-16G00

$7.11

16

SCREW (6X25)

09139-06192

$3.01

17

WASHER This part replaces 09160-06012.

09160-06054

$1.66

18

BOLT (6X110)

09106-06119

$5.36

19

SPACER, TANK REAR

44561-18G00

$16.22

20

HOSE,FUEL TANK WATER DRAIN This part replaces 44423-14J00.

44423-14J01

$23.47

21

STAY, FUEL TANK | OPT

44574-35F00

$14.51

22

COLOR :

SPECIAL NOTE

Unavailable

22

KGK=YMF(YELLOW),YVB(BLACK)

SPECIAL NOTE

Unavailable
