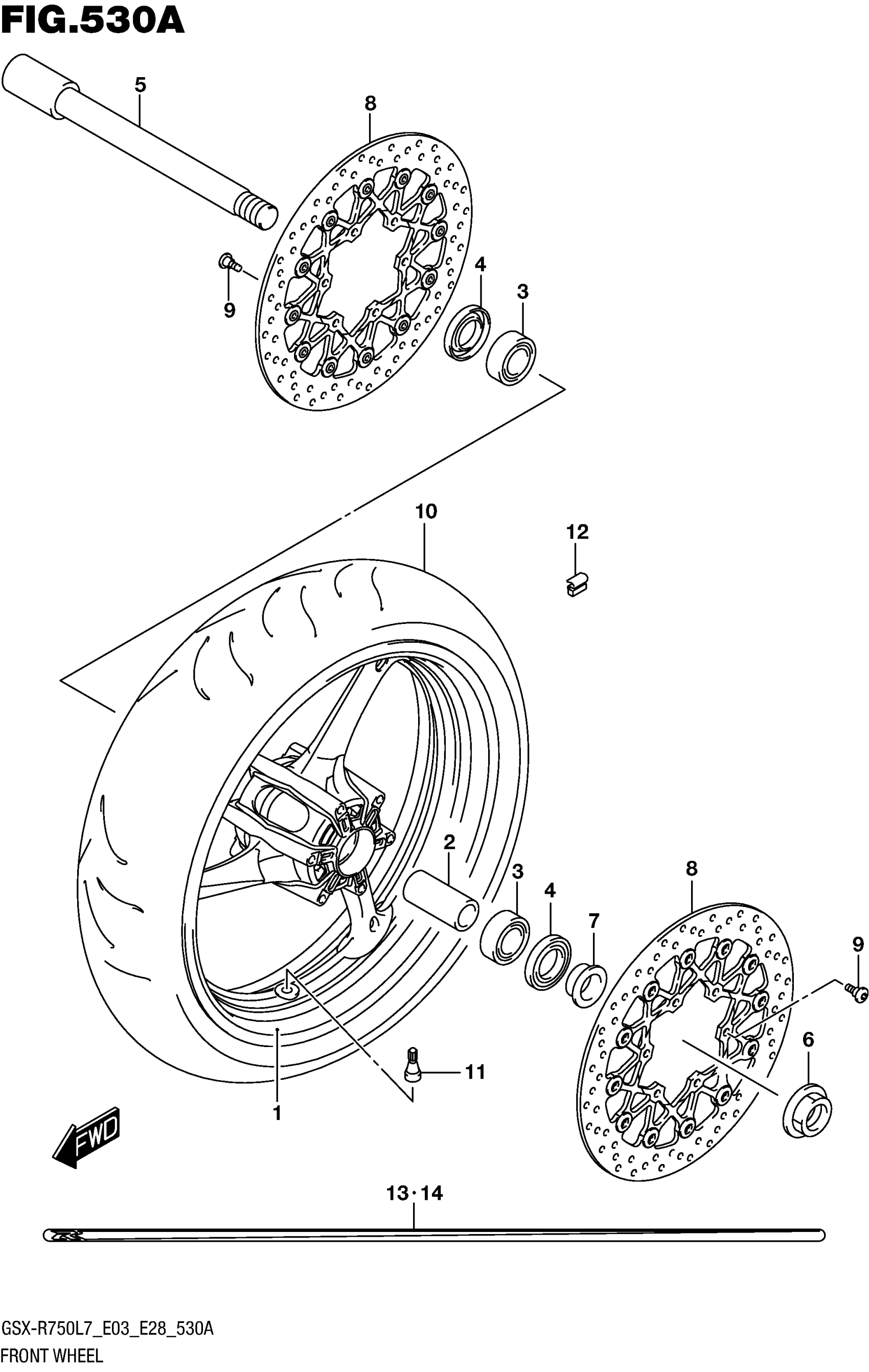

Suzuki GSX-R750L7 (2017) FRONT WHEEL Diagram

#

Description
Price

1-1

WHEEL, FRONT (17M/CXMT3.50) | FOR YSF,KGK

54111-14J00-019

$978.60

1-1

(BLACK)

54111-14J00-019

$978.60

1-2

WHEEL,FR (17M/CXMT3.50,RED) | FOR YWW

54111-14J00-QGY

$745.98

1-2

WHEEL,FR (17M/CXMT3.50,RED) | )

54111-14J00-QGY

$745.98

2

SPACER, HUB BEARING

54731-14J00

$21.58

3

BEARING This part replaces 09262-22035.

09262-22049

$43.81

4

SEAL,OIL This part replaces 09283-28016.

09283-28028

$9.13

5

AXLE,FR

54711-14J00

$143.18

6

NUT, AXLE

62994-47H00

$42.02

7

SPACER,FR AXLE,L

54751-14J00

$18.33

8

DISC,FR BRAKE

59210-37H01

$477.18

9

BOLT (6X21)

09106-06124

$3.42

10

TIRE, FRONT

55110-15J00

$509.50

10

(120/70ZR17M/C, 58W BATTLAX

55110-15J00

$509.50

10

BT016F G BRIDGESTONE)

55110-15J00

$509.50

11

VALVE ASSY, WHEEL RIM (TR412)

43130-24A00

$8.85

12-1

BALANCER, WHEEL NO.1 | 10G

55411-22H00

$8.60

12-2

BALANCER, WHEEL NO.2 | 20G

55412-22H00

$10.07

12-3

BALANCER, WHEEL NO.3 | 30G

55413-22H00

$11.47

13

TAPE, RH (BLACK/ORANGE) | FOR YSF

68251-17K00-A29

$60.98

14

TAPE, LH (BLACK/ORANGE) | FOR YSF

68252-17K00-A29

$60.98

15

COLOR :

SPECIAL NOTE

Unavailable

15

KGK=YMF(YELLOW),YVB(BLACK)

SPECIAL NOTE

Unavailable
