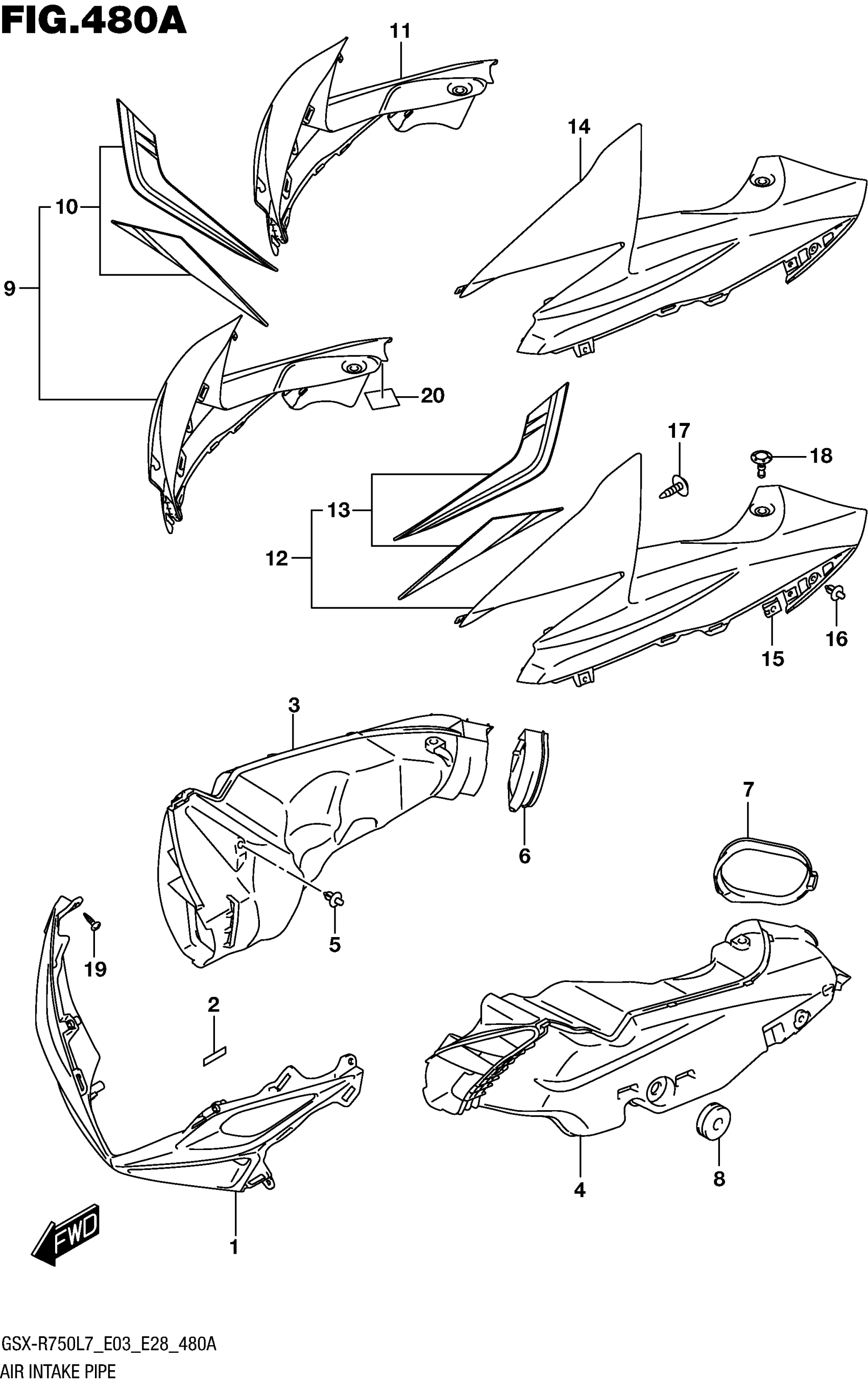

Suzuki GSX-R750L7 (2017) AIR INTAKE PIPE Diagram

#

Description
Price

1

COVER, INTAKE FRONT (BLACK)

94671-14J10-YKV

$223.68

2

TAPE

94443-06G00

$3.25

3

PIPE,AIR INTAKE,R

94420-14J10

$83.64

4

PIPE,AIR INTAKE,L

94430-14J10

$80.91

5

CLIP (BLACK)

09409-06314-5PK

$2.78

6

MOLDING,AIR INTAKE,R

94423-14J00

$14.34

7

MOLDING,AIR INTAKE,L

94433-14J00

$14.34

8

CUSHION

09320-08028

$3.04

9

COVER COMP,INTA | FOR YSF This part replaces 94670-14J20-YSF.

94670-14J21-YSF

$173.70

10

.TAPE, INTAKE COVER RH | FOR YSF

68270-14J10-BDH

$35.25

10

(BLUE/WHITE)

68270-14J10-BDH

$35.25

11-1

COVER,INTAKE,R | FOR YWW This part replaces 94672-14J00-YWW.

94672-14J01-YWW

$128.28

11-2

COVER,INTAKE,R | FOR KGK This part replaces 94672-14J00-YMF.

94672-14J01-YMF

$163.85

12

COVER COMP,INTA | FOR YSF This part replaces 94680-14J20-YSF.

94680-14J21-YSF

$154.60

13

.TAPE, INTAKE COVER LH | FOR YSF

68280-14J10-BDH

$35.25

13

(BLUE/WHITE)

68280-14J10-BDH

$35.25

14-1

COVER,INTAKE,L | FOR YWW This part replaces 94682-14J00-YWW.

94682-14J01-YWW

$132.63

14-2

COVER,INTAKE,L | FOR KGK This part replaces 94682-14J00-YMF.

94682-14J01-YMF

$173.70

15

NUT

09148-05052

$3.37

16

CLIP (BLACK)

09409-06314-5PK

$2.78

17

SCREW (5X12)

09132-05050

$1.92

18

CLIP, REAR

94479-35F00

$5.62

19

SCREW

03541-0512A

$1.49

20

PROTECTOR (30X80X1.0) This part replaces 33652-13E00.

33652-29F00

$3.03

21

COLOR :

SPECIAL NOTE

Unavailable

21

KGK=YMF(YELLOW),YVB(BLACK)

SPECIAL NOTE

Unavailable
