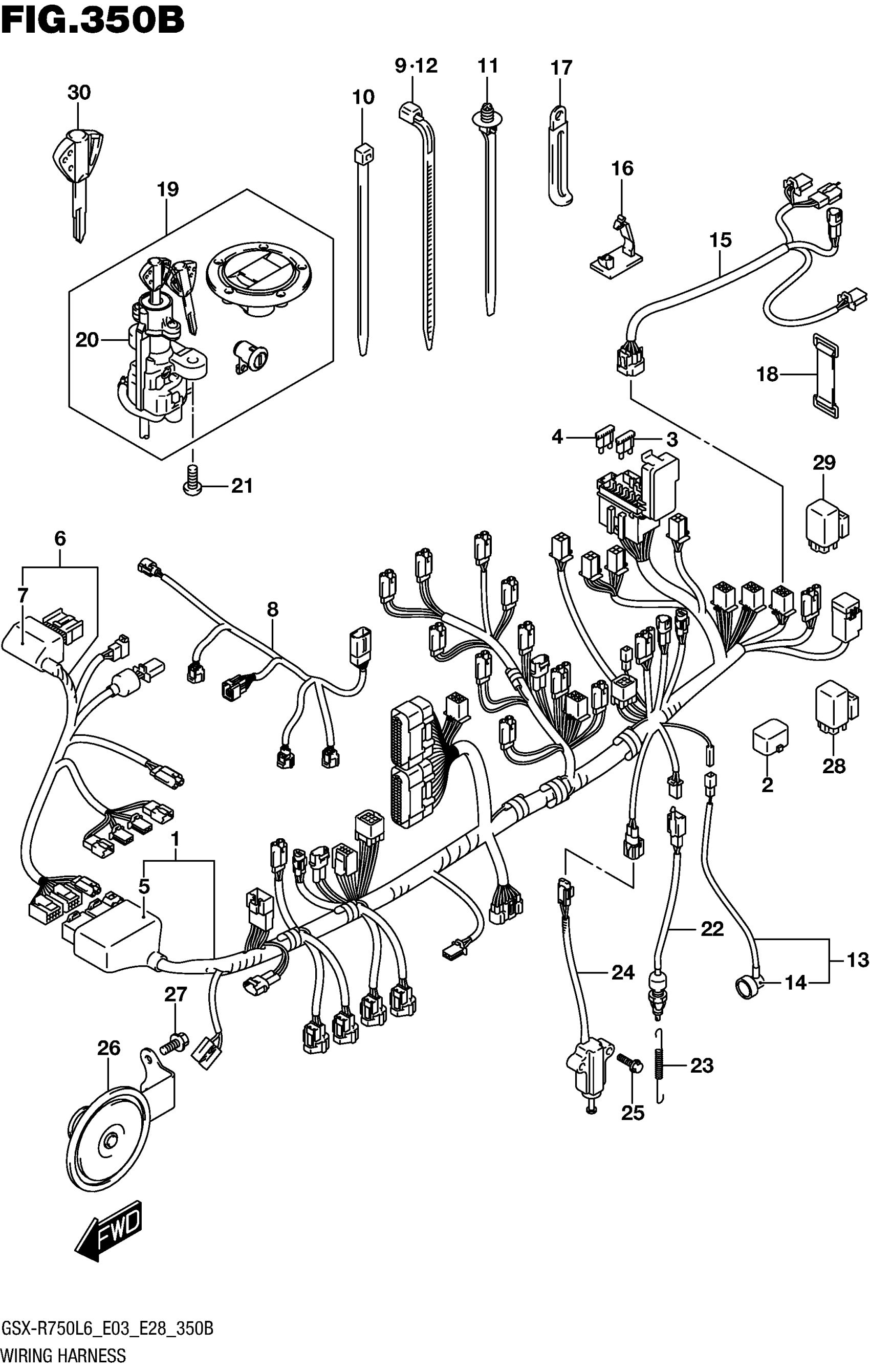

Suzuki GSX-R750L6 (2016) WIRING HARNESS (GSX-R750L6 E28) Diagram

#

Description
Price

1

HARNESS, WIRING NO.1

36610-14JC0

$1,078.78

2

CAP,TS This part replaces 36654-06J00.

36654-06J01

$13.85

3

.FUSE (10A)

09481-10501

$2.06

4

.FUSE (15A)

09481-15501

$2.02

5

.COVER, CONNECTOR

36618-18G00

Unavailable

6

HARNESS,WIRING NO.2 This part replaces 36620-14J10.

36620-14J11

$236.83

7

.COVER, CONNECTOR

36618-47H00

$22.23

8

HARNESS,WIRING NO.3 This part replaces 36630-14J10.

36630-14J11

$209.52

9

CLAMP (L:95)

09407-11401

$2.63

10

CLAMP (L:145)

09407-14407

$3.57

11

CLAMP (L:154)

09407-17403

$4.91

12

CLAMP (L:125)

09407-14403

$2.26

13

WIRE,OIL PRESSURE SWITCH LEAD

36851-14J01

$13.55

14

.CAP, OIL PRESSURE SWITCH

36618-31J00

Unavailable

15

WIRE,RR COMB LEAD This part replaces 36859-14J00.

36859-14J01

$54.98

16

CLAMP

09403-04310

$5.35

17

CLAMP (L:45)

09404-06429

$1.83

18

BAND

09462-00033

$3.20

19

LOCK SET This part replaces 37101-40821.

37101-40824

$277.69

20

.LOCK ASSY,STEERING This part replaces 37100-41G11.

37100-41G12

$228.06

21

BOLT (8X20)

09139-08016

$3.37

22

SWITCH ASSY,STOP LAMP

37740-14J00

$26.97

23

SPRING

09443-06087

$4.10

24

SWITCH ASSY,SIDE STAND This part replaces 37840-18J00.

37840-18J02

$52.92

25

BOLT

01550-0620A

$1.97

26

HORN ASSY

38500-14J00

$87.70

27

BOLT

01550-0616B

$2.48

28

RELAY ASSY, FAN MOTOR

38740-24X50

$45.20

29

RELAY ASSY, FUEL PUMP

38740-24X50

$45.20

30

KEY,BLANK (IMMOBI) | OPT

37146-41G00

$43.04
