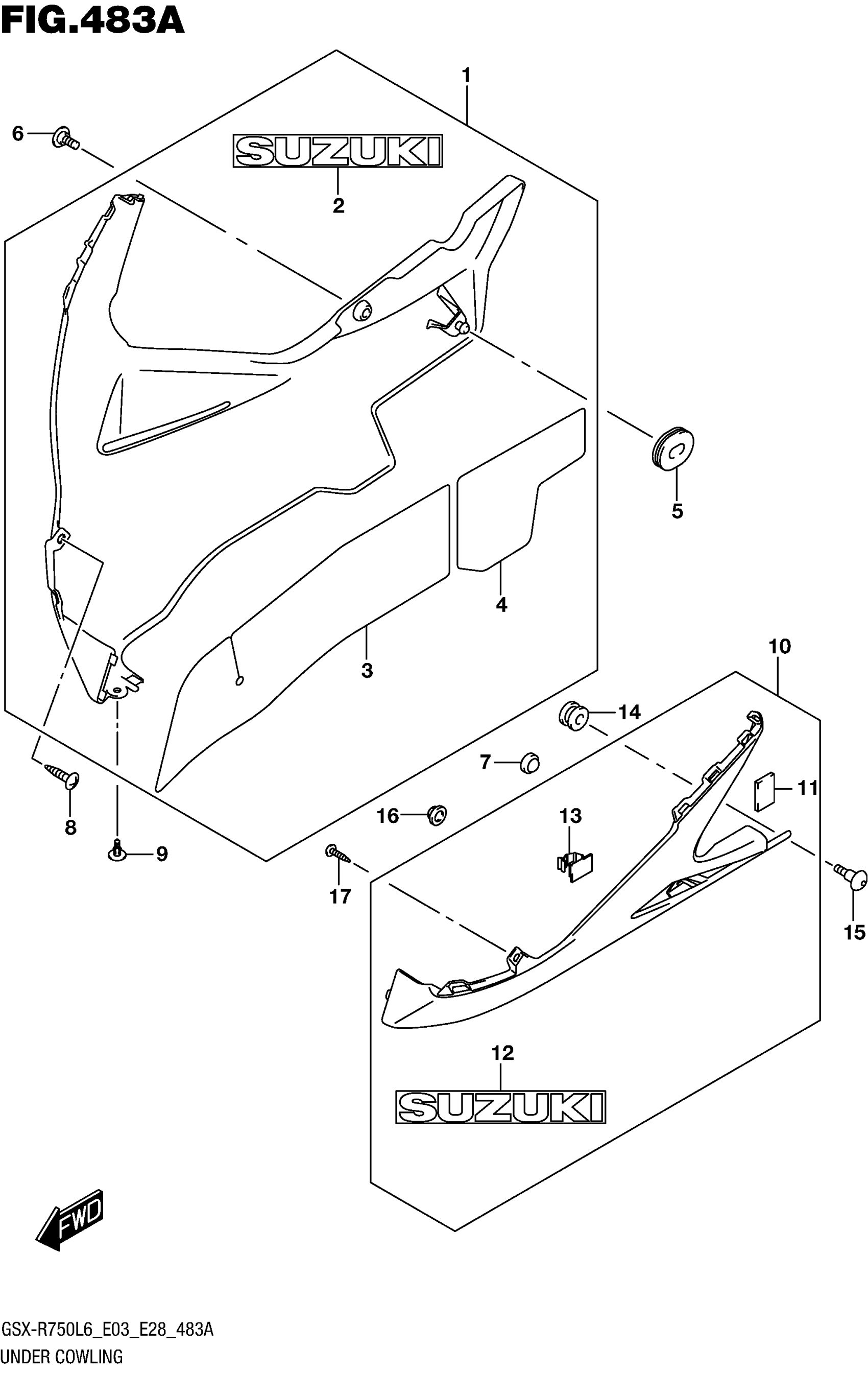

Suzuki GSX-R750L6 (2016) UNDER COWLING Diagram

#

Description
Price

1-1

COWLING, UNDER RH (RED) | FOR YSF

94470-14J00-BDX

$323.73

1-2

COWLING, UNDER RH (WHITE) | FOR AJP

94470-14J00-AHX

Unavailable

1-3

COWLING, UNDER RH (BLACK) | FOR KGL

94470-14J00-ACX

$323.73

2-1

.EMBLEM (WHITE) | FOR BDX

68181-33C20-YWW

$32.42

2-2

.EMBLEM (RED) | FOR AHX

68181-33C20-YVZ

$26.13

2-3

.EMBLEM (GRAY) | FOR ACX

68181-33C20-17U

$36.87

3

.SHIELD,UNDER COWL HEAT,R

94479-14J00

$18.62

4

.SHIELD,UNDER COWL HEAT,R

94479-14J10

$17.20

5

CUSHION | RH

94478-14J00

$5.42

6

SCREW,UNDER COWL,R (5X13) | RH

94476-14J00

$4.11

7

CUSHION

09321-10018

$4.19

8

SCREW

03541-0512A

$1.37

9

CLIP

94479-35F00

$5.14

10-1

COWLING,UNDER,L | FOR YSF This part replaces 94480-14J00-BDX.

94480-14J01-BDX

$315.62

10-2

COWLING, UNDER LH (WHITE) | FOR AJP

94480-14J00-AHX

Unavailable

10-3

COWLING,UNDER,L | FOR KGL This part replaces 94480-14J00-ACX.

94480-14J01-ACX

$305.08

11

.CUSHION,BRACKET NO.1 This part replaces 47161-10FA0.

47161-10FA1

$5.43

12-1

.EMBLEM (WHITE) | FOR BDX

68181-33C20-YWW

$32.42

12-2

.EMBLEM (RED) | FOR AHX

68181-33C20-YVZ

$26.13

12-3

.EMBLEM (GRAY) | FOR ACX

68181-33C20-17U

$36.87

13

.CLAMP

09403-14311

$4.88

14

CUSHION | LH

09320-09016

$1.97

15

BOLT (6X20) | LH

09139-06190

$3.77

16

CUSHION

09321-10018

$4.19

17

SCREW

03541-0512A

$1.37

18

COLOR :

SPECIAL NOTE

Unavailable

18

AJP=YKY(BLUE),YWW(WHITE)

SPECIAL NOTE

Unavailable

18

: KGL=YKV(BLACK),YVB(BLACK)

SPECIAL NOTE

Unavailable
