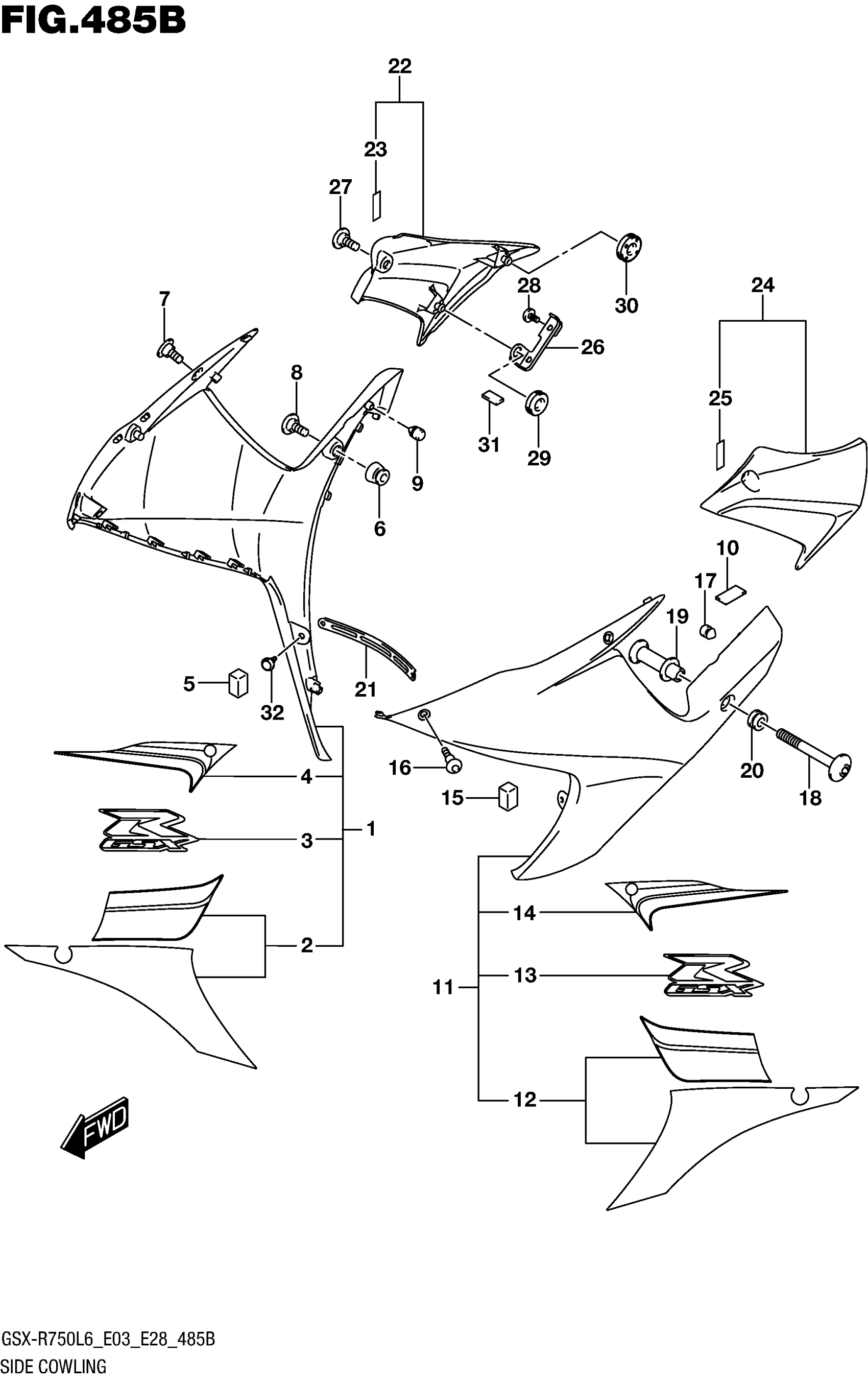

Suzuki GSX-R750L6 (2016) SIDE COWLING (AJP) Diagram

#

Description
Price

1

COWLING, SIDE RH (WHITE) | FOR AJP

94450-14J70-YWW

Unavailable

2

.TAPE SET, SIDE COWLING RH | FOR YWW

68680-14J20-BAG

Unavailable

3

.EMBLEM "GSXR" RH | FOR YWW

68681-15J10-AG9

$34.93

4

.TAPE, SIDE COWLING RH | FOR YWW

68685-14J50-BAG

Unavailable

5

CUSHION,SIDE COWL FR

94477-14J01

$11.82

6

CUSHION, SIDE COWLING RH

94479-15H00

$4.22

7

SCREW (5X13)

09139-05064

$2.56

8

BOLT (6X20)

09139-06190

$3.77

9

CUSHION This part replaces 09321-06013.

09321-06036

$1.52

10

PROTECTOR, SIDE COWLING LH | CUT AS REQUIRED

44543-10G00

$5.23

11

COWLING, SIDE LH (WHITE) | FOR AJP

94460-14J70-YWW

Unavailable

12

.TAPE SET, SIDE COWLING LH | FOR YWW

68690-14J20-BAG

$64.05

13

.EMBLEM "GSXR" LH | FOR YWW

68691-15J10-AG9

$34.93

14

.TAPE, SIDE COWLING LH | FOR YWW

68695-14J50-BAG

$31.38

15

CUSHION,SIDE COWL FR

94477-14J01

$11.82

16

SCREW (5X13)

09139-05064

$2.56

17

CUSHION This part replaces 09321-06013.

09321-06036

$1.52

18

SCREW,SIDE COWL,L

94488-14J00

$3.38

19

SPACER,SIDE COWL,L

94489-14J00

$10.26

20

CUSHION | LH

09320-09016

$1.97

21

PLATE,UNDER COWL CTR

94498-14J00

$16.06

22

COVER,SIDE COWLING,R

94570-14J00

$17.28

23

.TAPE (6X25X0.13)

94443-06G00

$2.97

24

COVER,SIDE COWLING,L

94580-14J00

$17.28

25

.TAPE (6X25X0.13)

94443-06G00

$2.97

26

BRACKET,COVER SIDE,R

94491-14J00

$11.28

27

SCREW (5X13)

09139-05064

$2.56

28

SCREW (6X12)

09139-06062

$3.30

29

CUSHION (8X22X7) This part replaces 09320-08013.

09320-08509

$1.91

30

CUSHION

09320-08028

$2.80

31

CUSHION, BRACKET COVER RH

94612-31F00

$5.62

32

CLIP, UNDER CTR

94479-35F00

$5.14

33

COLOR :

SPECIAL NOTE

Unavailable

33

AJP=YKY(BLUE),YWW(WHITE)

SPECIAL NOTE

Unavailable
