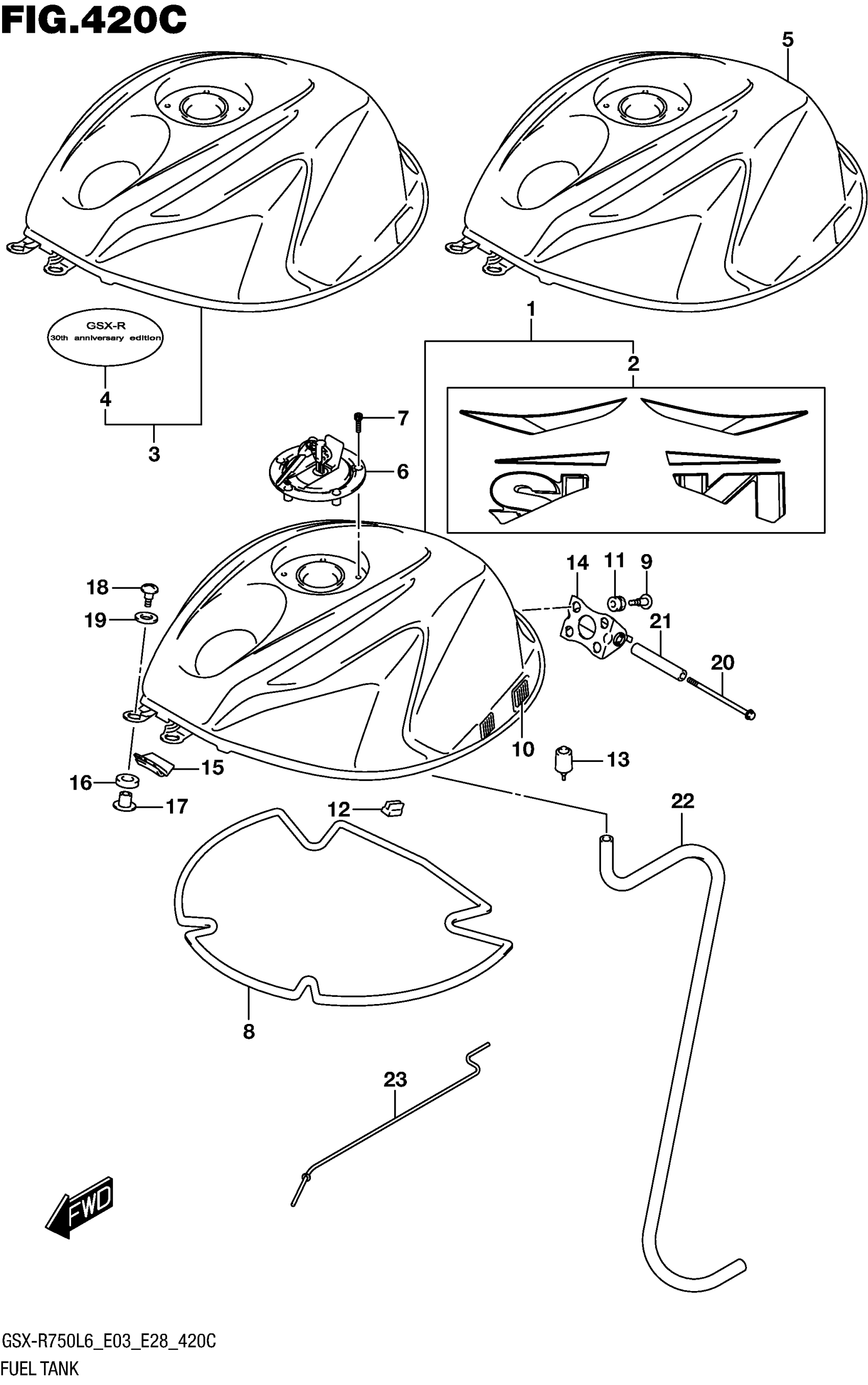

Suzuki GSX-R750L6 (2016) FUEL TANK (GSX-R750L6 E33) Diagram

#

Description
Price

1

TANK ASSY, FUEL (BLUE) | FOR YSF

44100-14J80-YSF

Unavailable

2

.TAPE SET, FUEL TANK | FOR YSF

68110-14J00-A3E

$178.42

3

TANK ASSY, FUEL (BLUE) | FOR AJP

44100-14JB0-YKY

Unavailable

4

.EMBLEM, FUEL TANK | FOR YKY

68121-47H10-QES

Unavailable

5

TANK ASSY, FUEL (BLACK) | FOR KGL

44100-14J52-YVB

$1,499.68

6

CAP SET,FUEL TA This part replaces 44200-16870.

44200-16872

$155.42

7

BOLT, FUEL TANK FILLER CAP

44244-11J00

$4.00

8

SHIELD,FUEL TANK HEAT

44191-14J00

$92.70

9

SCREW, FUEL TANK REAR BRACKET

44543-14J00

$7.05

10

FASTENER, COVER

44572-13G00

$11.07

11

CUSHION

09320-08071

$3.25

12

CUSHION,FUEL TANK COVER This part replaces 44276-21H00.

44276-21H01

$5.80

13

CUSHION,FUEL TANK RR

44542-41G00

$7.69

14

BRACKET,FUEL TANK

44530-41G01

$40.55

15

RUBBER,FUEL TANK FR

44546-44H00

$13.35

16

CUSHION,FUEL TANK FRONT This part replaces 44511-16G00.

44511-16G01

$4.11

17

SPACER, TANK FRONT

44512-16G00

$7.44

18

SCREW (6X25)

09139-06192

$3.23

19

WASHER This part replaces 09160-06012.

09160-06054

$1.62

20

BOLT (6X110)

09106-06119

$5.76

21

SPACER, TANK REAR

44561-18G00

$16.96

22

HOSE,FUEL TANK WATER DRAIN This part replaces 44423-14J00.

44423-14J01

$20.78

23

STAY, FUEL TANK | OPT

44574-35F00

$15.16

24

COLOR :

SPECIAL NOTE

Unavailable

24

AJP=YKY(BLUE),YWW(WHITE)

SPECIAL NOTE

Unavailable

24

: KGL=YKV(BLACK),YVB(BLACK)

SPECIAL NOTE

Unavailable
