Partiron

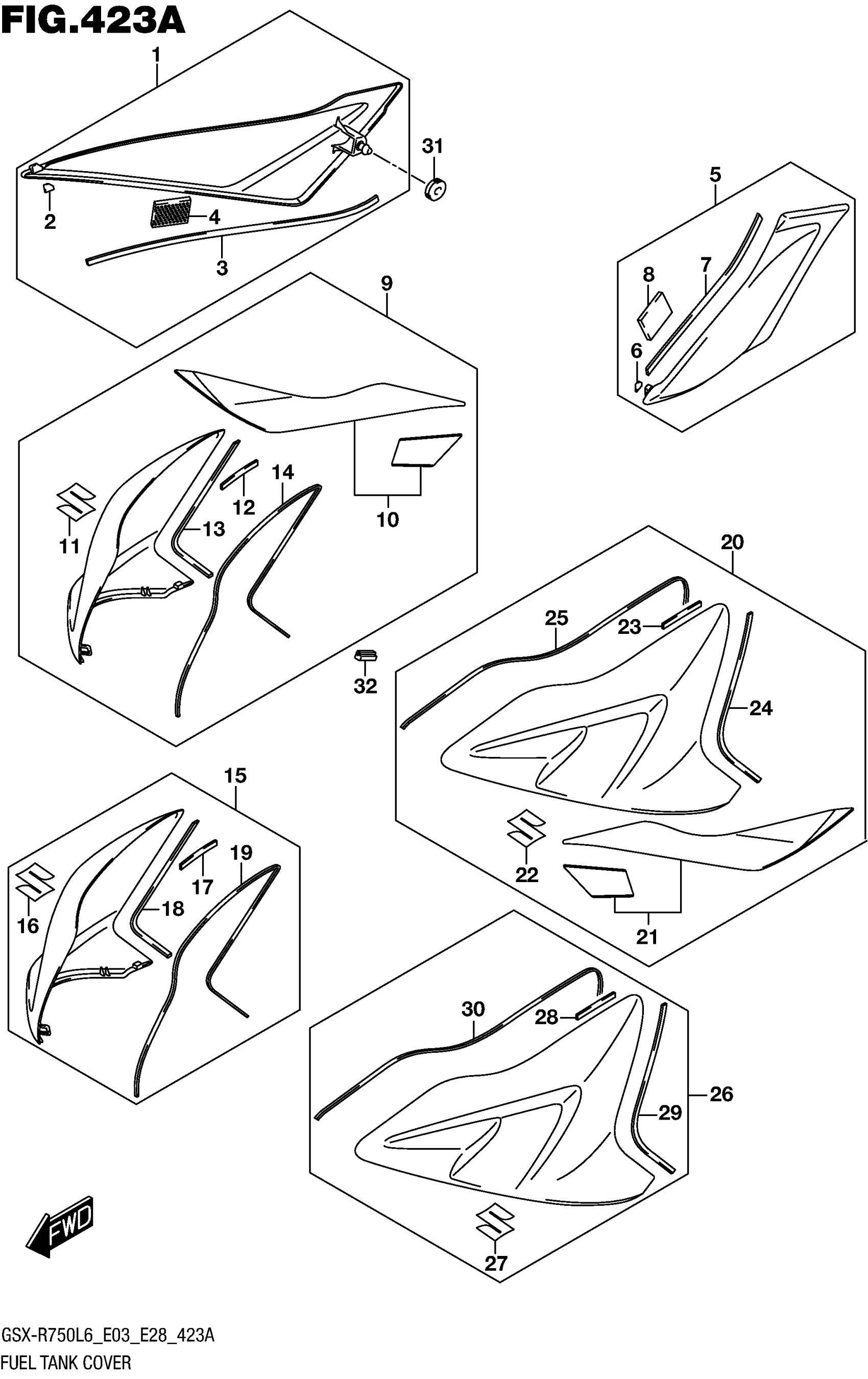

Suzuki GSX-R750L6 (2016) FUEL TANK COVER Diagram

#

Description
Price

1

COVER,FUEL TANK SIDE,R

44170-14J00

$37.39

2

.CUSHION, FUEL TANK COVER

44172-14J00

$10.42

3

CUSHION,FUEL TANK SIDE COVER

44278-14J00

$6.15

4

.FASTENER, COVER

44572-02F01

$10.13

5

COVER,FUEL TANK SIDE,L

44180-14J00

$37.39

6

.CUSHION, FUEL TANK COVER

44172-14J00

$10.42

7

CUSHION,FUEL TANK SIDE COVER

44278-14J00

$6.15

8

.FASTENER, COVER

44572-02F01

$10.13

9

COVER, TANK FRONT RH (BLUE) | FOR YSF

44270-14J30-YSF

$194.53

10

.TAPE SET, FUEL TANK COVER RH | FOR YSF

68120-14J00-A3F

$42.30

11

.EMBLEM "S"

68111-47HA0

$37.02

12

.CUSHION, FUEL TANK COVER NO.

44273-14J00

$13.52

13

.CUSHION,FUEL TANK COVER,R NO

44274-14J00

$17.16

14

.CUSHION, FUEL TANK COVER FR

44277-14J00

$4.91

15-1

COVER, TANK FRONT RH (BLUE) | FOR AJP

44270-14J20-YKY

Unavailable

15-2

COVER, TANK FRONT RH (BLACK) | FOR KGL

44270-14J20-YKV

$168.62

16

.EMBLEM "S"

68111-47HA0

$37.02

17

.CUSHION, FUEL TANK COVER NO.

44273-14J00

$13.52

18

.CUSHION,FUEL TANK COVER,R NO

44274-14J00

$17.16

19

.CUSHION, FUEL TANK COVER FR

44277-14J00

$4.91

20

COVER, TANK FRONT LH (BLUE) | FOR YSF

44280-14J30-YSF

$194.53

21

.TAPE SET, FUEL TANK COVER LH | FOR YSF

68130-14J00-A3F

$42.30

22

.EMBLEM "S"

68111-47HA0

$37.02

23

.CUSHION, FUEL TANK COVER NO.

44273-14J00

$13.52

24

.CUSHION,FUEL TANK COVER,L NO

44284-14J00

$17.16

25

.CUSHION, FUEL TANK COVER FR

44277-14J00

$4.91

26-1

COVER, TANK FRONT LH (BLUE) | FOR AJP

44280-14J20-YKY

Unavailable

26-2

COVER, TANK FRONT LH (BLACK) | FOR KGL

44280-14J20-YKV

$168.62

27

.EMBLEM "S"

68111-47HA0

$37.02

28

.CUSHION, FUEL TANK COVER NO.

44273-14J00

$13.52

29

.CUSHION,FUEL TANK COVER,L NO

44284-14J00

$17.16

30

.CUSHION, FUEL TANK COVER FR

44277-14J00

$4.91

31

CUSHION, SIDE

44173-14J00

$3.92

32

CUSHION,FUEL TANK COVER FR This part replaces 44177-14J01.

44177-14J02

$2.80

33

COLOR :

SPECIAL NOTE

Unavailable

33

AJP=YKY(BLUE),YWW(WHITE)

SPECIAL NOTE

Unavailable

33

: KGL=YKV(BLACK),YVB(BLACK)

SPECIAL NOTE

Unavailable
