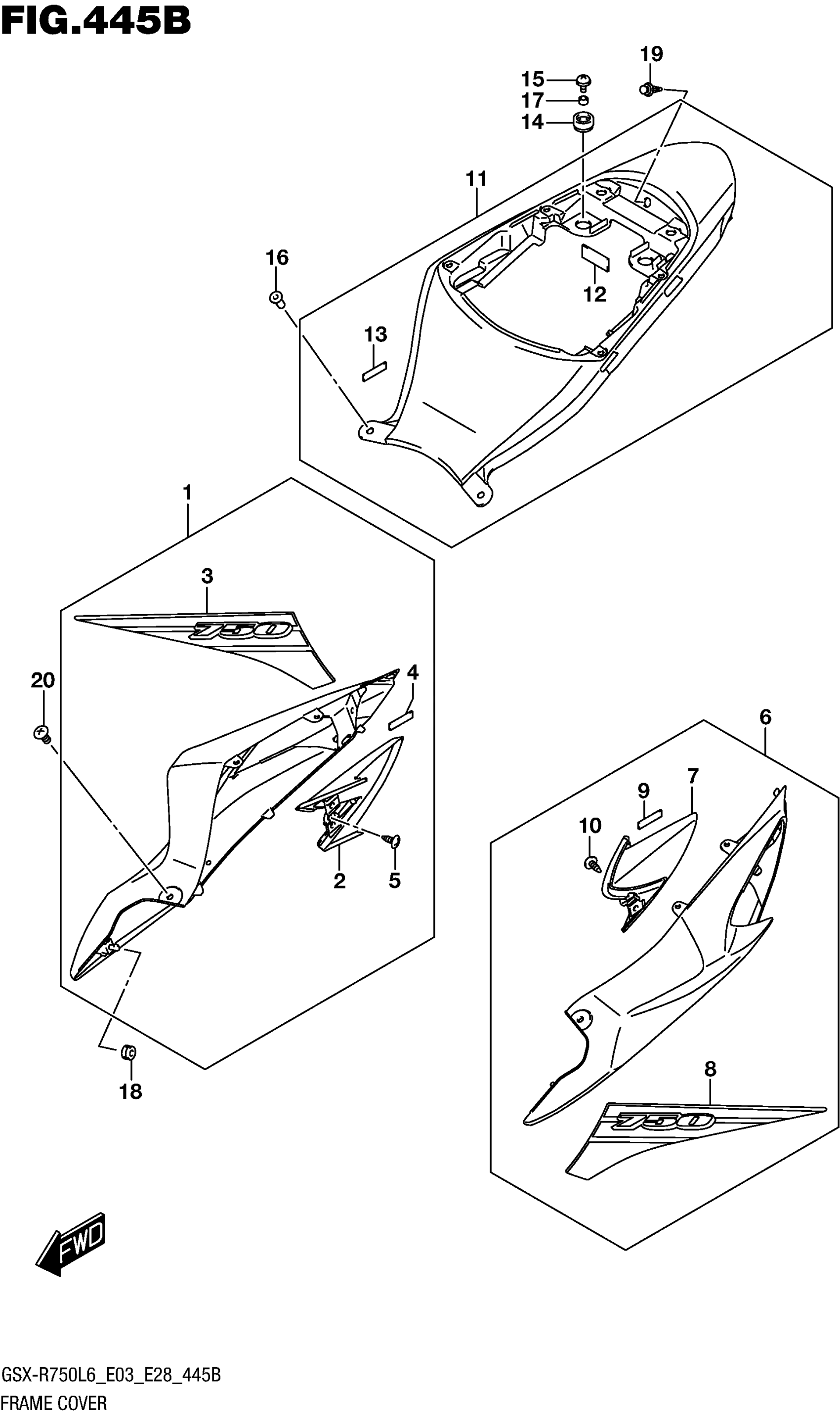

Suzuki GSX-R750L6 (2016) FRAME COVER (AJP) Diagram

#

Description
Price

1

COVER, FRAME RH (WHITE) | FOR AJP

47100-15J30-YWW

Unavailable

2

COVER,FRAME RR,R

47611-14J00

$18.97

3

.TAPE, FRAME COVER RH | FOR YWW

68135-15J20-BAL

$21.65

4

.TAPE (6X25X0.13)

94443-06G00

$3.25

5

.SCREW

03541-0512A

$1.49

6

COVER, FRAME LH (WHITE) | FOR AJP

47200-15J30-YWW

Unavailable

7

COVER,FRAME RR,L

47621-14J00

$19.07

8

.TAPE, FRAME COVER LH | FOR YWW

68145-15J20-BAL

$21.65

9

.TAPE (6X25X0.13)

94443-06G00

$3.25

10

.SCREW

03541-0512A

$1.49

11

COVER ASSY,FRAME CTR This part replaces 47300-14J00.

47300-14J10

$97.78

12

.CUSHION

48128-14FA0

$6.47

13

.TAPE

94443-06G00

$3.25

14

CUSHION (10X24X13) This part replaces 47312-37H00.

47312-37H10

$2.91

15

SCREW (6X16)

09136-06056

$2.19

16

NUT

09159-05019

$7.14

17

SPACER (6.5X10X7)

09180-06283

$1.91

18

CUSHION

09320-06504

$4.96

19

CLIP (BLACK)

09409-06314-5PK

$2.78

20

SCREW

02142-1520B

$2.28

21

COLOR :

SPECIAL NOTE

Unavailable

21

AJP=YKY(BLUE),YWW(WHITE)

SPECIAL NOTE

Unavailable
