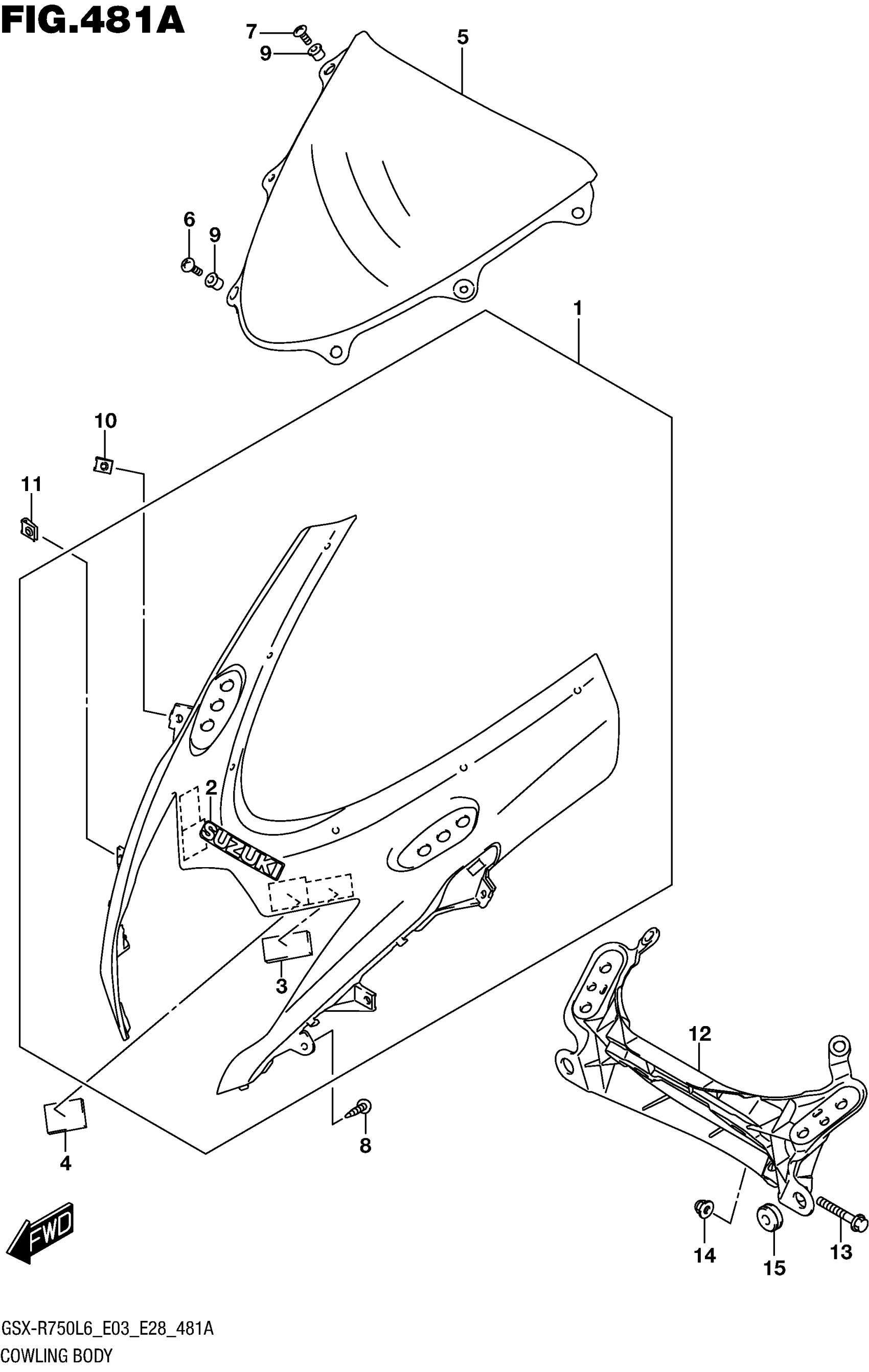

Suzuki GSX-R750L6 (2016) COWLING BODY Diagram

#

Description
Price

1-1

COWLING,BODY | FOR YSF This part replaces 94410-14J10-6CX.

94410-14J12-6CX

$176.55

1-2

COWLING,BODY | FOR AJP This part replaces 94410-14J10-YKY.

94410-14J11-YKY

$280.22

1-3

COWLING,BODY | FOR KGL This part replaces 94410-14J10-YVB.

94410-14J12-YVB

$161.15

2-1

.EMBLEM,"SUZUKI" (WHITE) | FOR 6CX This part replaces 68641-19F00-YWW.

68641-19F01-YWW

$13.25

2-2

EMBLEM,"SUZUKI" | FOR YKY,YVB This part replaces 68641-19F00-17U.

68641-19F01-17U

$10.03

3

.CUSHION

92146-14J00

$4.60

4

FASTENER

44572-02F01

$10.13

5

WINDSCREEN

94611-14J00

$97.43

6

SCREW (5X18)

09125-05133

$2.20

7

SCREW (5X15)

09125-05134

$2.27

8

SCREW

03541-0516A

$1.37

9

NUT

09159-05019

$6.44

10

NUT

09148-05052

$3.04

11

NUT (M5)

09148-05047

$2.02

12

BRACE,COWLING

94511-14J00

$255.27

13

BOLT (8X45)

09103-08207

$2.59

14

NUT

08313-2008A

$2.50

15

CUSHION (8.5X23X9.5) This part replaces 09320-08047.

09320-08518

$2.62

16

COLOR :

SPECIAL NOTE

Unavailable

16

AJP=YKY(BLUE),YWW(WHITE)

SPECIAL NOTE

Unavailable

16

: KGL=YKV(BLACK),YVB(BLACK)

SPECIAL NOTE

Unavailable
