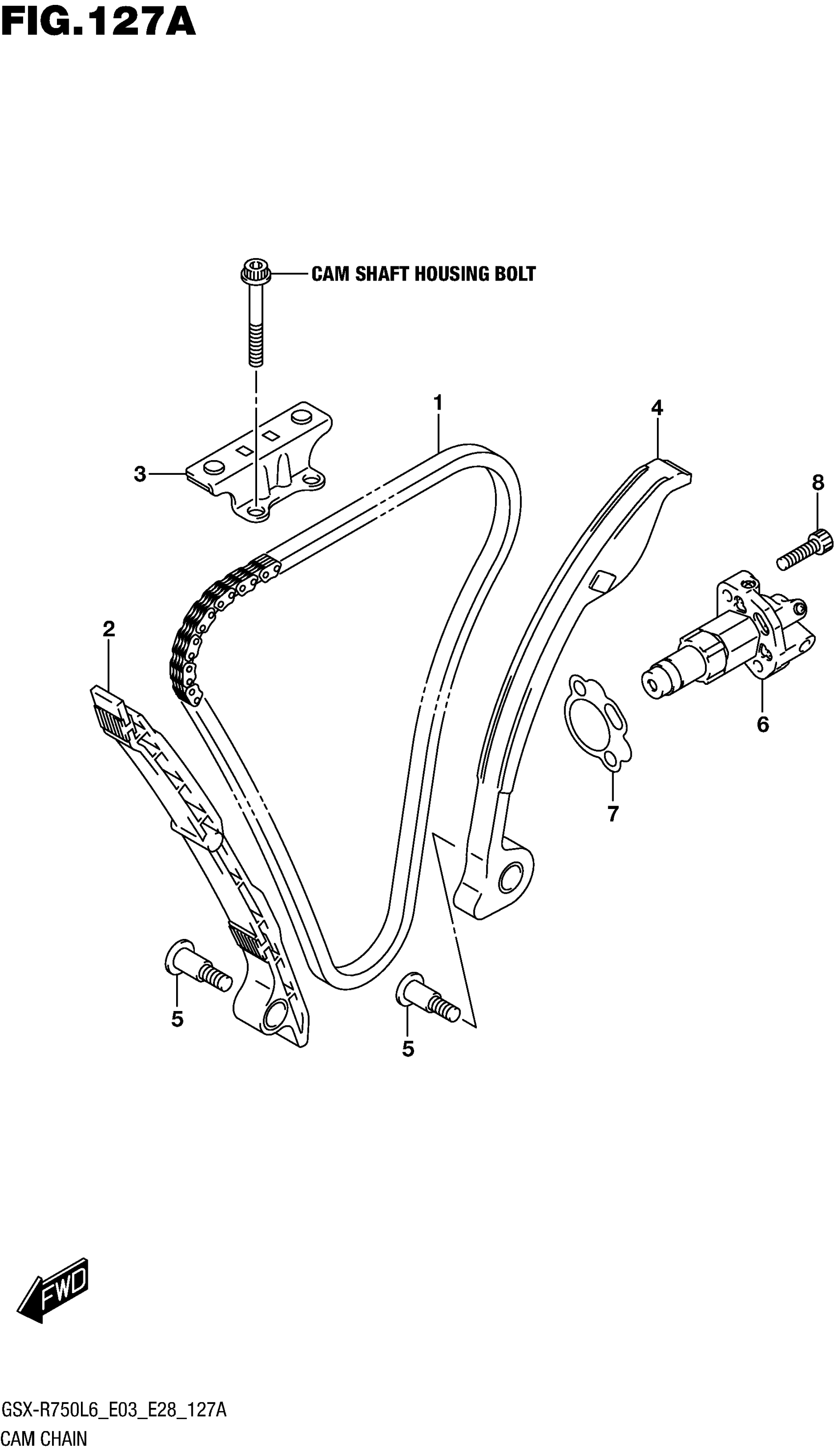

Suzuki GSX-R750L6 (2016) CAM CHAIN Diagram

#

Description

Price

1

CHAIN,CAMSHAFT DRIVE

12760-39F00

$142.65

2

GUIDE,CAM CHAIN NO.1 This part replaces 12771-37H00.

12771-37H01

$25.83

3

GUIDE,CAM CHAIN NO.2

12782-29G00

$30.87

4

TENSIONER,CAM CHAIN This part replaces 12811-02H00.

12811-02H01

$50.80

5

BOLT

12812-31G00

$4.58

6

ADJUSTER ASSY,TENSIONER

12830-37H00

$262.45

7

GASKET, TENSIONER ADJUSTER

12837-02H00

$6.46

8

BOLT (6X25)

07130-0625A

$2.62
